wedge wire screen manufactory for paper machine

More Views

wedge wire screen manufactory for paper machinewedge wire screen manufactory for paper machinewedge wire screen manufactory for paper machine

wedge wire screen manufactory for paper machine

Category:Wedge Wire Application
Material:stainless steel
Properties:wedge wire
Application:water. oil, liquid filtration, industry filtration,

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen manufactory for paper machine

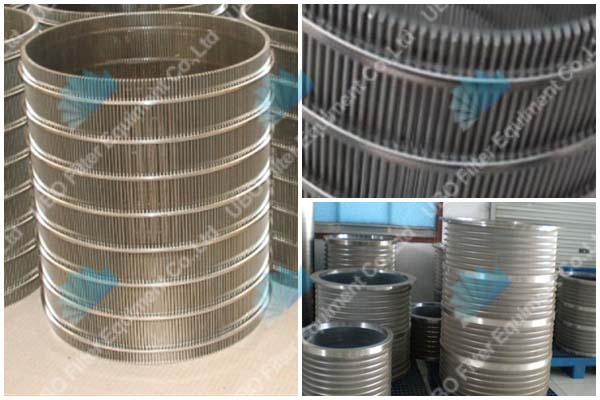

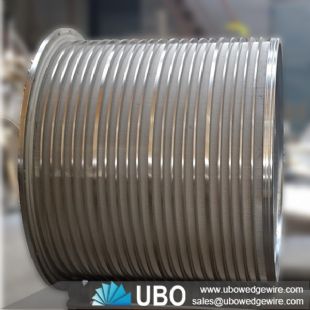

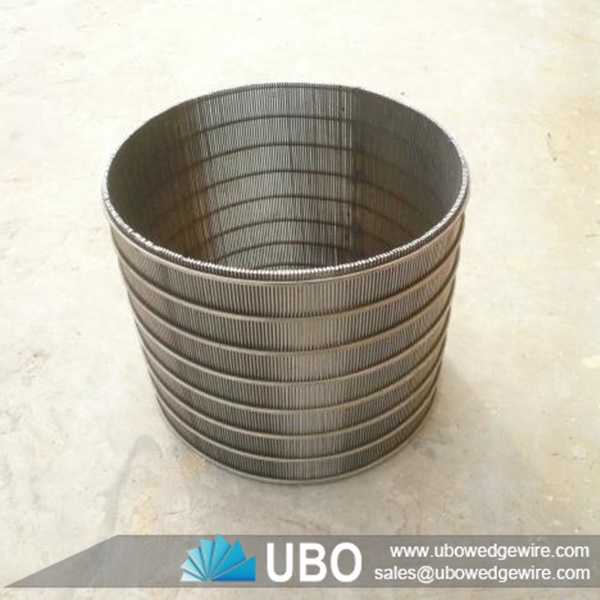

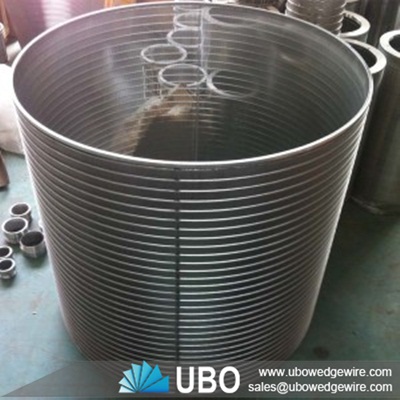

The wedge wire screen pressure screen basket is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding,easily fit for pulp and paper industries for water clarification, cleaning, dewatering, pulp screening and fractionation, and other liquid/solid separation etc.

Advantages of wedge wire screen manufactory for paper machine

1) A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone

2) A V-shaped profile wire which avoids clogging and ensures an uninterrupted flow.

3) A uniform and efficient well development due to the continuous slot opening.

4) Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

5) Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Applications of wedge wire screen manufactory for paper machine

wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,many other liquids, solids separation applications.

wedge wire screen manufactory for paper machine

Specifications of wedge wire screen manufactory for paper machine:

wedge wire screen manufactory for paper machine



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
