Quality Wedge Wire Screen Manufacturer in China

wedge wire screen lauter tun screen for Water Intake

More Views

wedge wire screen lauter tun screen for Water Intakewedge wire screen lauter tun screen for Water Intakewedge wire screen lauter tun screen for Water Intake

wedge wire screen lauter tun screen for Water Intake

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen lauter tun screen for Water Intake

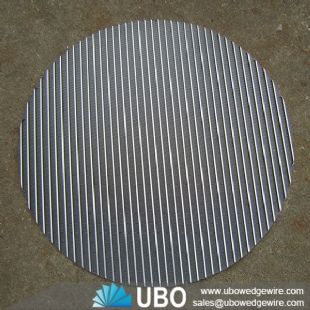

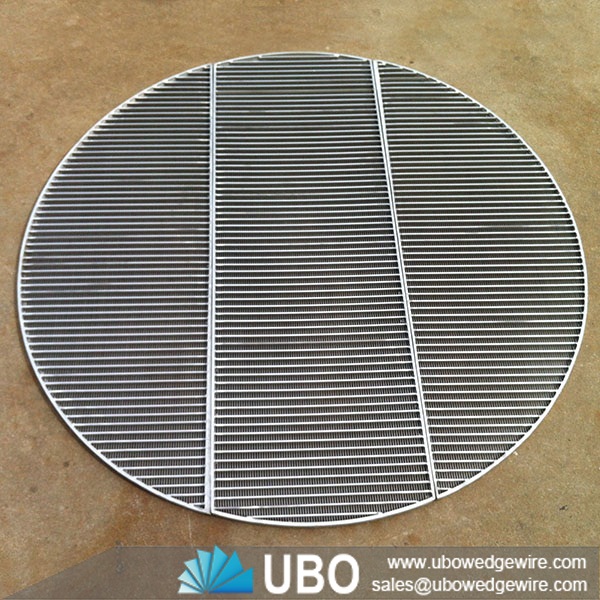

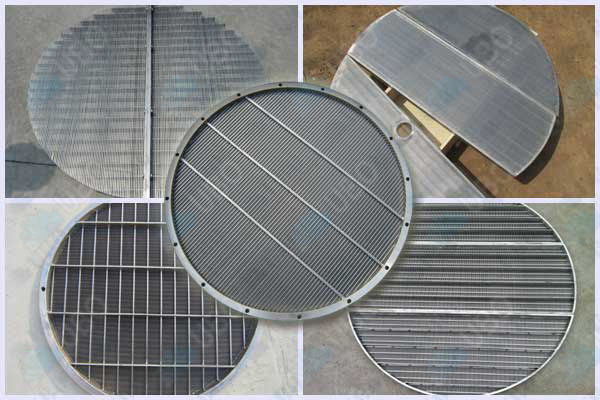

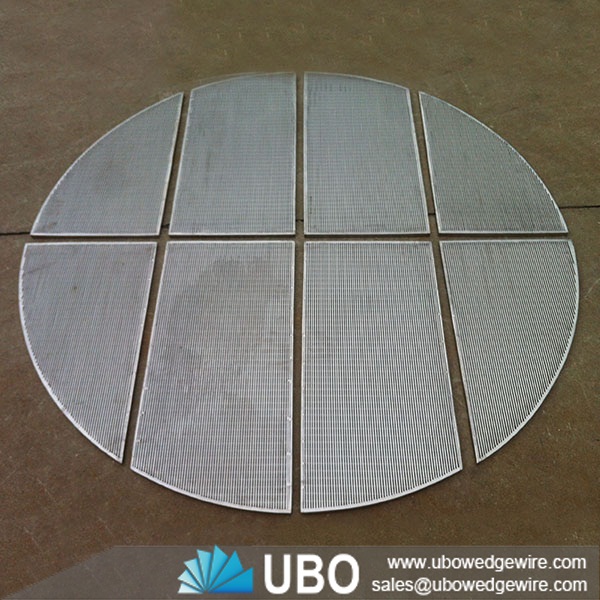

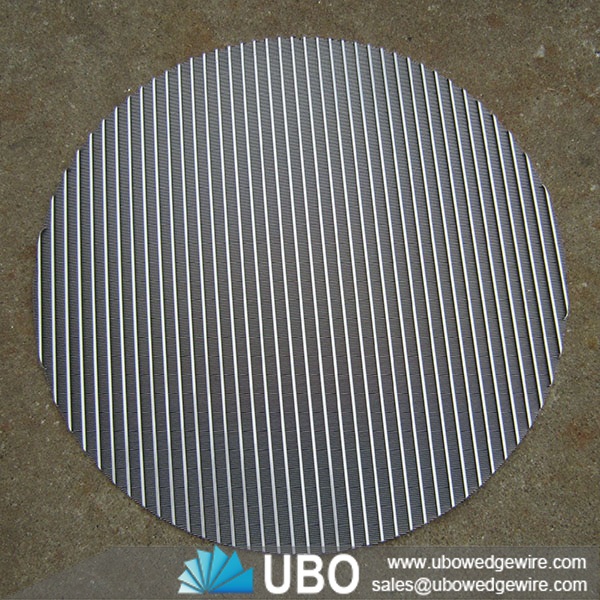

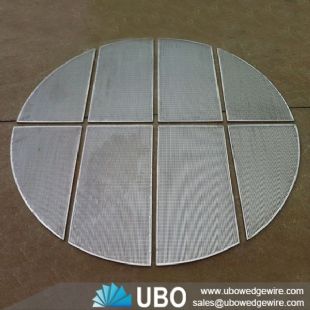

    A wedge wire support grid provides a false bottom in a lauter tun in many breweries. The lauter tun screen sits on a ledge that is positioned on the inside diameter of the tank. It may also be necessary to have support beams depending on loading and tank diameter.

wedge wire screen lauter tun screen for Water Intake

Application for wedge wire screen lauter tun screen for Water Intake:

1.) widely used in vairous kinds of medium filtering
2.) as the fitting using in the water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3.) the petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4.) the organic solution recycling filter

Characteristic for wedge wire screen lauter tun screen for Water Intake:

1.)wedge wire screen style isn't easy to be locked
2.)due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.)we are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) we have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles

wedge wire screen lauter tun screen for Water Intake

Specifications of wedge wire screen lauter tun screen for Water Intake:

wedge wire screen lauter tun screen for Water Intake

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of wedge wire screen lauter tun screen for Water Intake:

wedge wire screen lauter tun screen for Water Intake
