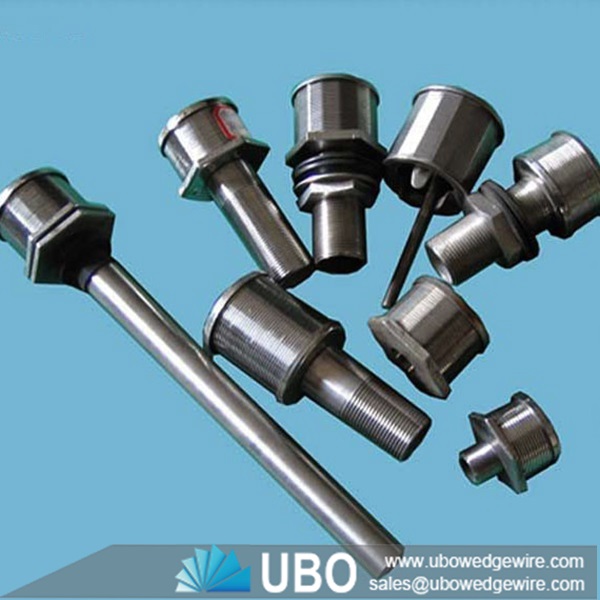

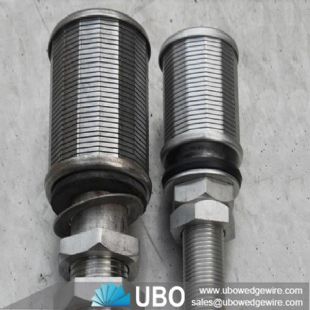

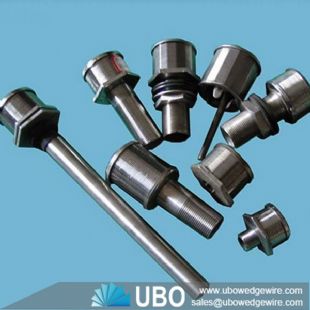

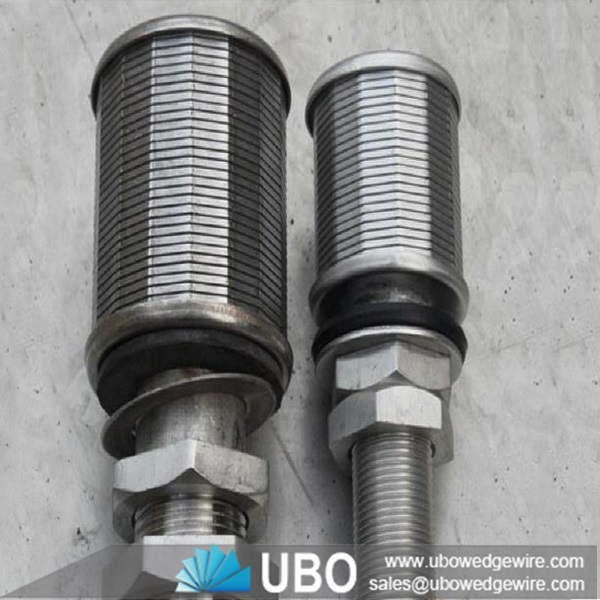

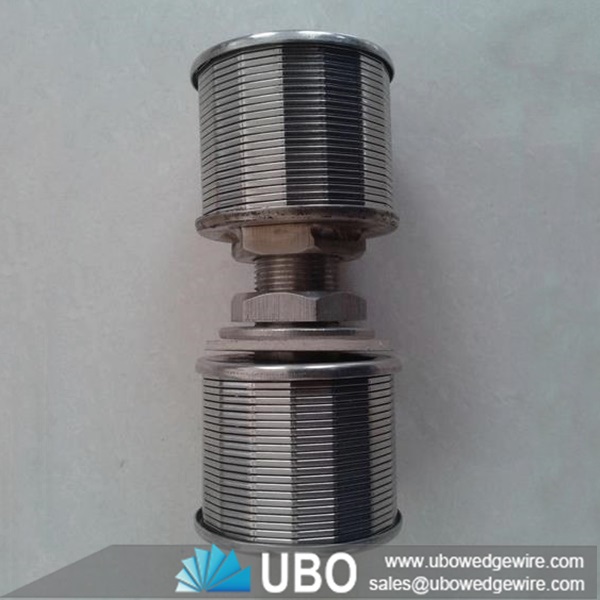

wedge wire screen filter nozzles for water filtration

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties: filter nozzles
Application:the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen filter nozzles for water filtration

      The single water flow rate screen nozzle a screen pipe. Nozzles are closed on one side and have a threaded fitting on the other. The screen nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium.One rubber shim , one steel shim and two thin nuts of the same material for a nozzle.

Uses for wedge wire screen filter nozzles for water filtration:

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Advantages for wedge wire screen filter nozzles for water filtration:

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Features for wedge wire screen filter nozzles for water filtration:

Great mechanical strength
Highly resistant to abrasivity and vibration.
It can hold more pressure and temperature compared to the perforated sheet screen.
Longer screen life.
Larger useful area than that of the standard perforated sheet screen.
The wedge wire screen can be used in any of INOXPA filters.
The wedge wire screen is assembled to the filter body by clamp, this allows an easy and quick disassembling for cleaning.
It is possible to clean the wedge wire screen with a reversed flow (back flushing).

wedge wire screen filter nozzles for water filtration

Specifications of wedge wire screen filter nozzles for water filtration:

wedge wire screen filter nozzles for water filtration

No.
Slot
Dimension
Flow area/mm2
(Slot:0.2mm)
D
H
L
M
L1
1
0.2-0.5
45
30
180
25
According to customs request
330
2
45
40
190
25
450
3
53
40
190
30
500
4
53
50
200
30
630
5
53
40
235
32
500
6
57
40
190
32
605
7
57
50
200
32
750

Packaging and Transportation of wedge wire screen filter nozzles for water filtration:

wedge wire screen filter nozzles for water filtration
