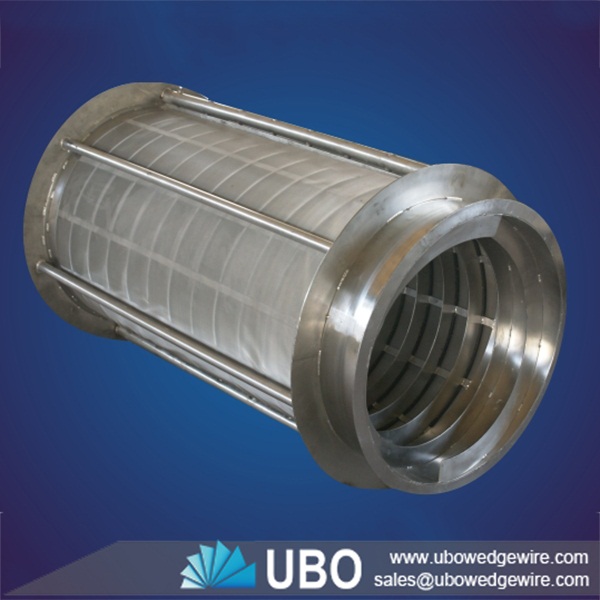

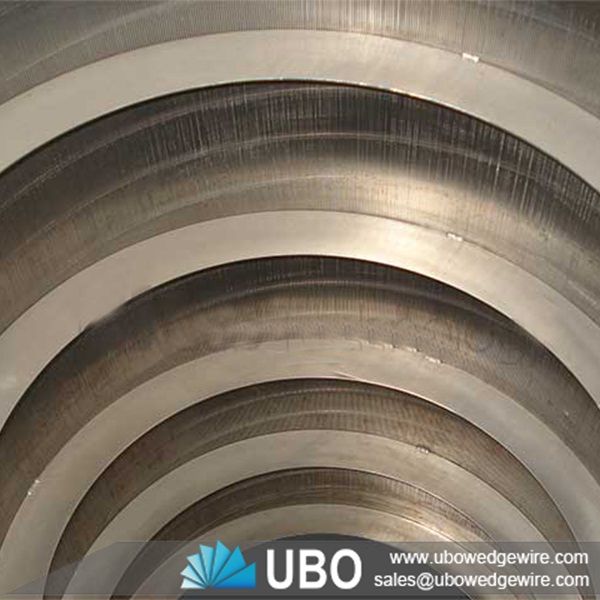

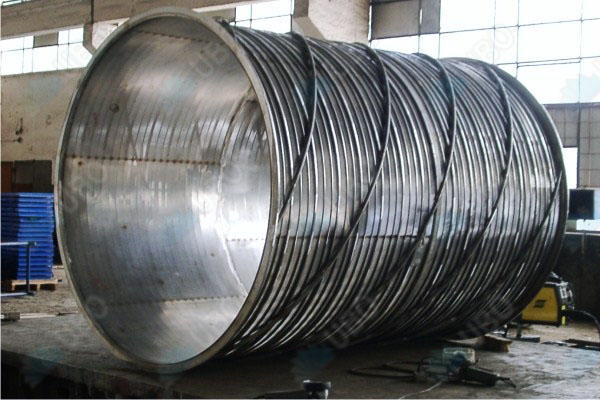

wedge wire rotary drum screen for sugar industry

More Views

wedge wire rotary drum screen for sugar industrywedge wire rotary drum screen for sugar industrywedge wire rotary drum screen for sugar industry

wedge wire rotary drum screen for sugar industry

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge wire screen cylinders
Application: food processing, waste water filtration, pulp and paper as well as mineral processing applications

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire rotary drum screen for sugar industry

Rotary fine wire screens are used for mechanical separation of solid particles from liquids. They are made from fine wire screens with carrying and strengthening structure. They are characterized by capability of working in continuous mode, high efficiency combined with low energy consumption and self-cleaning.

Applications for wedge wire rotary drum screen for sugar industry:

Trommel drum screen can be used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

Features for wedge wire rotary drum screen for sugar industry:

• Reduced costs, since wedge wire screens have a very long life.

• Greater resistance to stresses of different pressure and temperature.

• Maximum effective flow area & operating efficiency is maintained.

• Costly downtime for cleaning plugged screens is minimize.

Advantages for wedge wire rotary drum screen for sugar industry:

Advantages of the rotating Trommel Screen are that large flows can be pumped over a range of screen drum aperture sizes. The screen surface can also be cleaned as the screen drum rotates presenting a clean surface to the incoming feed. At the same time, stainless steel wedge wire rotary drum has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.



wedge wire rotary drum screen for sugar industry

Specifications of wedge wire rotary drum screen for sugar industry:

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

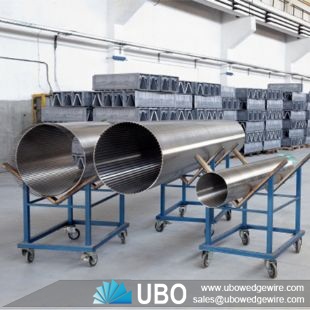

Packaging and Transportation of wedge wire rotary drum screen for sugar industry:

wedge wire rotary drum screen for sugar industry
