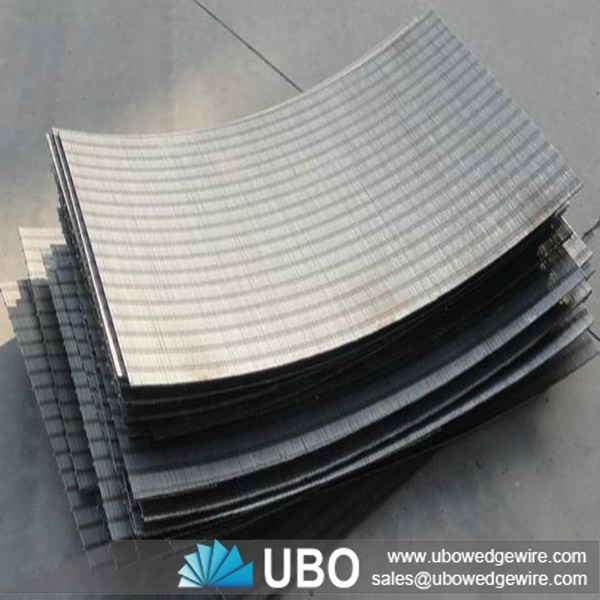

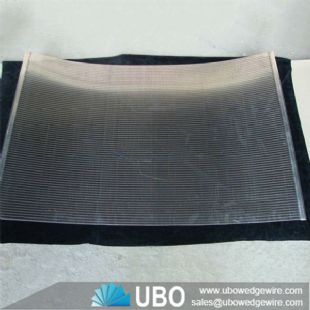

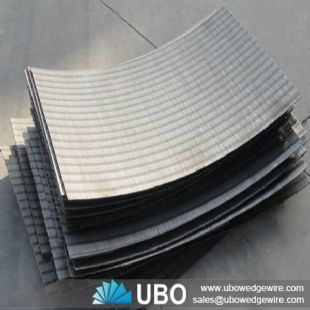

wedge wire pressure screen for filteration

More Views

wedge wire pressure screen for filterationwedge wire pressure screen for filterationwedge wire pressure screen for filteration

wedge wire pressure screen for filteration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire pressure screen for filteration

Wedge wire pressure screen consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. Wedge wire pressure screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

Characteristics of wedge wire pressure screen for filteration

The benefit of wedge wire screen is more open area, have very precise openings ,maximum design flexibility, stronger and more durable, economical ,easier installation and long-term operating etc.

Advantages of wedge wire pressure screen for filteration

-- High strength;

-- Good resistance to abrasion and corrosion;

-- High rigidity;

-- Good in filtration and fluidity;

-- Flat panel surface;

-- Fairly well precision and roundness;

-- Long work time.

-- Easy to clean and back wash;

-- Uniform gap.

Usages of wedge wire pressure screen for filteration

Wedge wire pressure screen unit is the answer to many de-watering, sizing, and wastewater cleanup problems. Typical uses are sewage treatment, laundry wash water clean-up, poultry, fish, fruit and vegetable wastewater processing, minerals processing, coal preparation, paper production, textile plants, and many more.

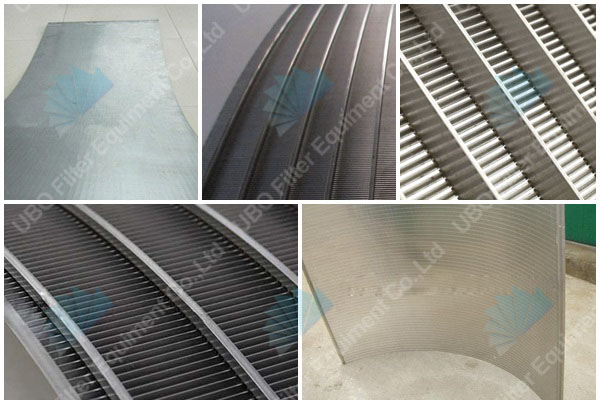

wedge wire pressure screen for filteration

Specifications of wedge wire pressure screen for filteration:

wedge wire pressure screen for filteration



Model NO.
Screen Area
(m2)
Sieve hole size (mm)
Seam Size (mm)
Screen Hole (T/D)
Screen Slot (T/D)
Inlet pulp consistency (%)
Motor Power (Kw)
ZNS 0.3
0.3
Φ1.6~Φ3.5
0.1~0.55
50~80
30~50
1~4
22~55
ZNS 0.6
0.6
Φ1.6~Φ3.5
0.1~0.55
90~160
60~100
1~4
30~75
ZNS 0.9
0.9
Φ1.6~Φ3.5
0.1~0.55
135~250
90~150
1~4
37~90
ZNS 1.2
1.2
Φ1.6~Φ3.5
0.1~0.55
180~320
120~190
1~4
45~110
ZNS 1.5
1.5
Φ1.6~Φ3.5
0.1~0.55
200~380
140~230
1~4
55~132
ZNS 2
2
Φ1.6~Φ3.5
0.1~0.55
260~500
220~300
1~4
75~160
ZNS 3
3
Φ1.6~Φ3.5
0.1~0.55
400~700
300~450
1~4
90~22

Packaging and Transportation of wedge wire pressure screen for filteration:

transportation
