wedge type v wire wrap oil well screen for petroleum field
Category: | Wedge Wire Application |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Wedge Wire Pipe |
Application: | waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of wedge type v wire wrap oil well screen for petroleum field

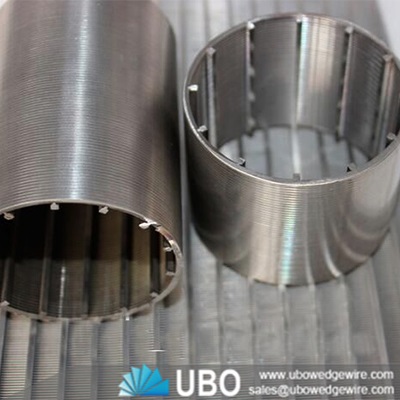

wedge type v wire wrap oil well screen is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding. It is used in water well, oil well, gas wells and for environmental well completions.
Applications for wedge type v wire wrap oil well screen for petroleum field:
Applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.
Features for wedge type v wire wrap oil well screen for petroleum field:
1) The V-shape section plane of Wedge wire screen pipe (Wedge Wire screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.
2) The consecutive slot of Wedge wire screen pipe (Wedge Wire screens) have wider open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well.
3) Wire and support rods are all-welded, which makes the Wedge wire screen pipe (Wedge Wire screens) more robust and longer life.
4) The longitudinal support rods and the continuous slot make the Wedge wire screen pipe (Wedge Wire screens) have more excellent pressure-resistant performance.
5) Specifications and end connections of Wedge wire screen pipe (Wedge Wire screens) can be fabricated according to customers’ requirements.
Features for wedge type v wire wrap oil well screen for petroleum field:
1) continuous slot screens, stronger and more durable
2) more open area, very precise openings
3) virtually non-clogging and reduce media abrasion
4) easier installation and long-term operating and cost benefits
Specifications of wedge type v wire wrap oil well screen for petroleum field:
Size (inch)
|
O.D (mm)
|
Slot (inch)
|
Collapse Strength (Psi)
|
Tensile Weight (Ton)
|
Wrap(thick*deep) (mm)
|
Rods (mm)
|
4
|
117
|
0.04
|
395
|
6
|
2.2*3.0
|
3.8mm/22
|
4
|
114.3 |
0.04
|
395
|
6
|
2.3*3.0
|
3.8mm/22
|
6
|
168.3
|
0.04
|
252
|
8
|
2.3*3.5
|
3.8mm/32
|
8
|
219.1
|
0.01
|
399
|
10.5
|
3.0*5.0
|
3.8mm/48
|
8
|
219.1
|
0.02
|
370
|
10.5
|
3.0*5.0
|
3.8mm/48
|
8
|
219.1
|
0.04
|
323
|
10.5
|
3.0*5.0
|
3.8mm/48
|
10
|
273.1
|
0.01
|
206
|
11
|
3.0*5.0
|
3.8mm/50
|
10
|
273.1
|
0.02
|
191
|
11
|
3.0*5.0
|
3.8mm/50
|
10
|
273.1
|
0.04
|
167
|
11
|
3.0*5.0
|
3.8mm/50
|
