Wedge wire oil well screen pipe used for petrochemical industry

More Views

Wedge wire oil well screen pipe used for petrochemical industryWedge wire oil well screen pipe used for petrochemical industryWedge wire oil well screen pipe used for petrochemical industry

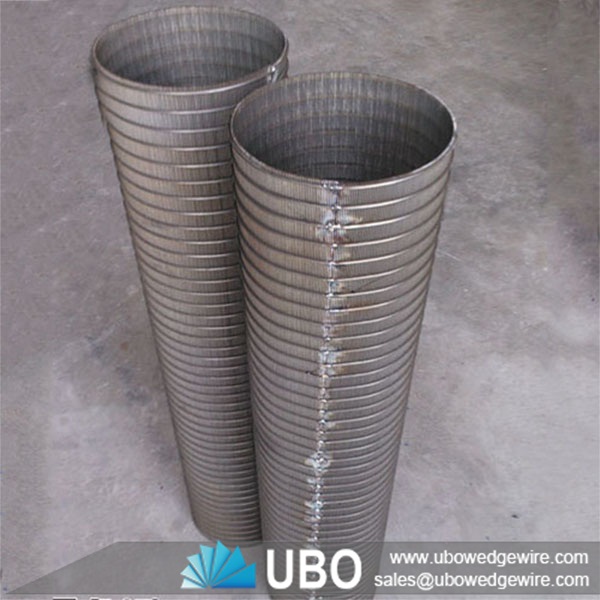

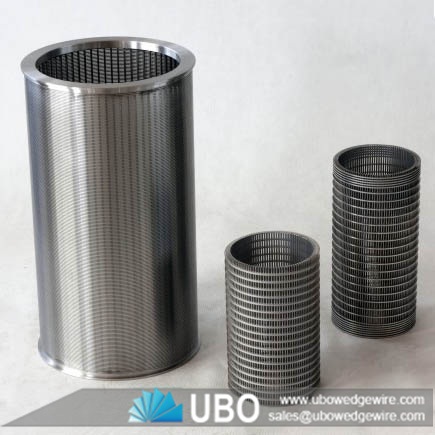

Wedge wire oil well screen pipe used for petrochemical industry

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:wedge wire pipe
Application:oil well , water well , geothermal well , sewage and industrial wastewater disposal plants, food equipment, liquids filtration,cleaning treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire oil well screen pipe used for petrochemical industry

The welded continuous slot wedge wire screens are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resistant, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Application for Wedge wire oil well screen pipe used for petrochemical industry:

oil well , water well , geothermal well , sewage and industrial wastewater disposal plants, food equipment, liquids filtration,cleaning treatment

Advantage for Wedge wire oil well screen pipe used for petrochemical industry:

1) A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone

2) A V-shaped profile wire which avoids clogging and ensures an uninterrupted flow.

3) A uniform and efficient well development due to the continuous slot opening.

4) Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

5) Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Features for Wedge wire oil well screen pipe used for petrochemical industry:

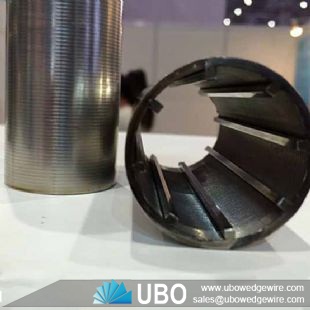

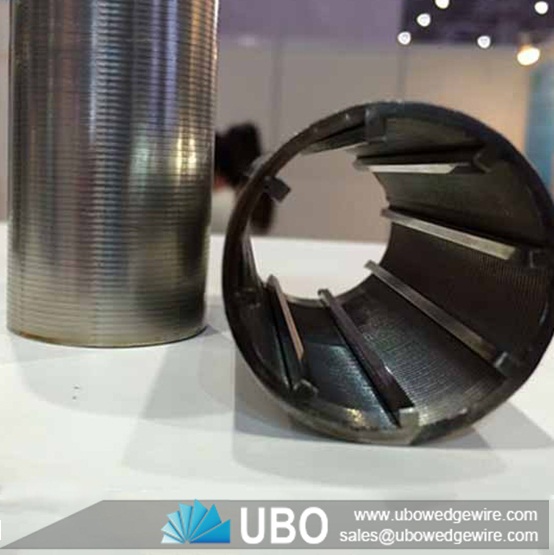

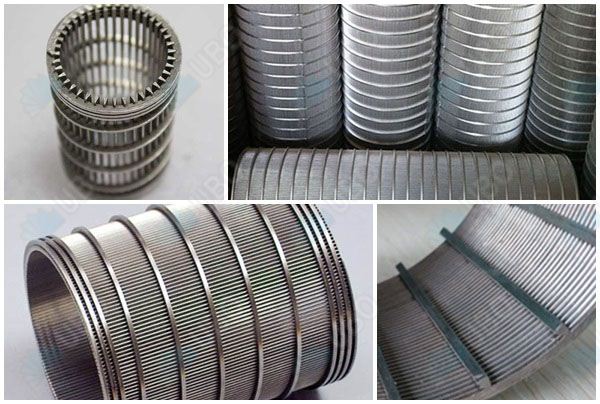

Wedge wire oil well screen pipe consist of V-shape profile wire and the longitudinal support rods. each intersecting point of these wires is fusion welded. So Wedge Wire screen pipe has sturdy constriction and good mechanical property. The V-shape section plane can avoid blockage, and make sure of the unimpeded water. The continuous slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so water well screen pipe can filter sand better. Meanwhile ,the slot size can be changed according to the real condition of the earth.

Production Process for Wedge wire oil well screen pipe used for petrochemical industry:

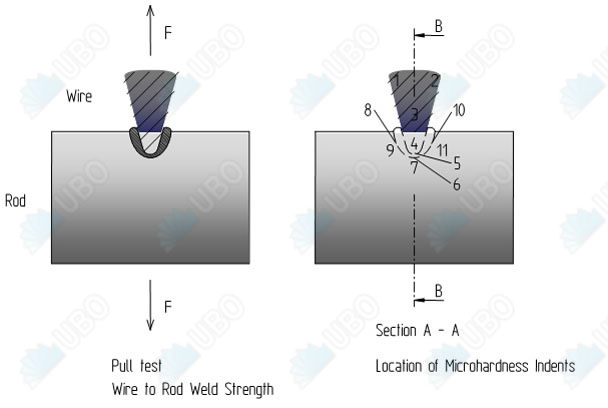

With the advanced contour welding technology, the wedge wire water screen is made by welding the specially-made trapezoid wrapping wire onto the supporting wires, all of which are in circumferential arrangement. This welding method allows the ideal seam size as well as the maximum bearing capacity. In the whole production process, all the dedicated and up-to-date machines are operated by our professional personnel.

Wedge wire oil well screen pipe used for petrochemical industry

Specifications of Wedge wire oil well screen pipe used for petrochemical industry:

Wedge wire oil well screen pipe used for petrochemical industry





SLOT
(INCH)
LENGTH
(m)
WIDTH
(m)
COLLAPSE
STERENG
(PSI)
TENSILE
WEIGHT
(TON)
WRAP
(thick*deep)
(mm)
RODS
(mm)
0.04
1-6
0.5-2
395
6
2.2*3.0
3.8mm/22
0.04
1-6
0.5-2
395
6
2.3*3.0
3.8mm/22
0.04
1-6
0.5-2
252
8
2.3*3.5
3.8mm/32
0.01
1-6
0.5-2
399
10.5
3.0*5.0
3.8mm/48
0.02
1-6
0.5-2
370
10.5
3.0*5.0
3.8mm/48
0.04
1-6
0.5-2
323
10.5
3.0*5.0
3.8mm/48
0.01
1-6
0.5-2
206
11
3.0*5.0
3.8mm/50
0.02
1-6
0.5-2
191
11
3.0*5.0
3.8mm/50
0.04
1-6
0.5-2
167
11
3.0*5.0
3.8mm/50

Packaging and Transportation of Wedge wire oil well screen pipe used for petrochemical industry:

Wedge wire oil well screen pipe used for petrochemical industry
