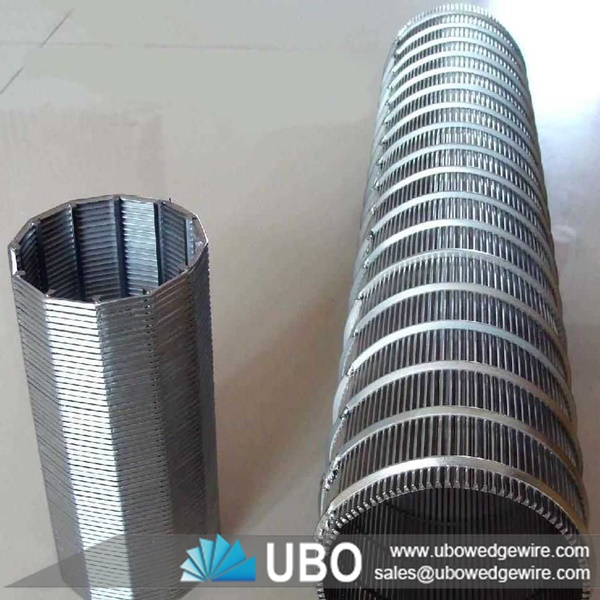

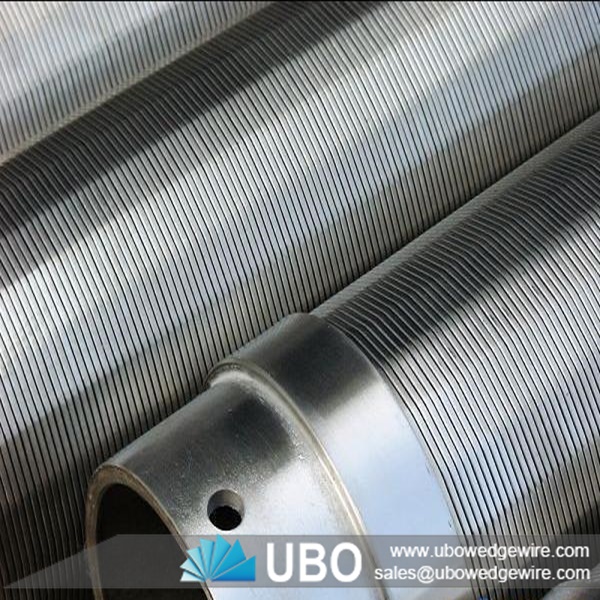

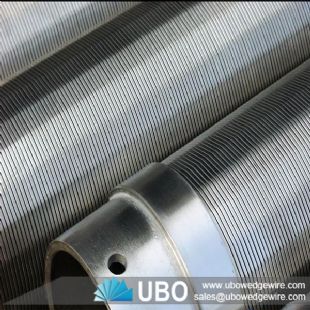

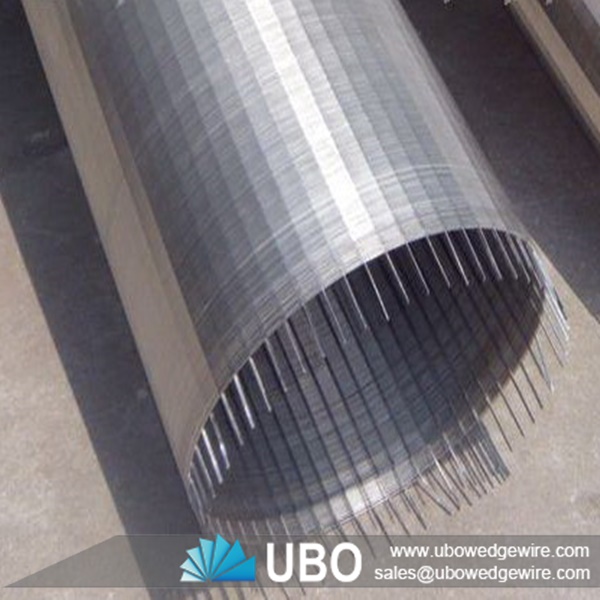

water well screen point

More Views

water well screen pointwater well screen pointwater well screen point

water well screen point

Category:Wedge Wire Application
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:water filtration,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of water well screen point

water well screens are made in panel or cylinder type from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals.

Features of water well screen point

Self Supporting;
High Abrasion resistance;
Low pressure drop;
High resistance to Vibration.

Applications of water well screen point

Cylinder screen is used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

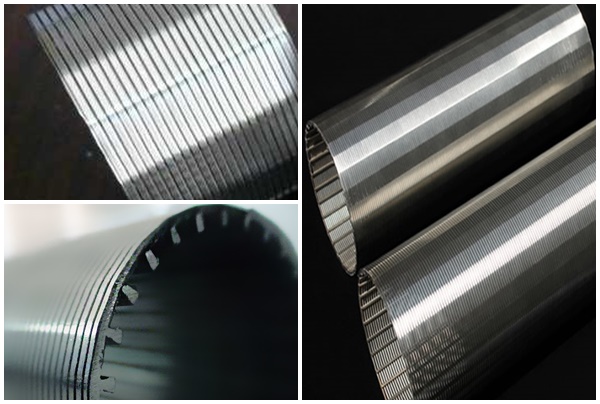

        water well screen point

Specifications of water well screen point:



Surface Profiles Support Profiles Min. diam. mm Min. slot width mm
10S Q25 21 0.10
11S Q20 or Q25 23 0.030
12S 22S 30 0.050
12S Q25 23 0.030
12S Q35 30 0.050
18S 22S or Q35 30 0.050
18S Q25 25 0.030
18S D45 300 0.20
18S 10 × 3 300 0.20
22S 22S or Q35 45 0.10
22S D45 or 10 × 3 or 25 × 3 300 0.20
28S Q35 215 0.20
28S D45 or 10 × 3 or 25 × 3 300 0.20
34S Q35 300 0.20
34S D45 300 0.20
34S 10 × 3 or 25 × 3 300 0.20
42S Q35 or D45 300 0.20
42S 10 × 3 or 25 × 3 300 0.20

Diameters



Outside diameter in mm Number of support profiles
30 8
45 10
57 12
70 18
85 18
97 20
110 24
137 30
164 36
215 48
268 48
305 40
380 48
460 60
510 64
625 80
914 180

Packaging and Transportation of water well screen point:

water well screen point
