Wedge Wire type water filter strainer resin trap element

More Views

Wedge Wire type water filter strainer resin trap elementWedge Wire type water filter strainer resin trap elementWedge Wire type water filter strainer resin trap element

Wedge Wire type water filter strainer resin trap element

Category:Resin Traps
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:resin trap
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire type water filter strainer resin trap element

Wedge Wire type water filter strainer resin trap element are used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly. UBO offers a complete range of resin trap styles to suit virtually any application. All are available in a full range of construction materials with a variety of connecting flanges and housings. In vessels using hydrochloric acid for regeneration, the resin trap must be of hastelloy construction.

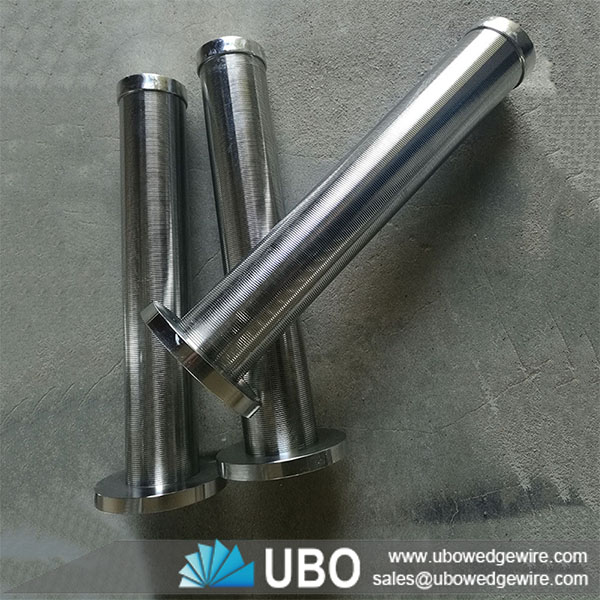

Wedge Wire type water filter strainer resin trap element

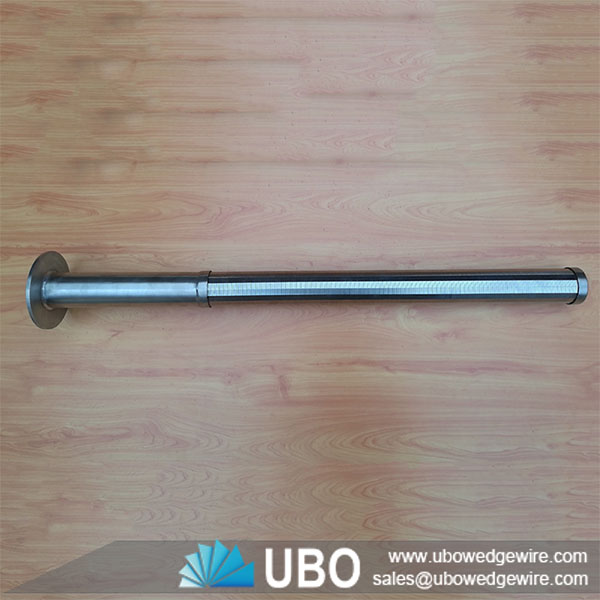

Wedge Wire type water filter strainer resin trap element

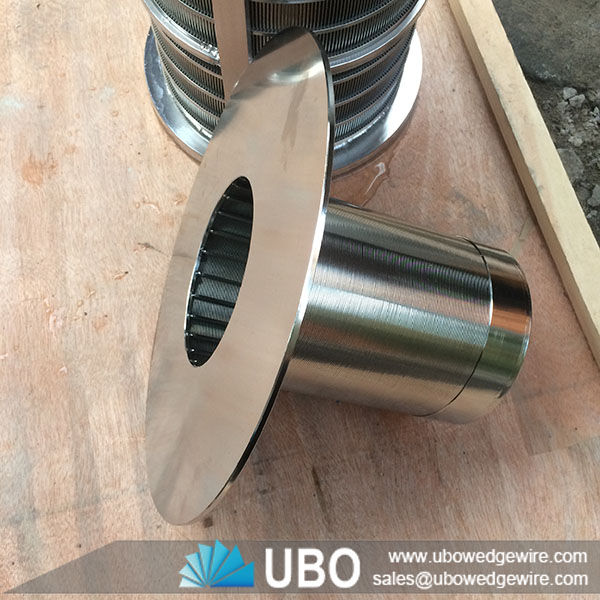

Wedge Wire type water filter strainer resin trap element

Application of Wedge Wire type water filter strainer resin trap element

Resin Trap Screen Predominantly used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

Advantages of Wedge Wire type water filter strainer resin trap element

Precise slot
Non-clogging surface
Large open area
Low pressure drop
High flow rates
Great mechanical strength
Abrasion-resistant
Easy cleaning
Flexibility in design
Perfect roundness,smooth surface

Wedge Wire type water filter strainer resin trap element

Specifications of Wedge Wire type water filter strainer resin trap element:

Wedge Wire type water filter strainer resin trap element


Specification (wedge wire):

Width(mm): 1.00 1.00 1.50 1.80 2.00 2.20 2.50 3.00 3.30 3.70
Height(mm): 1.80 2.00 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 10.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size:

0.01mm-10.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316L etc.)

Length:

up to 6 meters

End connection:

Plain beveled ends, flanged or threaded coupling.

Diameter:

from 15mm to 1200mm.

Note:1.This product can customize according to customer’s actual need.

Packaging and Transportation of Wedge Wire type water filter strainer resin trap element:

Wedge Wire type water filter strainer resin trap element
