Quality Wedge Wire Screen Manufacturer in China

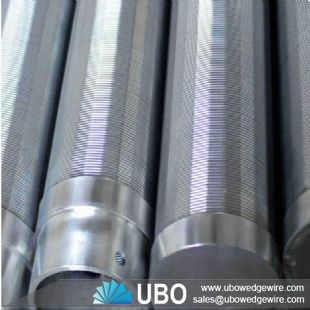

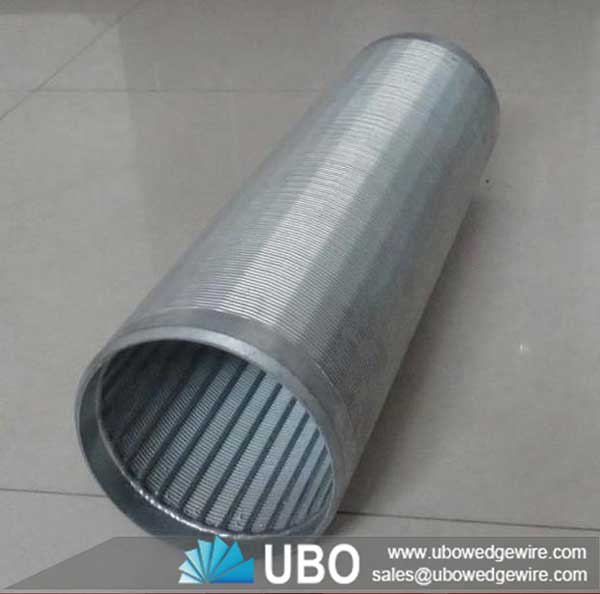

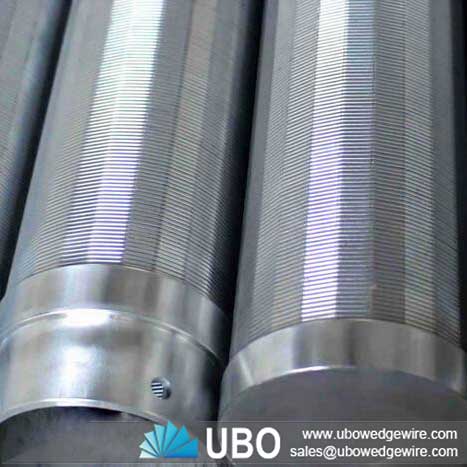

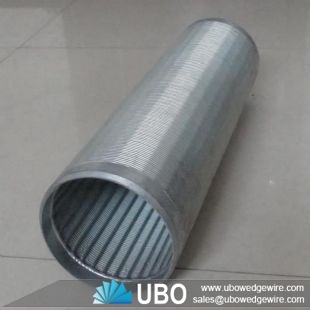

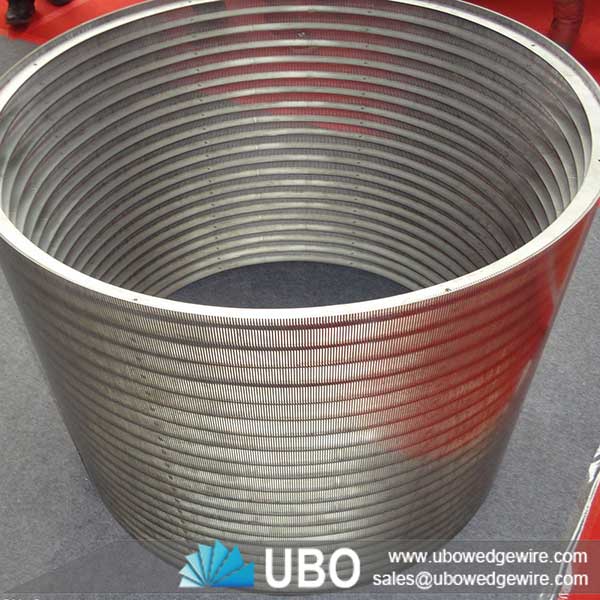

surface intake screen

More Views

surface intake screensurface intake screensurface intake screen

surface intake screen

Category:Wedge Wire Application
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:filtration/industry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of surface intake screen

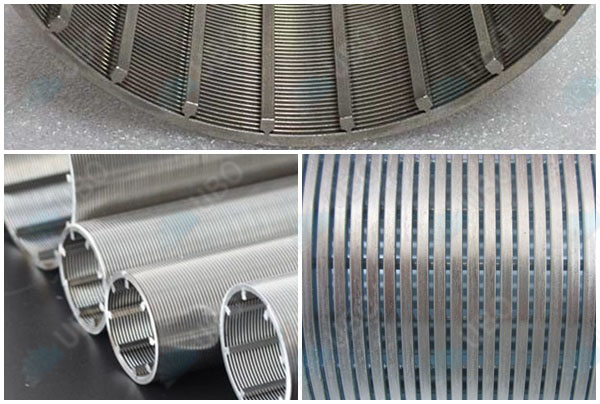

The surface intake screen is manufactured by a V or wedge shaped wire around an internal array of longitudinal support rods. Each intersecting point of this wire is fusion welded. The V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities while at the same time keeps the majority of sand and gravel out of the well.


Features of surface intake screen

* Wire wrapped screen with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

* Low cost operation screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level's down, thus to save energy consumption.

* Reduce the abrasion of the pump

Under the same condition, high open area can make the speed of groundwater's entering into the screen much slower than any other filtration apparatus, which will avoid sand's entering into screen because of high pressure, thus reduce the abrasion of the pump.

* Extend the life span of wells

Comparatively, groundwater's entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.

Applications of surface intake screen

* Separating

* Sizing

* Straining

* De-watering

* Filtering

* Drying

* Water intake

* Media retention

        surface intake screen

Specifications of surface intake screen:

                      screen pipe



SIZE
(INCH)

O.D
(MM)

SLOT
(INCH)

LENGTH
(M)

COLLAPSE
STRENGTH
(PSI)

TENSILE
WEIGHT
(TON)

WRAP(thick*deep)
(MM)

RODS
(MM)

4

117

0.040

3

395

6

2.2*3.0

3.8MM/22

4

114.3

0.040

3

395

6

2.3*3.0

3.8MM/22

6

168.3

0.040

3

252

8

2.3*3.5

3.8MM/32

8

219.1

0.010

3

399

10.5

3.0*5.0

3.8MM/48

8

219.1

0.020

3

370

10.5

3.0*5.0

3.8MM/48

8

219.1

0.040

3

323

10.5

3.0*5.0

3.8MM/48

10

273.1

0.010

3

206

11

3.0*5.0

3.8MM/50

10

273.1

0.020

3

191

11

3.0*5.0

3.8MM/50

10

273.1

0.040

3

167

11

3.0*5.0

3.8MM/50



Packaging and Transportation of surface intake screen:

    packing
