stainless wire wedge v wire screen for Industrial
Category: | Wedge Wire Application |
---|---|
Material: | SS 304,316,316L, Stainless steel and carbon steel. |
Properties: | Wedge wire screen |
Application: | petroleum, gas and water well, filling with gravels |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

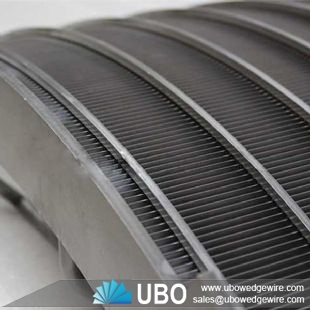

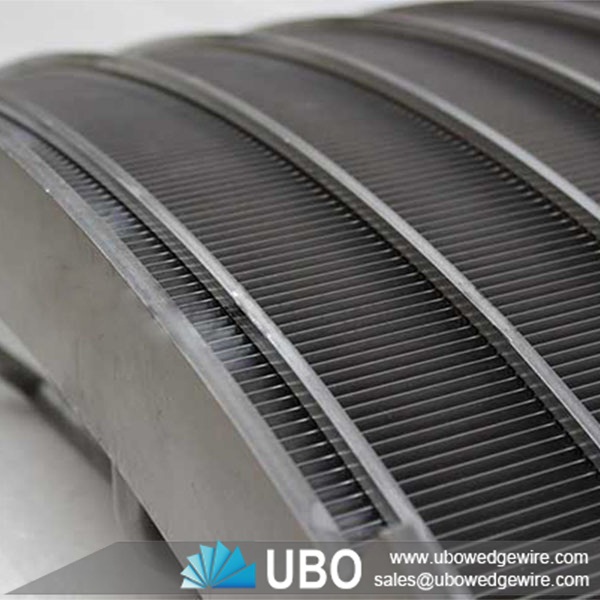

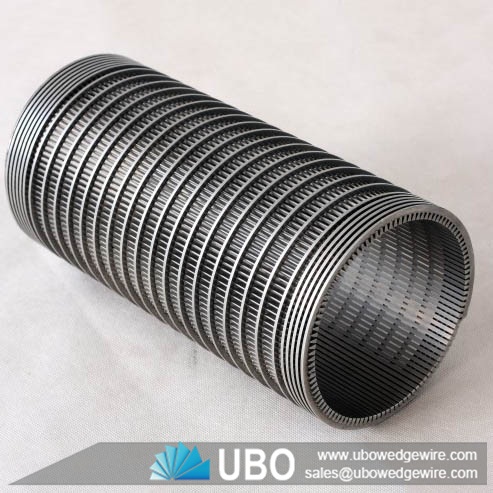

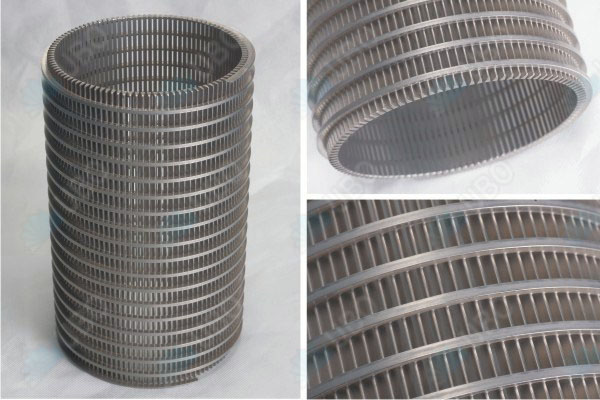

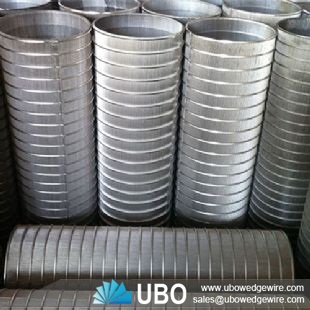

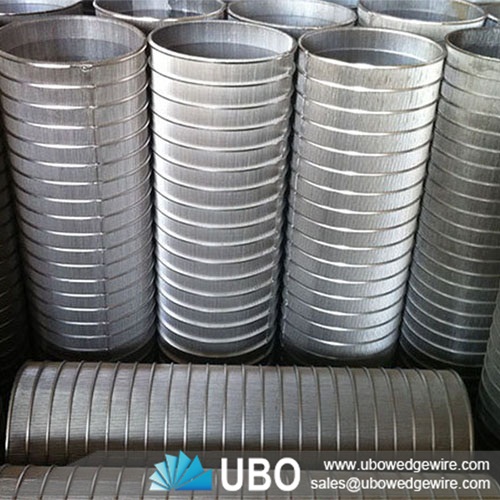

Details of stainless wire wedge v wire screen for Industrial
The v-wire wedge wire screen pipe is made up of rods and warp. The rod can be round wire,triangular wire or trapezoid wire.The warp is triangular wire (V-shaped wire). V wirewedge wire screen pipes have a robust structure and large open area, as well as accurate slot dimension.
At the same time, V wire water well screens have many advantages such as heat-resisting,anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.
Usage for stainless wire wedge v wire screen for Industrial:
All welding wire wrap screen can be used in petroleum, gas and water well, filling with gravels, can prevent the sand and protect the equipment in the well and underground, prolong the life span. It has the characteristics of easy operation, fine permeability, unaffected by temperature, long life service, safety and reliability, low comprehensive cost and etc.
Features for stainless wire wedge v wire screen for Industrial:
1) Screens with large open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2) Low cost operation
Screens with large open area shall favor groundwater filtration. Abundant water will reduce the water level’s down, thus to save energy consumption.
3) Under the same condition, large open area can make the speed of groundwater’s enter into the screen much slower than any other filtration apparatus, which will avoid sand entering into screen because of high pressure, which reduce the abrasion of the pump.
4) Extending the service life of wells
Comparatively, groundwater’s entering into screen with larger open area is much easier than that entering into smaller open area screen. The slow water flow will extend the service life of the wells.
Advantage for stainless wire wedge v wire screen for Industrial:
· Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.
Specifications of stainless wire wedge v wire screen for Industrial:
Outside Diameter
|
Profile
wire
|
Rod
wire
|
Rod
quantity
|
Slot
size
|
Length
|
||
DN
|
Inch
|
mm
|
mm
|
mm
|
|
mm
|
mm
|
20
|
3/4
|
26.9
|
1.5*2
|
2*3
|
12
|
0.1~0.25
|
45~3000
|
25
|
1
|
33.7
|
1.5*2
|
2*3
|
14
|
0.1~0.25
|
45~3000
|
32
|
1~1/4
|
42.4
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000
|
40
|
1~1/2
|
48.3
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000
|
50
|
2
|
60.3
|
1.5*2
|
2*3
|
18
|
0.1~0.5
|
45~3000
|
65
|
2~2/2
|
76.1
|
1.5*2
|
2*3
|
20
|
0.1~0.5
|
45~3000
|
80
|
3
|
88.9
|
1.8*2.5
|
2*3
|
24
|
0.1~0.5
|
45~3000
|
100
|
4
|
114.3
|
1.8*2.5
|
2*3
|
30
|
0.5~2
|
1000~6000
|
125
|
5
|
139.7
|
2.3*2.7
|
2*3
|
36
|
0.5~2
|
1000~6000
|
150
|
6
|
168.3
|
2.3*2.7
|
3*5
|
44
|
0.5~2
|
1000~6000
|
200
|
8
|
219.1
|
3.3*4.5
|
3*4.7
|
56
|
0.5~2
|
1000~6000
|
250
|
10
|
273
|
3.3*4.5
|
4*6
|
66
|
0.5~2
|
1000~6000
|
300
|
12
|
323.9
|
3.3*4.7
|
4*6
|
72
|
0.5~2
|
1000~6000
|
350
|
14
|
355.6
|
3.7*5
|
4*6
|
80
|
0.5~2
|
1000~6000
|
400
|
16
|
406.4
|
1.5*2
|
2*3
|
94
|
0.1~2
|
1000~6000
|
450
|
18
|
457
|
2*3
|
4*5
|
112
|
0.1~2
|
500~400
|
500
|
20
|
508
|
2*3
|
4*5
|
124
|
0.1~2
|
500~400
|
550
|
22
|
559
|
2*3
|
4*5
|
140
|
0.1~2
|
500~400
|
600
|
24
|
610
|
2*3
|
4*5
|
156
|
0.1~2
|
500~400
|
Siot:0.1mm~2mm Tolerance:0.05
|
