stainless steel welded wedge wire screen filter nozzles strainer screen

More Views

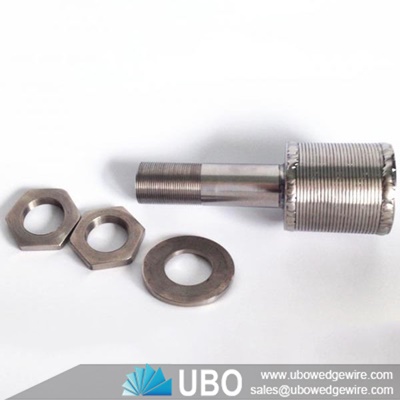

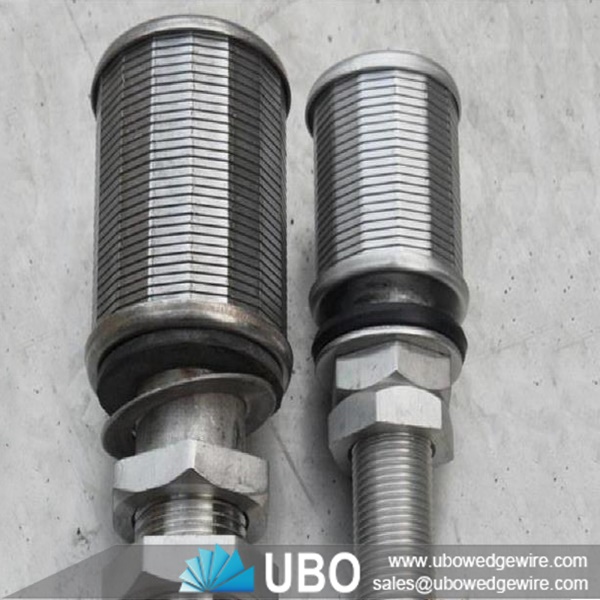

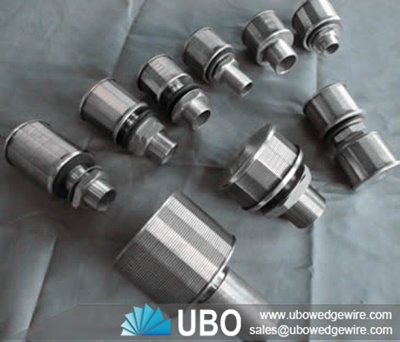

stainless steel welded wedge wire screen filter nozzles strainer screenstainless steel welded wedge wire screen filter nozzles strainer screenstainless steel welded wedge wire screen filter nozzles strainer screen

stainless steel welded wedge wire screen filter nozzles strainer screen

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Filter Nozzle
Application: waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel welded wedge wire screen filter nozzles strainer screen

The v shap screen nozzle as the important parts used in the water treatment equipment for power plant,waste water processes, the Vee shape wire are stainless steel AISI 316L.Slot size from 0.2 to 0.25mm.
We can manufacture single wedge wire screen nozzle,double wedge wire nozzle,also used in the lon exchanger.

Usages for stainless steel welded wedge wire screen filter nozzles strainer screen:

used widely in down-flow reactors for liquid/solid or gas/solid separation. The liquid or gas can flow through the nozzles while the solids are retained in the vessel by the nozzles.

Features for stainless steel welded wedge wire screen filter nozzles strainer screen:

1) We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.

2) The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities

3) After work for a period of time, the filter can be back flush.It can use for many times. Filtering direction from outside to inside (FOTI)

Advantages for stainless steel welded wedge wire screen filter nozzles strainer screen:

1) Type 316L stainless steel construction.

2) Continuous slot design provide large circulation area

3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.

4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

5) Wedge wire screen is highly resistant to plugging.

6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

7) Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

 stainless steel welded wedge wire screen filter nozzles strainer screen

Specifications of stainless steel welded wedge wire screen filter nozzles strainer screen:

 stainless steel welded wedge wire screen filter nozzles strainer screen



Type

Slot

Dimension

Flow area

D

H

L

M

A

0.25

Φ45

40

90

M20

450m3

A1

0.25

Φ45

40

90

M24

500m3

(flow 0.5T/H)

B

0.25

Φ53

45

100

M24

570m3

(flow  1T/H)

B1

0.25

Φ53

45

100

M32

600m3

(flow  1.5T/H)

B3

0.25

Φ57

55

110

M32

800m3

(flow 2T/H)

C

0.2-0.5

Φ70

45

110

M32

800m3

C1

0.2-0.5

Φ70

55

120

M32

1000m3

Packaging and Transportation of stainless steel welded wedge wire screen filter nozzles strainer screen:

 stainless steel welded wedge wire screen filter nozzles strainer screen
