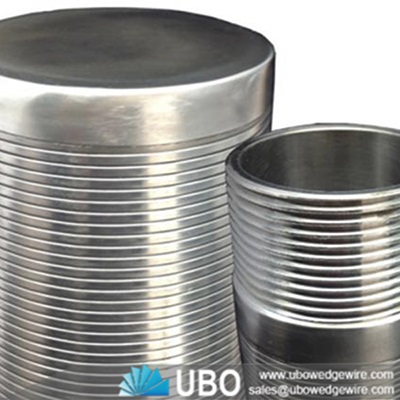

stainless steel wedge wire welded well water filter

More Views

stainless steel wedge wire welded well water filterstainless steel wedge wire welded well water filterstainless steel wedge wire welded well water filter

stainless steel wedge wire welded well water filter

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Resin Traps
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel wedge wire welded well water filter

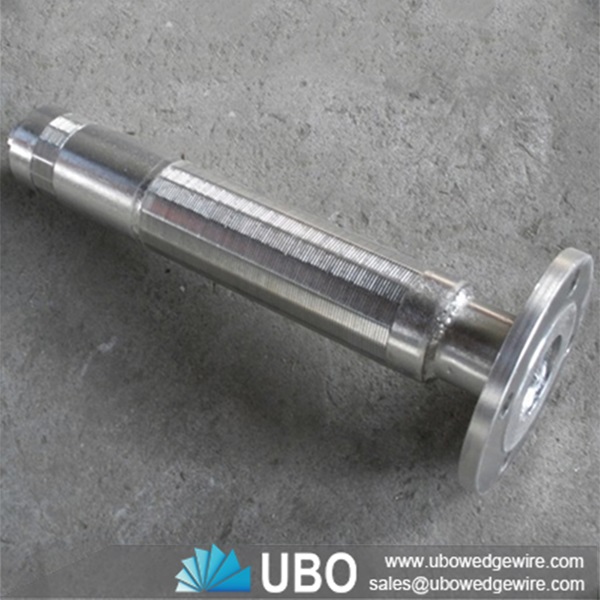

     A Resin Trap / Strainer is normally closed on one side and has a flange on the other. They can be made for flow-in-to-out (FITO) or flow-out-to-in (FOTI) filtration.A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube.

Application for stainless steel wedge wire welded well water filter:

Resin Trap Screen Predominantly used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.

Principle for stainless steel wedge wire welded well water filter:

A Resin Trap / Strainer normally serves to retain particles in a process flow. The quantity of particles is normally very low,so that cleaning can be done during flow interruption.

Advantages for stainless steel wedge wire welded well water filter:

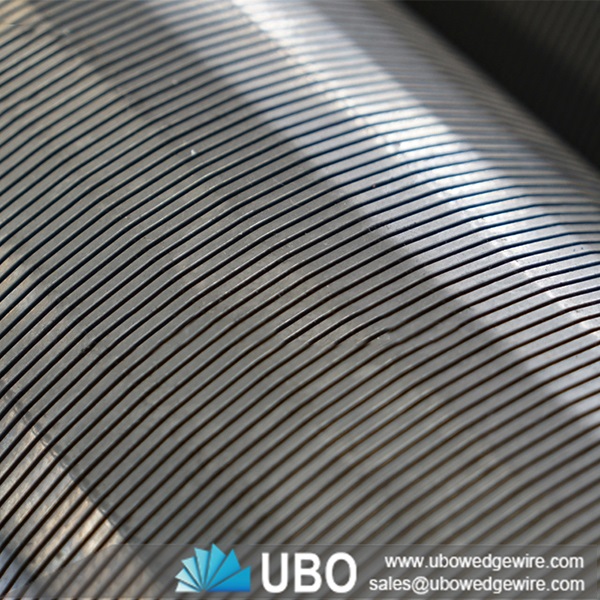

Very precise slots for perfect particle retention combined with minimum
Obstruction of the process flow,flexibility in design,strong construction,Large open area,plug-resistant slot design.

Features for stainless steel wedge wire welded well water filter:

•Reduced costs, since wedge wire screens have a very long life.
•Greater resistance to stresses of different pressure and temperature.
•Maximum effective flow area & operating efficiency is maintained.
•Costly downtime for cleaning plugged screens is minimize.

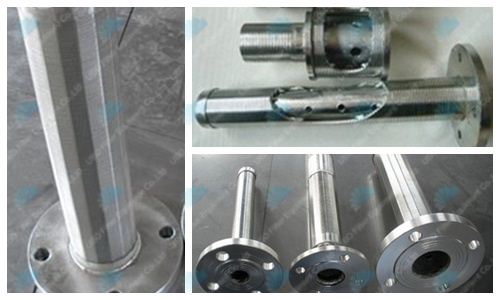

stainless steel wedge wire welded well water filter

Specifications of stainless steel wedge wire welded well water filter:

stainless steel wedge wire welded well water filter



Type
Slots mm
ΦA
Flange DN
L1mm
AM1
0.05, 0.1, 0.2  0.3, 0.5, 1.0
45,57,76,89,108,
133, 159, 219
40,50,65,80,
100,125,150,
200
442,496,547,
600,654,705,
758,812,863,
916,970,1021,
1074,1128,1179,
1232, 1286

Packaging and Transportation of stainless steel wedge wire welded well water filter:

stainless steel wedge wire welded well water filter

stainless steel wedge wire welded well water filter
