Quality Wedge Wire Screen Manufacturer in China

stainless steel wedge wire screen filter nozzles/filter strainer for filtration

More Views

stainless steel wedge wire screen filter nozzles/filter strainer for filtrationstainless steel wedge wire screen filter nozzles/filter strainer for filtrationstainless steel wedge wire screen filter nozzles/filter strainer for filtration

stainless steel wedge wire screen filter nozzles/filter strainer for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wegde wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel wedge wire screen filter nozzles/filter strainer for filtration

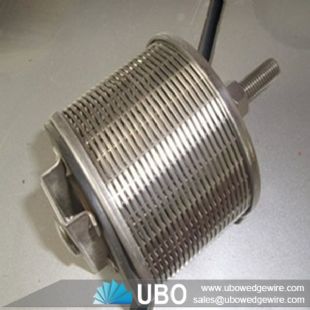

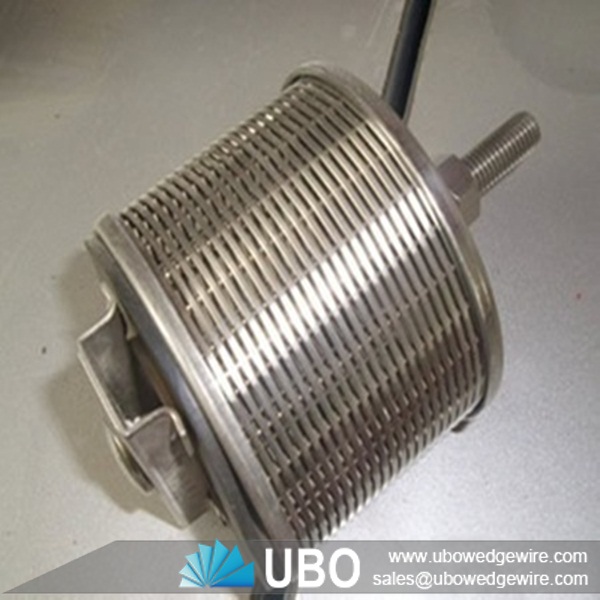

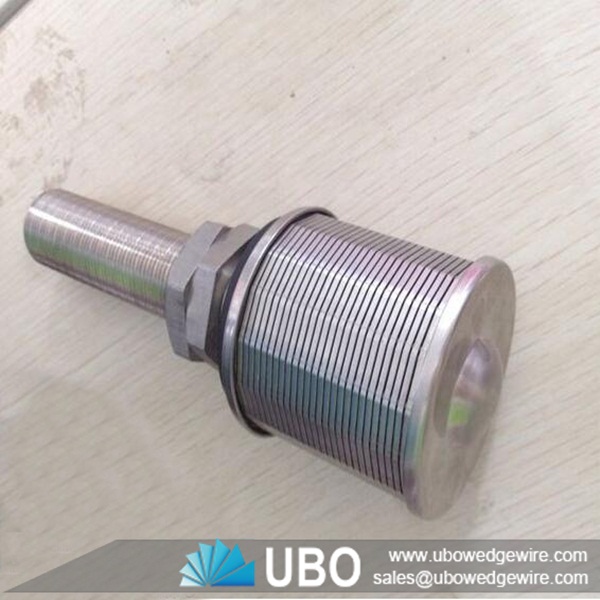

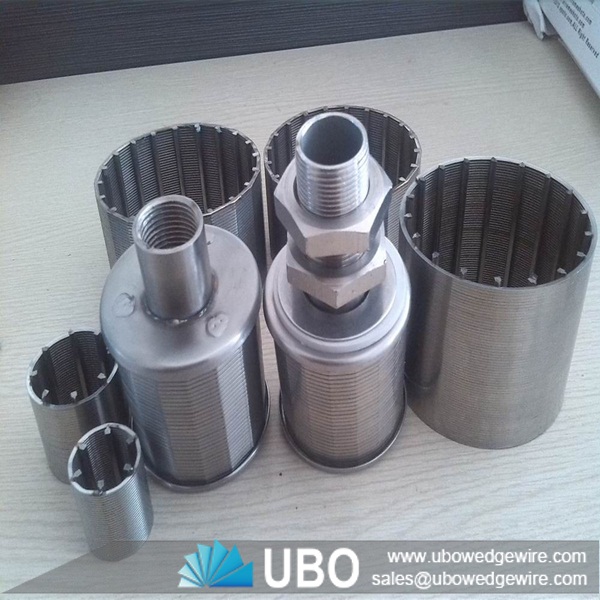

The stainless steel wedge wire screen filter nozzles( V shape) for resin traps and media air sparge is made up of stainless steel or Hastelloy C wedge wire screen. It has a structure and high open area, as well as accurate slot dimension.

Advantage of stainless steel wedge wire screen filter nozzles/filter strainer for filtration

High strength;
Good resistance to abrasion and corrosion;
High rigidity;
Good in filtration and fluidity;
Flat panel surface;
Fairly well precision and roundness;
Long work time.
Easy to clean and back wash;
Uniform gap.

Use of stainless steel wedge wire screen filter nozzles/filter strainer for filtration

The wedge wire screen nozzle/sand filter nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

stainless steel wedge wire screen filter nozzles/filter strainer for filtration

Specifications of stainless steel wedge wire screen filter nozzles/filter strainer for filtration:


No.



Type



Ton



Slot

Opening



Size

0.2-0.25mm slot opening Area of through-flow mm2(reference)

D

L1

L

M

1

SH45-1-C

0.5

0.2-0.5

45

45

95

24

500

2

SH53-2-B

1

0.2-0.5

53

45

100

24

570

3

SH53-2-C

1.5

0.2-0.5

53

50

110

32

700

4

SH57-3-B

2

0.2-0.5

57

45

110

32

600

5

SH70-4-B

3

0.2-0.5

70

55

120

32

1000

stainless steel wedge wire screen filter nozzles/filter strainer for filtration

Packaging and Transportation of stainless steel wedge wire screen filter nozzles/filter strainer for filtration:

transportation
