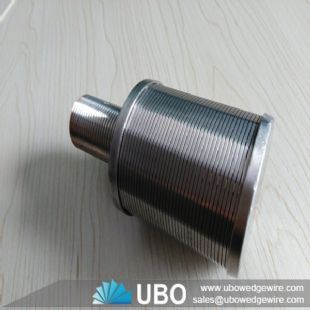

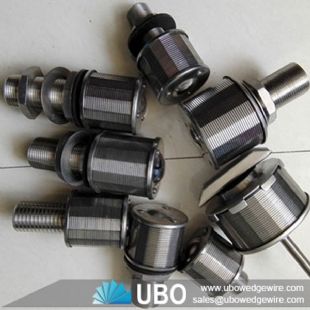

stainless steel wedge wire screen filter nozzles/filter strainer
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen nozzle |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of stainless steel wedge wire screen filter nozzles/filter strainer
Stainless steel wedge wire screen filter nozzle is a kind of water filter nozzle. It is made of wedge wire screen. The filtering slot is V shape. The special structure makes the filter nozzle a high filtering efficiancy .

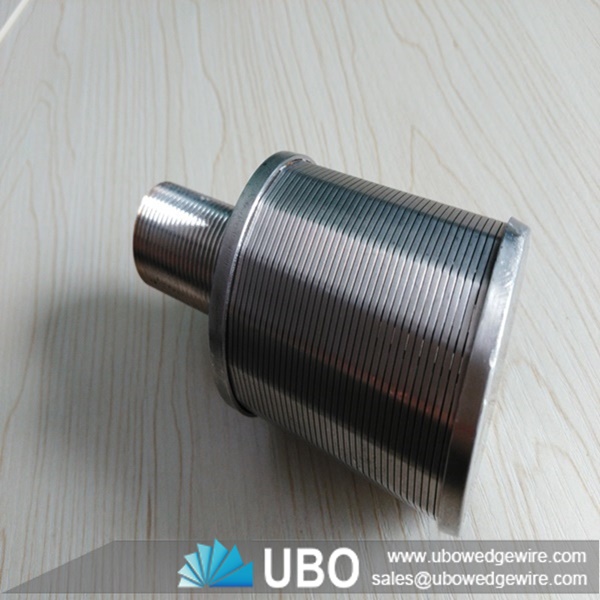

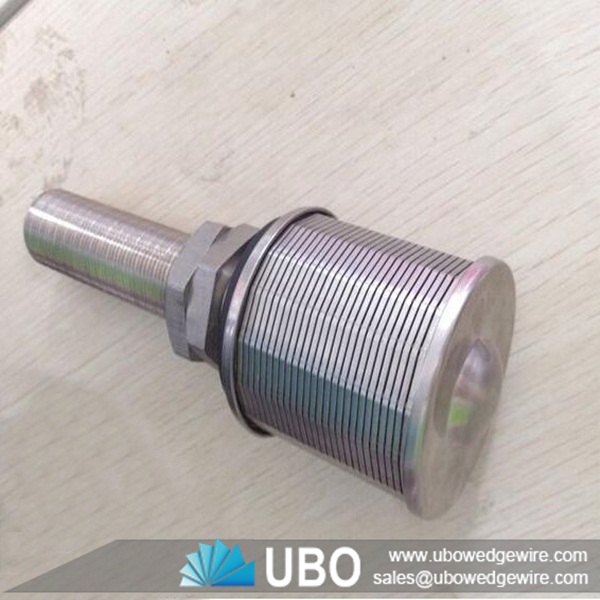

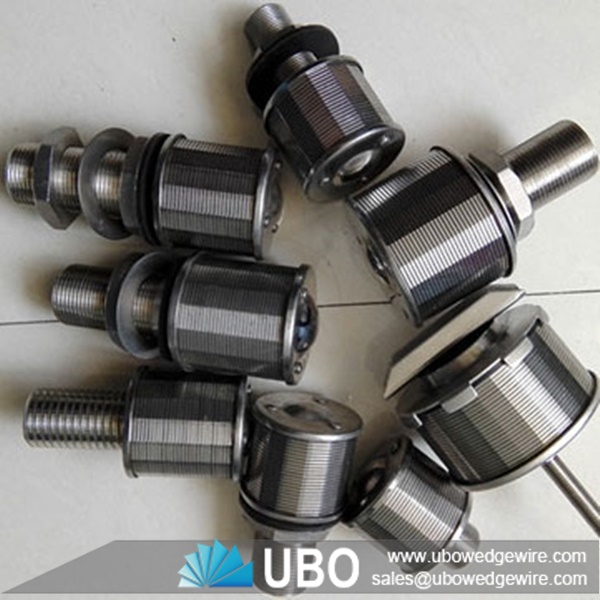

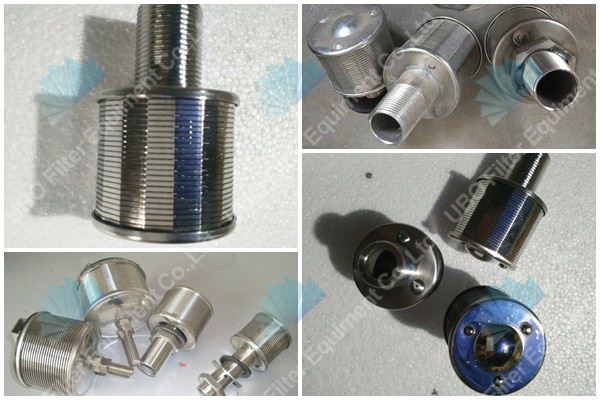

Detail of stainless steel wedge wire screen filter nozzles
Advantages of stainless steel wedge wire screen filter nozzles/filter strainer
1) Type 316L stainless steel construction.
2) Continuous slot design provide large circulation area
3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5) Wedge wire screen is highly resistant to plugging.
6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7) Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.
Usages of stainless steel wedge wire screen filter nozzles/filter strainer
The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.
Specifications of stainless steel wedge wire screen filter nozzles/filter strainer:
No. |
Slot |
Dimension |
Flow area/mm2 (Slot: 0.2mm) |
||||
D |
H |
L |
M |
L1 |
|||
1 |
0.2-0.5 |
45 |
30 |
180 |
25 |
According to custom’s request |
330 |
2 |
45 |
40 |
190 |
25 |
450 |
||
3 |
53 |
40 |
190 |
30 |
500 |
||
4 |
53 |
50 |
200 |
30 |
630 |
||
5 |
53 |
40 |
235 |
32 |
500 |
||
6 |
57 |
40 |
190 |
32 |
605 |
||
7 |
57 |
50 |
200 |
32 |
750 |
