stainless steel wedge wire screen filter nozzles

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel wedge wire screen filter nozzles

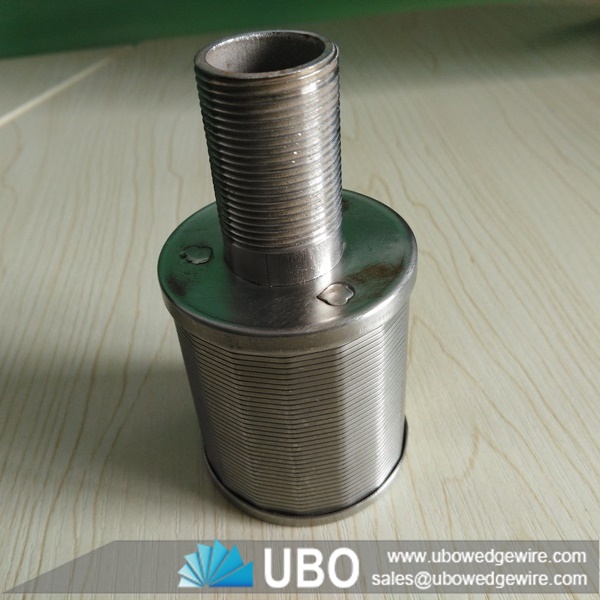

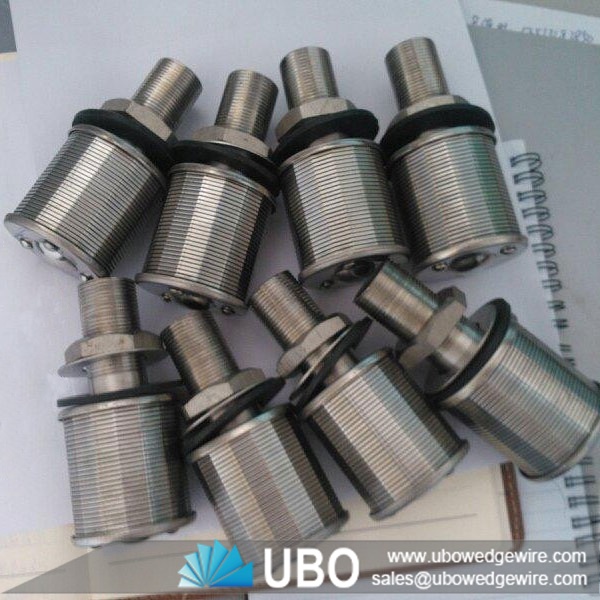

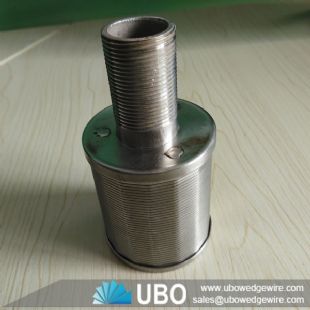

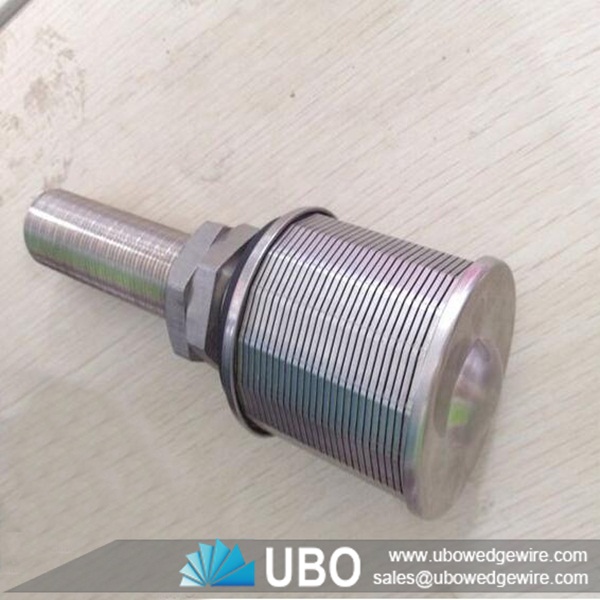

UBO design and produce a full ranges of wedge wire nozzles with a blind cap on one end and washer fixed with a threaded stem on the other end. They can be secured with a nut and washer, usually installed in a vessel by an orifice plate. They can be used in water treatment processes, sugar processes, or ion exchange.



Feature of stainless steel wedge wire screen filter nozzles



Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.
Flexible Design - we can supply units with any features you may require.

Application of stainless steel wedge wire screen filter nozzles

Wedge wires can be employed in almost all industrial processes which require very fine and uniformly accurate aperture, combining rapid discharge of material and high mechanical strength. Some of the specialized applications of these screens are given below -
Wedge wire screen used in industries for water, oil filtration equipments like

Filteration Equipments
Filtration Systems.
Filters.
Wedge Wire Screen.

stainless steel wedge wire screen filter nozzles



Specifications of stainless steel wedge wire screen filter nozzles:

Type

Slot

Dimension

Flow area

D

H

L

M

A

0.25

Φ45

40

90

M20

450m3

A1

0.25

Φ45

40

90

M24

500m3

(flow 0.5T/H)

B

0.25

Φ53

45

100

M24

570m3

(flow  1T/H)

B1

0.25

Φ53

45

100

M32

600m3

(flow  1.5T/H)

B3

0.25

Φ57

55

110

M32

800m3

(flow 2T/H)

C

0.2-0.5

Φ70

45

110

M32

800m3

C1

0.2-0.5

Φ70

55

120

M32

1000m3

stainless steel wedge wire screen filter nozzles



Packaging and Transportation of stainless steel wedge wire screen filter nozzles:

transportation
