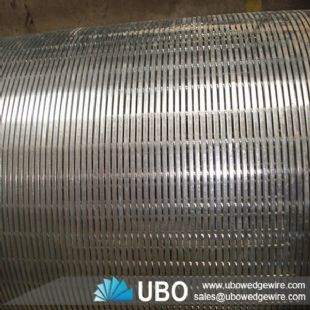

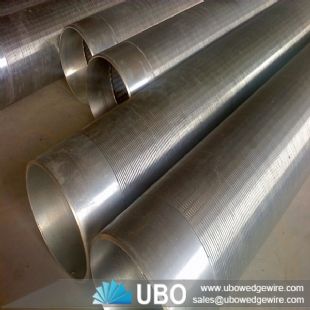

stainless steel wedge wire oil screen pipe for petrochemical

More Views

stainless steel wedge wire oil screen pipe for petrochemicalstainless steel wedge wire oil screen pipe for petrochemicalstainless steel wedge wire oil screen pipe for petrochemical

stainless steel wedge wire oil screen pipe for petrochemical

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel wedge wire oil screen pipe for petrochemical

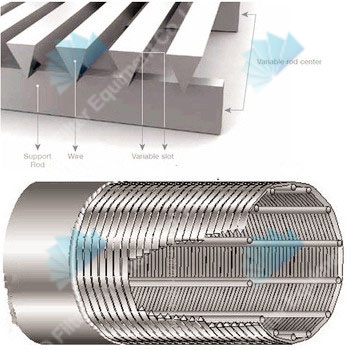

Slot opening for stainless steel wedge wire oil screen pipe are manufactured by spacing successive turns of the outer wire to produce the desired slot size. All slots should be cleaned and free of burrs and cuttings.


Each slot opening between adjacent wires is V-shaped, from the special shape of wire used to form the screen surface. The V-shaped openings designed to be non clogging, are narrowest at the outer face and widen inwardly.

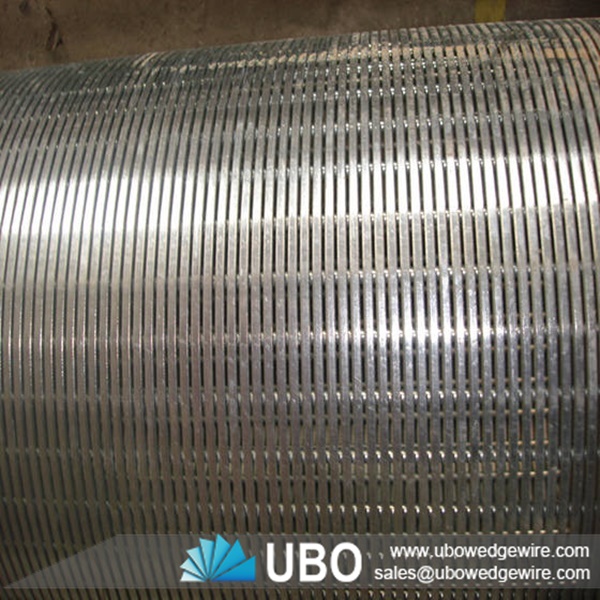

stainless steel wedge wire oil screen pipe for petrochemical

Features of stainless steel wedge wire oil screen pipe for petrochemical

1) Screens with large open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2) Low cost operation

Screens with large open area shall favor groundwater filtration. Abundant water will reduce the water level’s down, thus to save energy consumption.

3) Under the same condition, large open area can make the speed of groundwater’s enter into the screen much slower than any other filtration apparatus, which will avoid sand entering into screen because of high pressure, which reduce the abrasion of the pump.

4) Extending the service life of wells

Comparatively, groundwater’s entering into screen with larger open area is much easier than that entering into smaller open area screen.

The slow water flow will extend the service life of the wells.

Applications of stainless steel wedge wire oil screen pipe for petrochemical

This johnson screen pipe is applied to oil sol ution containing wax oil and asphalt or with high viscosity, it is widely applied in water treatment coarse and precise filtration of various industries, such as, power oil wells, gas wells, chemical, mining, paper making, environmental protection, metallurgy, sand—proof, decorative.

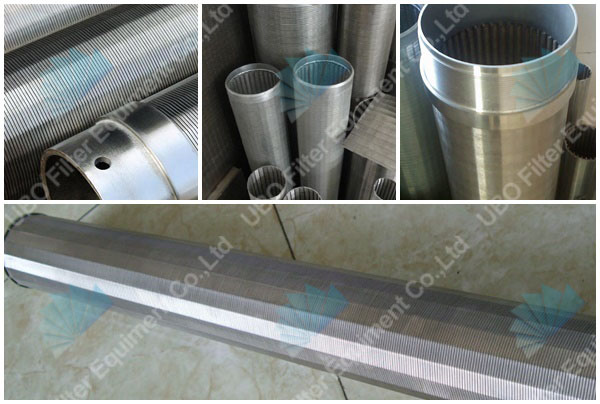

stainless steel wedge wire oil screen pipe for petrochemical

Specifications of stainless steel wedge wire oil screen pipe for petrochemical:

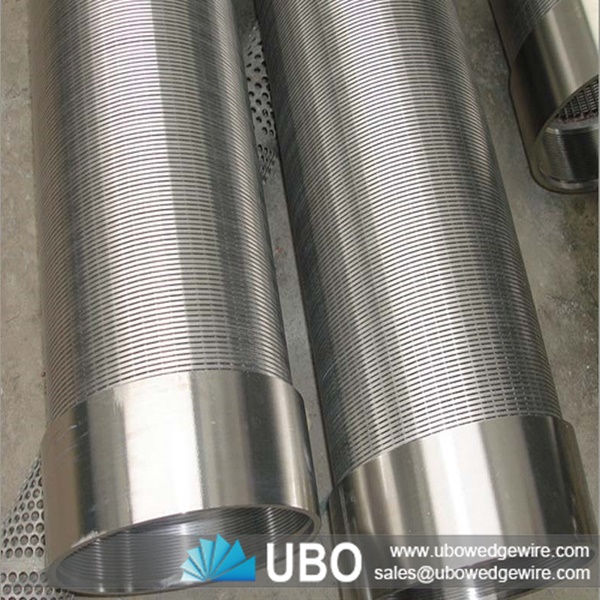

stainless steel wedge wire oil screen pipe for petrochemical


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length:

up to 6 meters

Diameter:

  from 25mm to 1200mm.

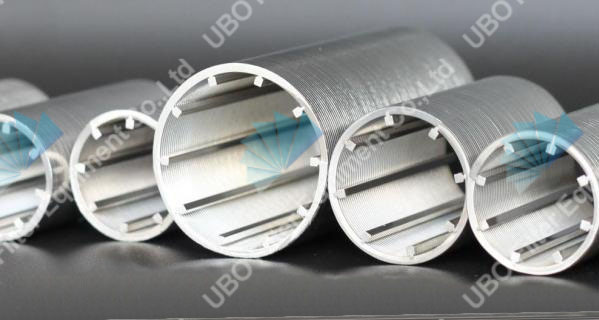

Packaging and Transportation of stainless steel wedge wire oil screen pipe for petrochemical:

transportation
