Stainless steel Wedge Wire strainer wedge wrap wire screen pipe
Category: | Wedge Wire Pipe&Cylinder |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen pipe |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless steel Wedge Wire strainer wedge wrap wire screen pipe

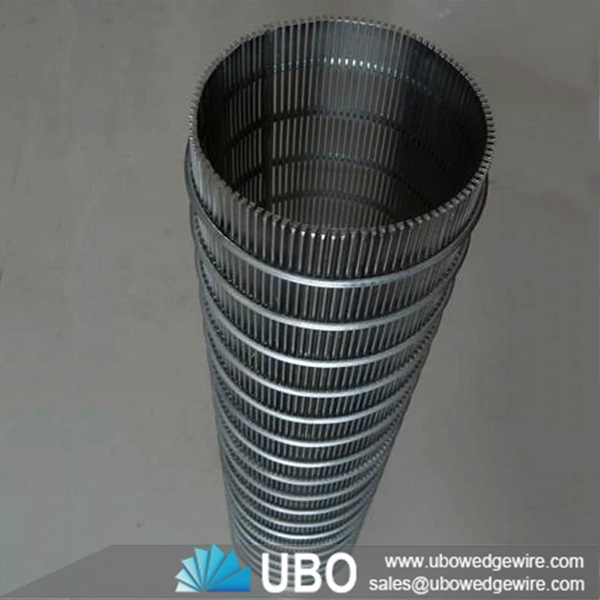

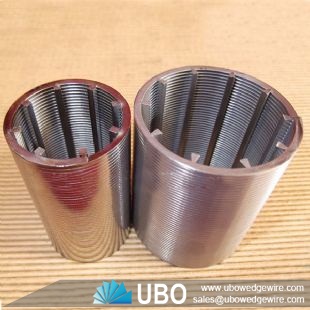

Stainless steel Wedge Wire strainer wedge wrap wire screen pipe is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire.The warp is triangular wire (V-shaped wire). V-wirewedge wire screen pipes have a robust structure and large open area, as well as accurate slot dimension.
At the same time, water well screen stainless steel Wedge Wire wedge wire screen tube have many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.
Application of Stainless steel Wedge Wire strainer wedge wrap wire screen pipe
The v wire wedge wire screen pipe are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment.
Advantages of Stainless steel Wedge Wire strainer wedge wrap wire screen pipe
A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.
Specifications of Stainless steel Wedge Wire strainer wedge wrap wire screen pipe:
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
Note: other specifications available as per request |
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length |
up to 6 meters. |
Diameter |
from 25mm to 1200mm. |
End connection |
Plain beveled ends, flanged or threaded couplings |
