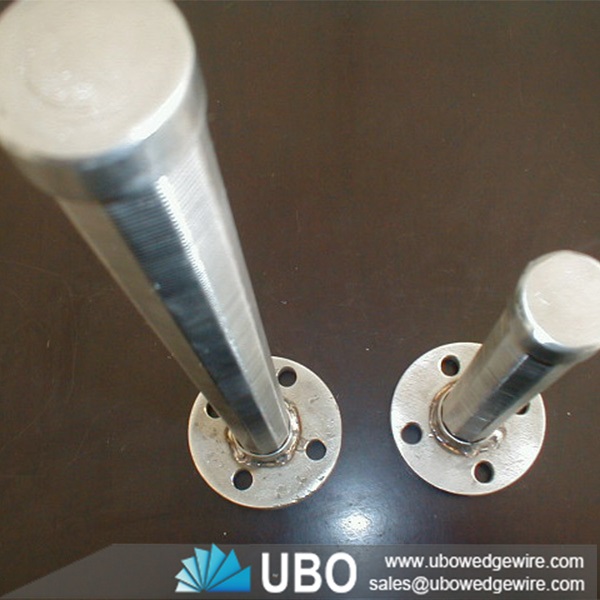

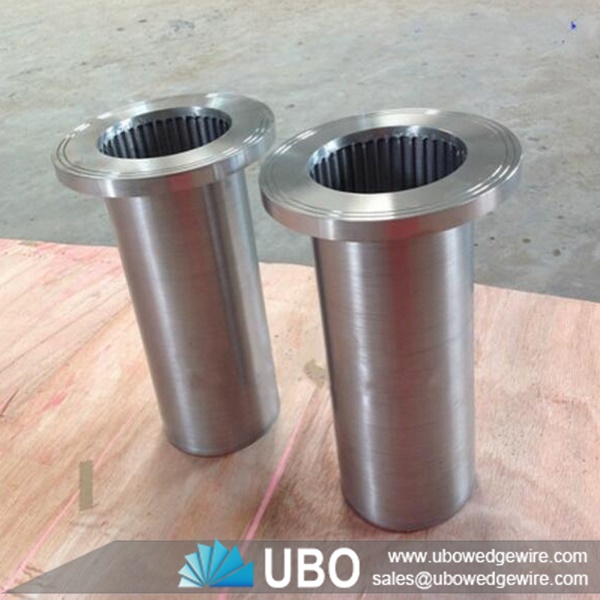

stainless steel wedge wire media trap for filtration

More Views

stainless steel wedge wire media trap for filtrationstainless steel wedge wire media trap for filtrationstainless steel wedge wire media trap for filtration

stainless steel wedge wire media trap for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel wedge wire media trap for filtration

Stainless steel wedge wire media trap provide a high percentage of open area thus minimizing pressure loss through the system. Your resin trap can be designed to suit either new or existing strainer bodies. UBO screen resin traps are used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly. UBO offers a complete range of resin trap styles to suit virtually any application. All are available in a full range of construction materials with a variety of connecting flanges and housings. In vessels using hydrochloric acid for regeneration, the resin trap must be of hastelloy construction.

Applications of stainless steel wedge wire media trap for filtration

wedge wire screen resin traps connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

Features of stainless steel wedge wire media trap for filtration

1) It has high mechanical strength, can bear large pressure drop.

2) The wedge type slot can improve backflushing and regeneration performance.

3) Resistance to pressure, temperature, aging, corrosion, uedes in kinds of fluid.

4) Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

stainless steel wedge wire media trap for filtration

Specifications of stainless steel wedge wire media trap for filtration:

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings



stainless steel wedge wire media trap for filtration
