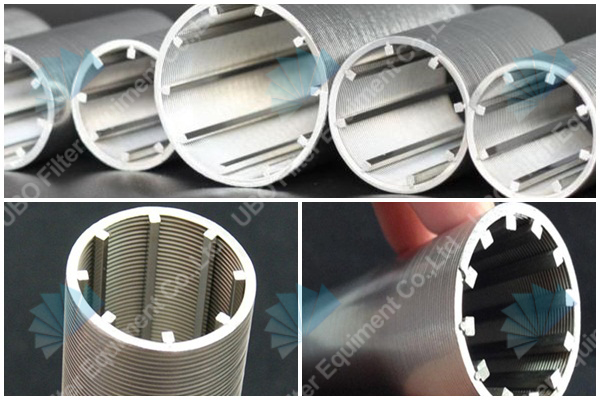

stainless steel wedge wire filter for liquid filtration

More Views

stainless steel wedge wire filter for liquid filtrationstainless steel wedge wire filter for liquid filtrationstainless steel wedge wire filter for liquid filtration

stainless steel wedge wire filter for liquid filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel wedge wire filter for liquid filtration

Stainless steel wedge wire filter is a sieve made tram looped wires formed into deep wedge-shaped section. Individual wedge wires are built into 'Panels" by threading cross rods of suitable diameter through the loops. The whole is then clamped and made secure usually by riveting or putting ring nuts over the cross rod ends or by welding.
The Wedge Wire Screens can be supplied in various shapes and forms as per the requirements such as flat panel, curved sieve bned screen,conical basket, cylinders screen either in one piece or in segments. For curved, cylindrical and conical screens in most cases the cross rods lie along the circumference and profile wires run parallel to the axis. Occasionally this arrangement is reversed.

Advantages of stainless steel wedge wire filter for liquid filtration

Stainless steel wedge wire filter provide a unique combination of the most important features required for maximum screening efficiency.
1. Free Clearance
The wedge-shaped sections of the wire form apertures that become progressively wider in a
downward direction, thus ensuring rapid flow of material through them. Clogged and blinded apertures are reduced to an absolute minimum.

2. Lateral Strength
In our opinion no form of screening surface with apertures as fine as those of wedge wire screens, can compare with the mechanical strength and working efficiency of wedge wire.
3. Percentage Open Area
For a given aperture size, wedge wire screens have a much larger percentage of open area than conventional sieves.

4. Wearing Life
Owing to a greater wearing area being provided by flat top surfaces, wedge wire screens retain their aperture for a longer duration than round wire screens.

Usages of stainless steel wedge wire filter for liquid filtration

This screen pipe can be used with deep well pump to dive the water pump, also can be used in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

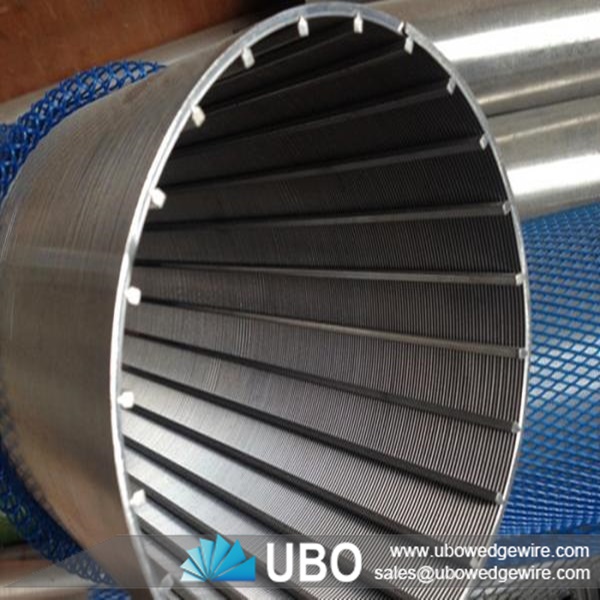

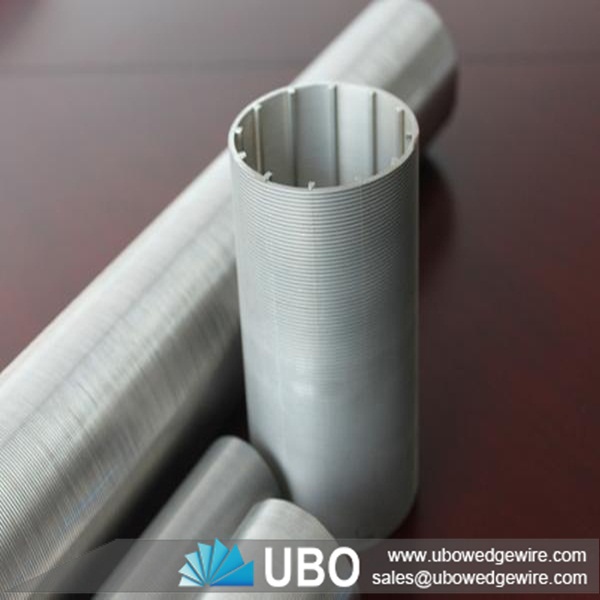

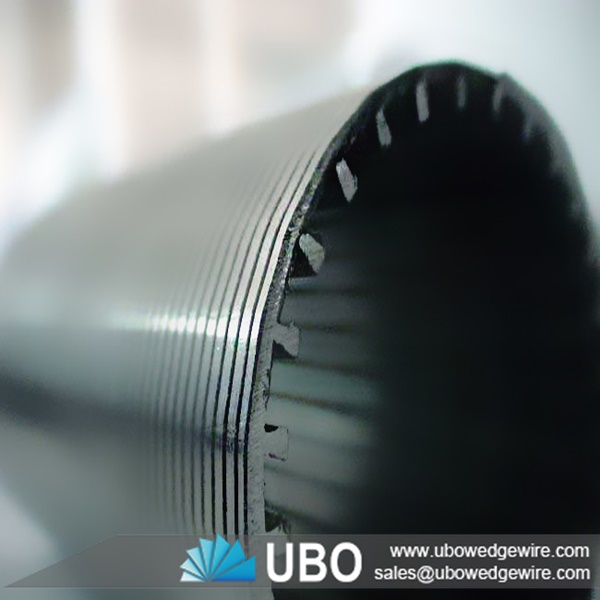

stainless steel wedge wire filter for liquid filtration

Specifications of stainless steel wedge wire filter for liquid filtration:

stainless steel wedge wire filter



SIZE
(INCH)

O.D
(MM)

SLOT
(INCH)

LENGTH
(M)

COLLAPSE
STRENGTH
(PSI)

TENSILE
WEIGHT
(TON)

WRAP(THICK*DEEP)
(MM)

RODS
(MM)

4

117

0.040

3

395

6

2.2*3.0

3.8MM/22

4

114.3

0.040

3

395

6

2.3*3.0

3.8MM/22

6

168.3

0.040

3

252

8

2.3*3.5

3.8MM/32

8

219.1

0.010

3

399

10.5

3.0*5.0

3.8MM/48

8

219.1

0.020

3

370

10.5

3.0*5.0

3.8MM/48

8

219.1

0.040

3

323

10.5

3.0*5.0

3.8MM/48

10

273.1

0.010

3

206

11

3.0*5.0

3.8MM/50

10

273.1

0.020

3

191

11

3.0*5.0

3.8MM/50

10

273.1

0.040

3

167

11

3.0*5.0

3.8MM/50

Packaging and Transportation of stainless steel wedge wire filter for liquid filtration:

transportation
