stainless steel wedge wire cylinder screen for filtration

More Views

stainless steel wedge wire cylinder screen for filtrationstainless steel wedge wire cylinder screen for filtrationstainless steel wedge wire cylinder screen for filtration

stainless steel wedge wire cylinder screen for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel wedge wire cylinder screen for filtration

stainless steel wedge wire cylinder screen can be designed with slot openings and wires running radially on the outside surface of the screen cylinder (above left) or they can be positioned axially on the inside of the cylinder (above right)

Screen cylinders are manufactured in various diameters from 1/2" pipe size to 35" . Screen cylinders (above right) can be fabricated into larger diameters. Each intersection of wedge wire and support rod is welded for strength and durability.
Various wedge wire and support rod combinations can be used to produce the best screen .

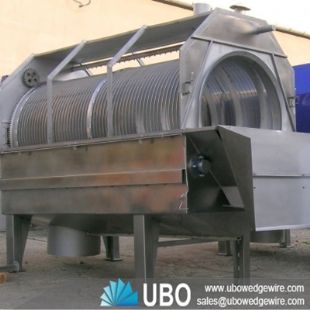

Rotary Screens typically use wedgewire for the screening media. The above externally fed unit has a spiral wound wedgewire screen drum 36" OD x 120" long.

Features of stainless steel wedge wire cylinder screen for filtration

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

Wedge wire which avoids clogging and ensures uninterrupted flow.

Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).

Application of stainless steel wedge wire cylinder screen for filtration

waste water treatment
vegetable and food processing
sugar mills
paper & pulp industry

stainless steel wedge wire cylinder screen for filtration

Specifications of stainless steel wedge wire cylinder screen for filtration:


Diameter (mm)

Φ20, Φ50, Φ53, Φ57, Φ60, Φ65, Φ70, Φ75, Φ80, Φ100, Φ125, Φ200, Φ245, Φ300, Φ320, Φ360, Φ400, Φ450, Φ500, Φ550, Φ600, max. 1200

Slot (mm)

0.010, 0.015, 0.02, 0.05, 0.1, 0.15, 0.2, 0.25, 0.3, 0.5......15 ...

Length (mm)

50~6000

Material

stainless steel (AISI 304, 316, 316L...), low carbon steel, low carbon steel galvanized zinc, steel treated with plastic spraying

Note

Non-standard offer, can be produced as per request



stainless steel wedge wire cylinder screen for filtration

Packaging and Transportation of stainless steel wedge wire cylinder screen for filtration:



transportation
