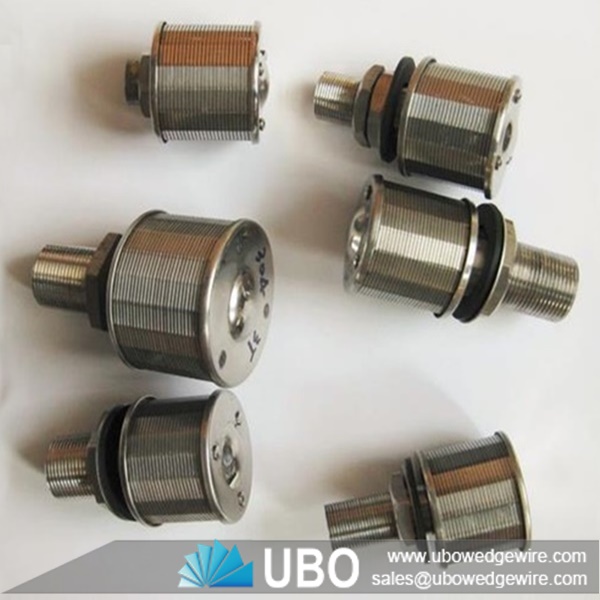

stainless steel wedge wire 316 water screen filter nozzle for liquid filtration

More Views

stainless steel wedge wire 316 water screen filter nozzle for liquid filtrationstainless steel wedge wire 316 water screen filter nozzle for liquid filtrationstainless steel wedge wire 316 water screen filter nozzle for liquid filtration

stainless steel wedge wire 316 water screen filter nozzle for liquid filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel wedge wire 316 water screen filter nozzle for liquid filtration

Stainless steel wedge wire 316 water screen filter nozzle is manufactured by the V-shaped wire through a special welding technology welded on the ribs(vertical wire or support wire). It has high welding strength, uniform gap, strong corrosion resistance, big effective filtration area, high penetration efficiency, simple structure, etc.

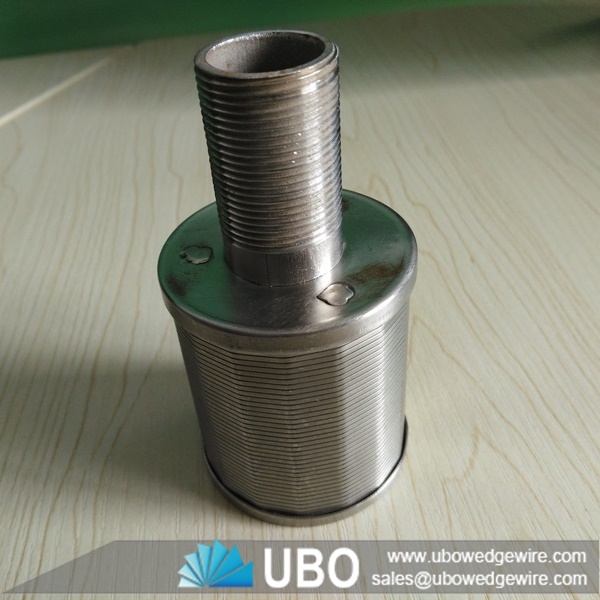

stainless steel wedge wire 316 water screen filter nozzle for liquid filtration

Advantages of stainless steel wedge wire 316 water screen filter nozzle for liquid filtration

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Usages of stainless steel wedge wire 316 water screen filter nozzle for liquid filtration

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

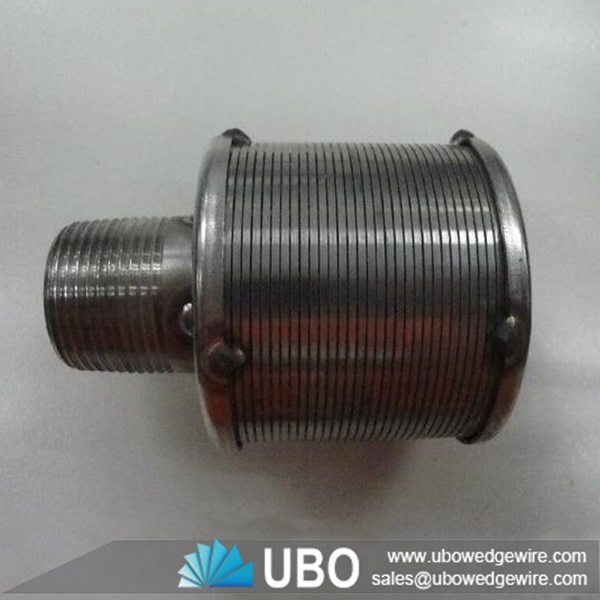

stainless steel wedge wire 316 water screen filter nozzle for liquid filtration

Specifications of stainless steel wedge wire 316 water screen filter nozzle for liquid filtration:

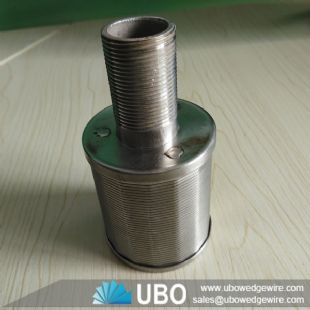

stainless steel wedge wire 316 water screen filter nozzle for liquid filtration


No.



Type



Ton



Slot

Opening



Size

0.2-0.25mm slot opening Area of through-flow mm2(reference)

D

L1

L

M

1

SH45-1-C

0.5

0.2-0.5

45

45

95

24

500

2

SH53-2-B

1

0.2-0.5

53

45

100

24

570

3

SH53-2-C

1.5

0.2-0.5

53

50

110

32

700

4

SH57-3-B

2

0.2-0.5

57

45

110

32

600

5

SH70-4-B

3

0.2-0.5

70

55

120

32

1000

















Packaging and Transportation of stainless steel wedge wire 316 water screen filter nozzle for liquid filtration:

transportation
