Quality Wedge Wire Screen Manufacturer in China

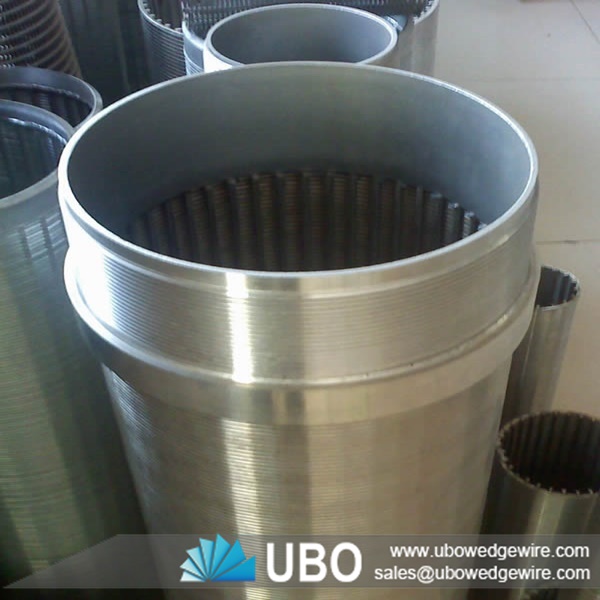

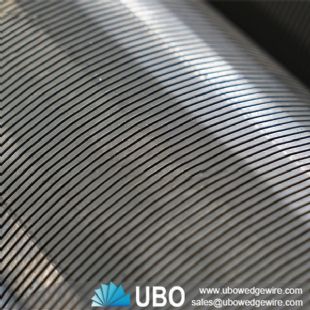

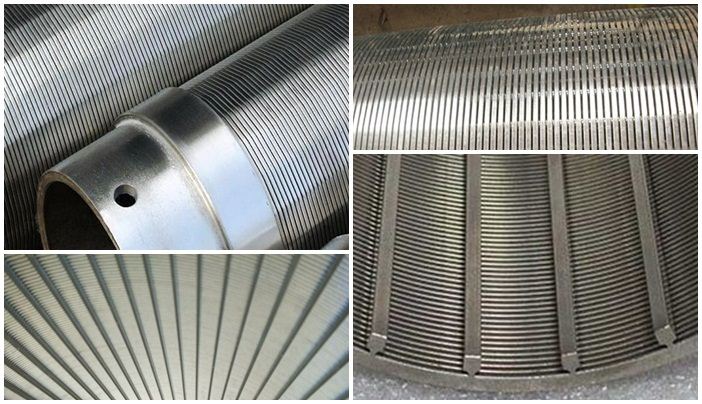

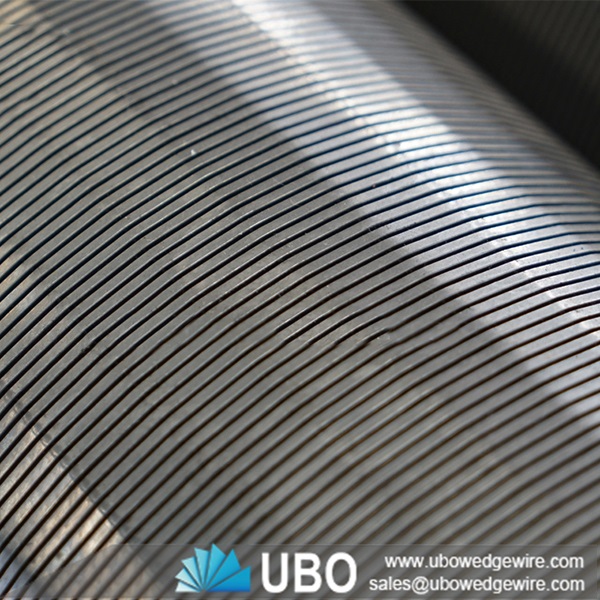

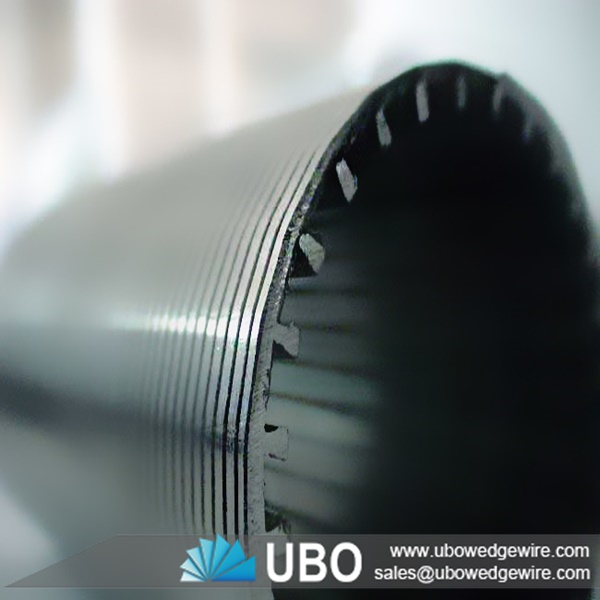

stainless steel water slot well screen pipe for filtration

More Views

stainless steel water slot well screen pipe for filtrationstainless steel water slot well screen pipe for filtrationstainless steel water slot well screen pipe for filtration

stainless steel water slot well screen pipe for filtration

Category:Wedge Wire Application
Material:stailess steel
Properties:wegde wire screen
Application:water filtration,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel water slot well screen pipe for filtration

The stainless steel water slot well screen pipe an avoid blockage and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can filter sand better.

stainless steel water slot well screen pipe for filtration

Features of stainless steel water slot well screen pipe for filtration

1) Continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.

2) V-type profile of the structure to avoid clogging and ensure smooth flow.

3) Continuous long-term effective use of the pore.

4) Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.

5) Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.

Advantages of stainless steel water slot well screen pipe for filtration

1) Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.

2) Low cost operation.

3) Reduce the abrasion of the pump.

4) Extend the life span of wells, low-carbon, Galvanized or stainless steel construction.

Applications of stainless steel water slot well screen pipe for filtration

Wedge wire products are used for solid / liquid and solid / gas separation, sizing, dewatering and media retention in Oil & Gas wells, Water Wells, monitoring & soil sanitation, the (petro) chemical industry, food and process industry and architecture.


           stainless steel water slot well screen pipe for filtration


Specifications of stainless steel water slot well screen pipe for filtration:

Material:  Carbon steel or stainless steel

Diameter: 1-30inch

Minimum slot: 0.01mm

Wall thickness: 4mm or 12mm

Standard length: 5.8-6meters

stainless steel water slot well screen pipe for filtration

Screen Size
ID
OD
Female thread dismeter
in
mm
in
mm
in
mm
in
mm
2
51
2
51
25/8
67
23/4
70
3
76
3
76
35/8
92
33/4
95
4
102
4
102
45/8
117
43/4
121
5
127
5
127
55/8
143
53/4
146
6
152
6
152
65/8
168
7
178
8
203
8
203
85/8
219
91/4
235
10
254
10
254
103/4
273
113/8
289
12
305
12
305
123/4
324
133/8
340
14
356
13 1/8
333
14
356
-
-
16
406
15
381
16
406
-
-
20
508
18 3/5
476
20
508
-
-


Packaging and Transportation of stainless steel water slot well screen pipe for filtration:

transport
