Quality Wedge Wire Screen Manufacturer in China

stainless steel v wire screen pipe for industry

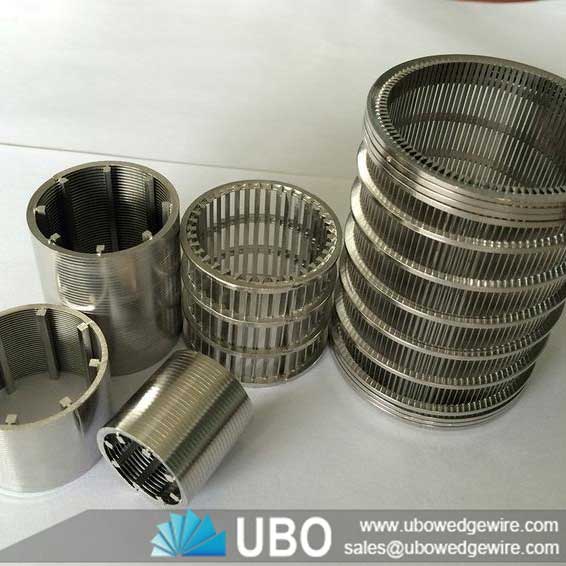

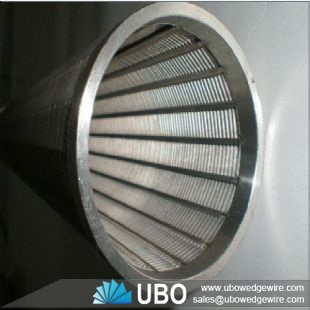

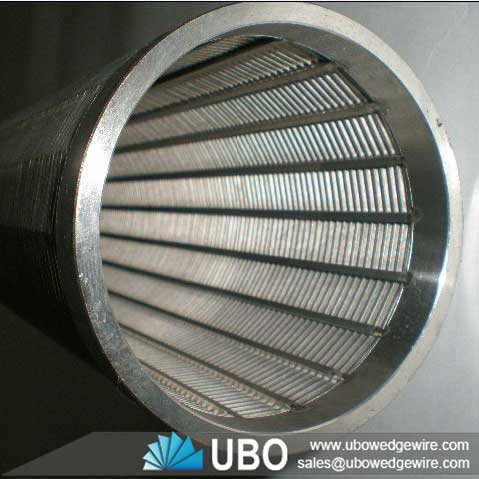

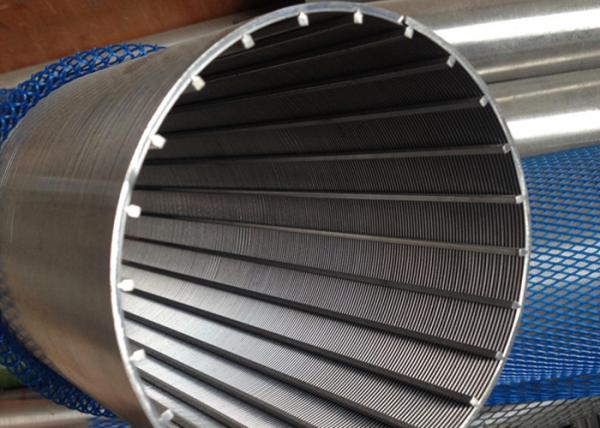

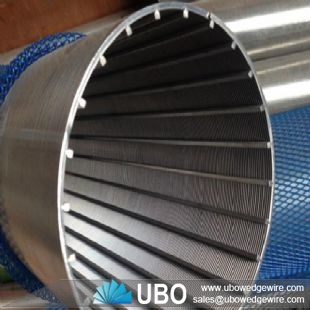

More Views

stainless steel v wire screen pipe for industrystainless steel v wire screen pipe for industrystainless steel v wire screen pipe for industry

stainless steel v wire screen pipe for industry

Category:Wedge Wire Application
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:oil filtration,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel v wire screen pipe for industry

stainless steel v wire screen pipe manufactured by wrapping a shaped wire around an internal array of longitudinal rods.The wire and rod, generally made from carbon or stainless steel are joined by resistance welding. Screen sections are usually twenty feet long. Commonly referred to as continuous slot or wire wrap screen, this product was originally developed to overcome problems associated with cable tool wells drilled in fine grained.

Features of stainless steel v wire screen pipe for industry

1) adoption of the wedged wires made a V profile slot. This design ensures the fluent of water filteration and more effective

2) wedged wires are spirally wound around a cage of longitudinal support rods in succession which formed high-density uniformed slots and avoid clogging. So that the high production efficiency and long life service of the well are gaurenteed.

3) arrangement of the longitudinal support rods and the successive slots provide higher compressive property

 Usages of stainless steel v wire screen pipe for industry

The vee slot wedge wire screen are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water,oil or gas filter and other filtration equipment.

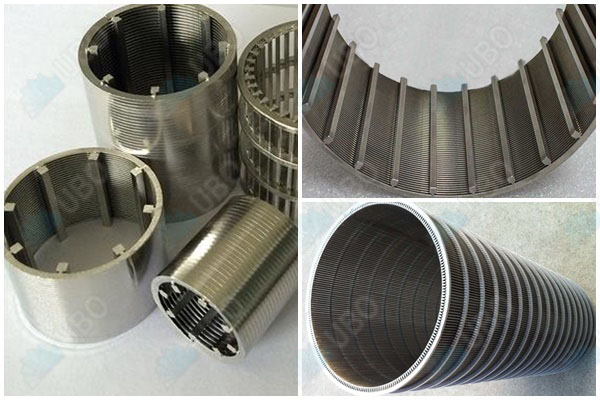

            stainless steel v wire screen pipe

Specifications of stainless steel v wire screen pipe for industry:


Material:AISI304/316/316L,etc.

Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm

Slot Size
0.10 ~ 6.00mm ,also can be customized as your request.

Length
Max 6 meters.

Diameter
25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement

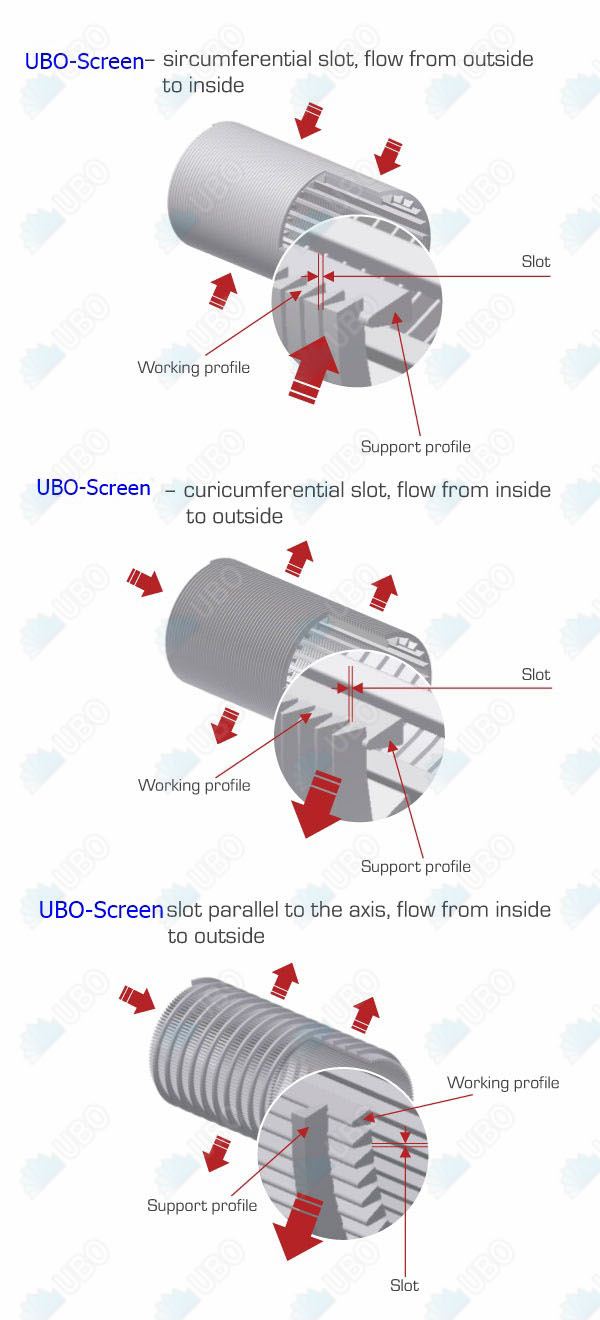

screen pipe

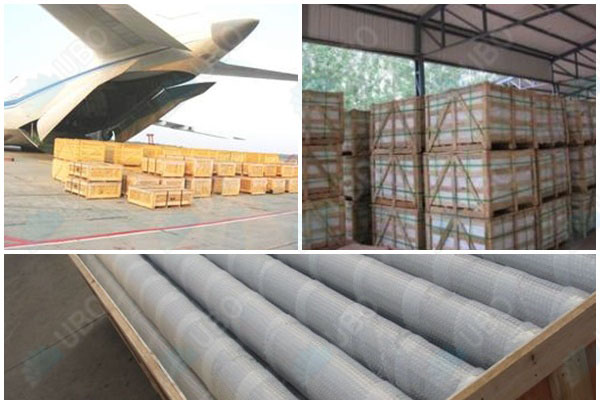

Packaging and Transportation of stainless steel v wire screen pipe for industry:

transport
