stainless steel v wire screen panel for filtration
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 302,304,316,316L |
Properties: | wedge wire screen |
Application: | water , oil, food, liquid filtration, industry filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

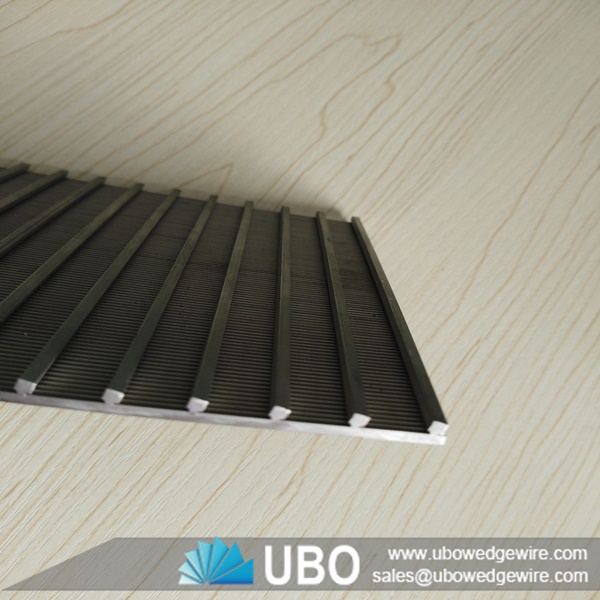

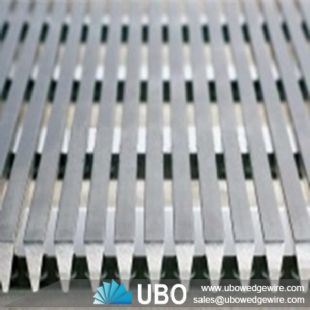

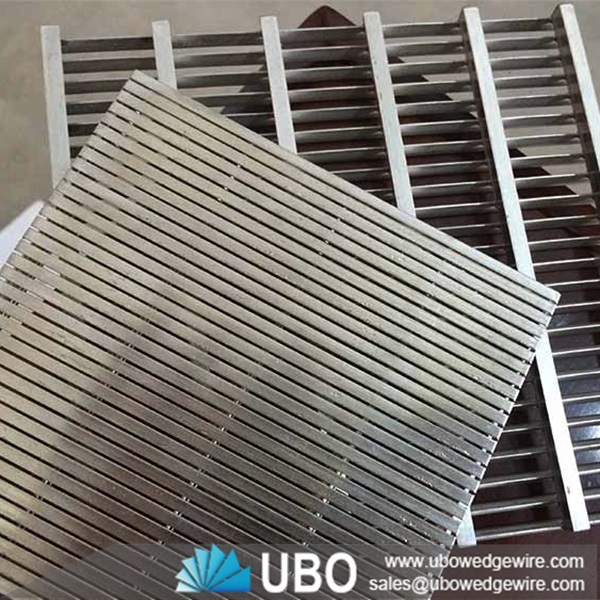

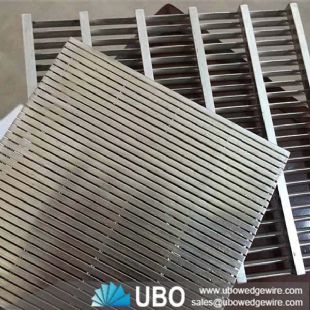

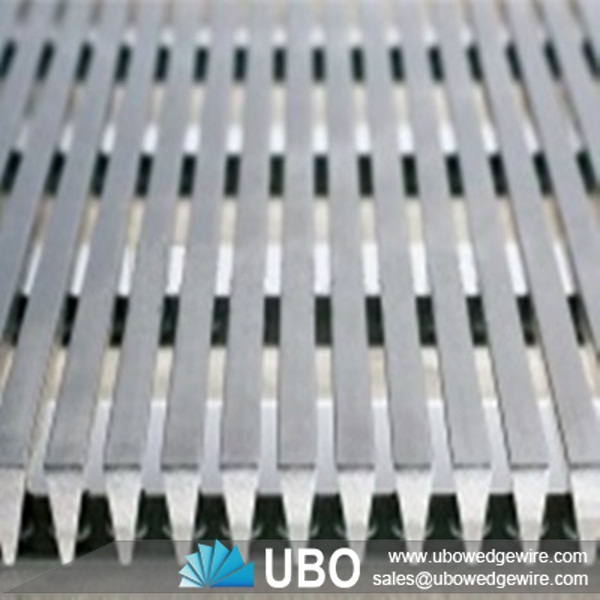

Details of stainless steel v wire screen panel for filtration
Stainless steel v wire screen panel is a metal mesh structural elements for screening and filtering. It is widely used in many industries, filtration, dehydration, removing mud and other operations. It has high strength, rigidity and load capacity, can be made into various shapes of rigid screening.
UBO company has the most sophisticated processing equipment and the most advanced detection system. Precision is up to ± 0.05 mm, hole accuracy is up to ± 0.05 mm ,sieve slit is up to 0.1 mm minimum.
Advantage of stainless steel v wire screen panel for filtration
1) Excellent roundness
2) Very good slot width precision
3) High mechanical load capacity
4) No form closure connection that would allow vibration of the profiled bars
5) Automated welding process for high-precision manufacturing
6) Perfectly adjusted screen basket profiles
7) Available for all screens
8) Surface finishing as required
Applications of stainless steel v wire screen panel for filtration
Widely using screen for filtration and separation in liquid, gas, mining, food, water treatment, architecture and so on.
Specifications of stainless steel v wire screen panel for filtration:
group 1 |
surface profile:triangle wire,support profile:triangle wire |
|
A1XH1 |
1.5X2.0,1.5X2.5,
2.0X3.5,3.0X4.5,
3.0X5.5,3.5X5.0mm |
|
S |
0.5-4.0mm |
|
A2XH2 |
2.0X3.5,3.0X4.5,
3.0X5.5,3.5X5.0,
5.0X10.0mm |
|
P |
10-300mm |
|
group 2 |
surface profile:triangle wire,support profile:round wire |
|
A1XH1 |
1.5X2.0,1.5X2.5,
2.0X3.5,3.0X4.5,
3.0X5.5,3.5X5.0mm |
|
S |
0.5-4.0mm |
|
D |
2.5-5.0mm |
|
P |
10-300mm |
|
group 3 |
surface profile:triangle wire, support profile:flat wire |
|
A1XH1 |
1.5X2.0,1.5X2.5,
2.0X3.5,3.0X4.5,
3.0X5.5,3.5X5.0mm |
|
S |
0.5-4.0mm |
|
A2XH2 |
1.8X10, 2.0X10,3.0X10mm |
|
P |
10-300mm |
|
group 4 |
surface profile:triangle wire, support profile:wedge wire |
|
A1XH1 |
1.5X2.0,1.5X2.5,
2.0X3.5,3.0X4.5,
3.0X5.5,3.5X5.0mm |
|
S |
0.5-4.0mm |
|
A2XH2 |
A2=2.2-3.0,H2=4.5-5.5mm |
|
P |
10-300mm |
