stainless steel sieve screen panel for filtration

More Views

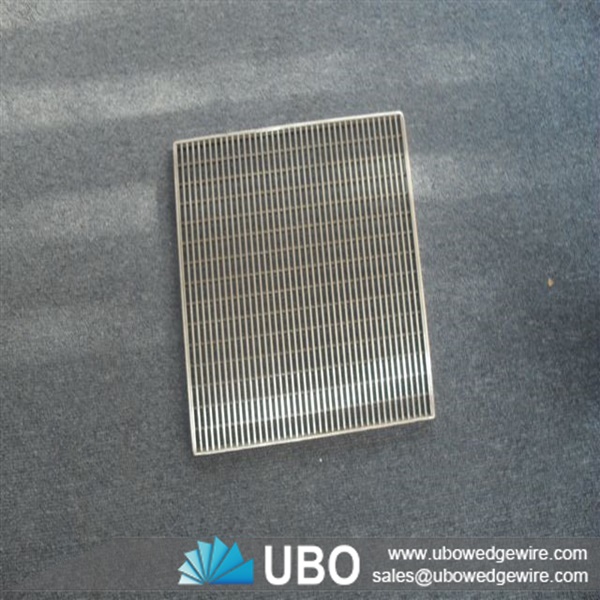

stainless steel sieve screen panel for filtrationstainless steel sieve screen panel for filtrationstainless steel sieve screen panel for filtration

stainless steel sieve screen panel for filtration

Category:Wedge Wire Application
Material:wedge wire screen
Properties:Stainless Steel Filter
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel sieve screen panel for filtration

Stainless steel sieve screen panel has a greater screeing capactity than a flat screen due to forces exerted as material flows against the panel surface.

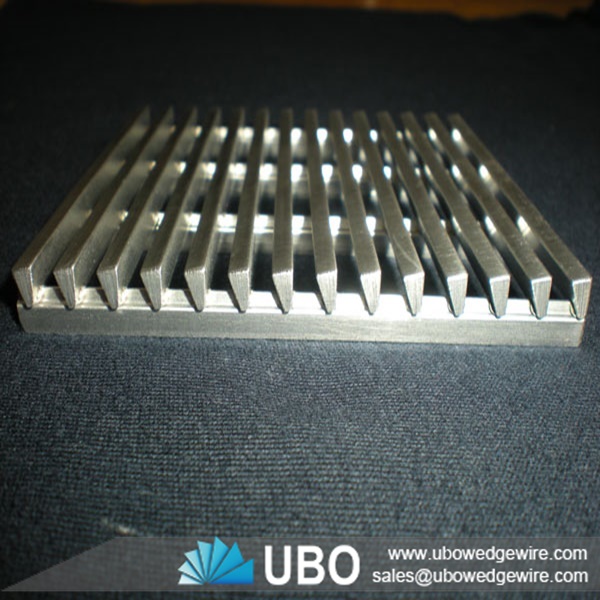

This panel profile wire screen is mounted in a frame with the screen openings perpendicular to the flow

In a typical feed situation,the leading edge of the wedge wire removes the water and fine particles through the over sized particles move across the top of the screen

Separeation size in considerably smaller than screen openings,usually about one-half the opening size.

Sieve bend screens are ideal for sizing and dewatering applications in liquid/solid separation situations.It is extensively used for fine fiber removal in the starch industry.It also is used in other industries such as food processing waste water cleanup and corn wet milling.

Benefits of stainless steel sieve screen panel for filtration

-- Reduced equipment and installation costs

-- Low mantenance costs(No moving parts)

-- Better flow rate and finer fiber removal

-- Little space needed

-- Wide range of applications

-- Longer liftetime

Features of stainless steel sieve screen panel for filtration

Width,length,aperture and wire depend on flow rate and size of particles to be separated


Slot sizes range from 0.025mm to 10mm


Screen material is typically 304/316 SS with end bars.Other materials are available upon request.

Applications of stainless steel sieve screen panel for filtration

-- Fish Diversion Screen Panels

-- Flooring for malt kiln, germination and grain drying

-- Food Processing

-- Hatchery Screens

-- Mineral Processing

-- Surface water intake screens

-- Vibrating or Static intake screens

stainless steel sieve screen panel for filtration

Specifications of stainless steel sieve screen panel for filtration:


Material

low Carbon Galvanized (LCG), Stainless Steel(SS) and Galvanized Steel.
Slot (mm) 0.1、0.25、0.50、0.75、1.00、1.50、2.00、3.00 also achieved upon customer request.
Profile Wire  #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.
Support Rod 1.V shaped. #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.
Steel Flat Steel Flat: 1.5*20mm, 2.0*25mm, 2.5*30mm etc.
Frame Iron Frame, Steel Frame, or Nothing.

stainless steel sieve screen panel for filtration

Packaging and Transportation of stainless steel sieve screen panel for filtration:

transportation
