Quality Wedge Wire Screen Manufacturer in China

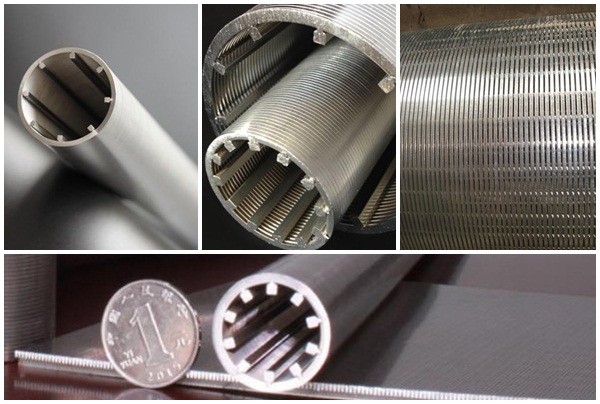

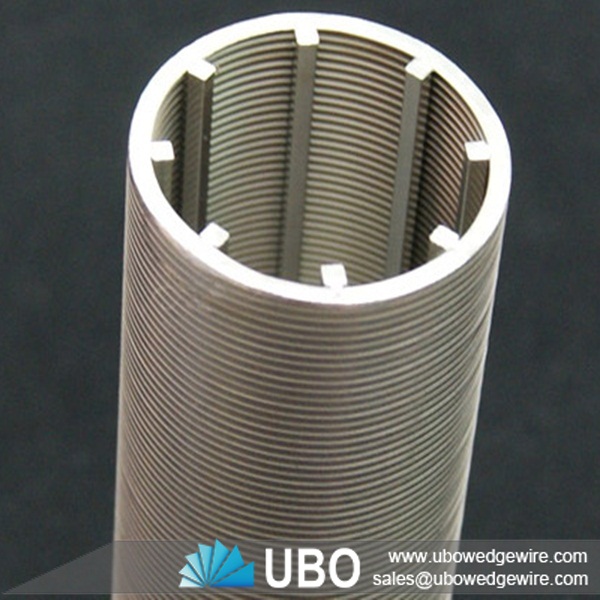

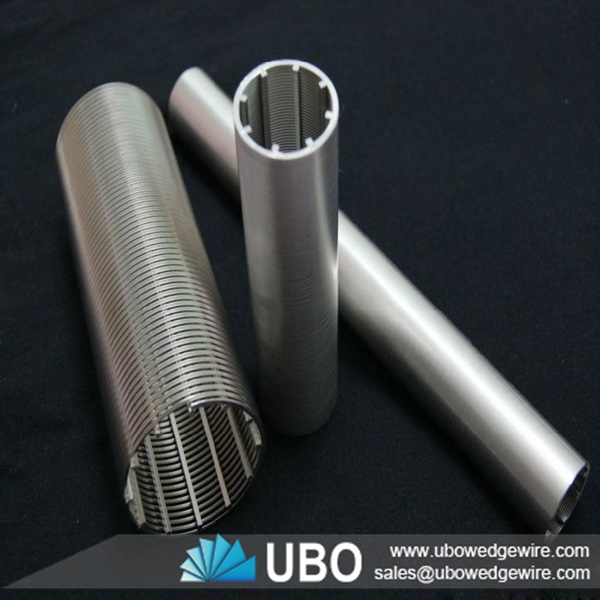

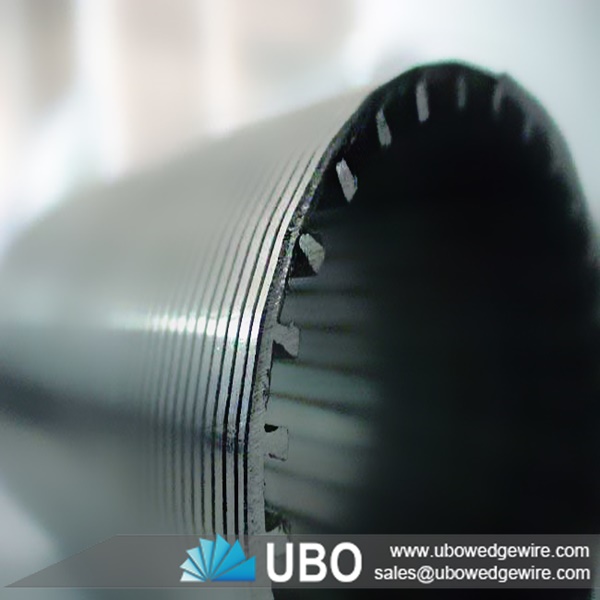

stainless steel screen slot pipe for oil filtration

More Views

stainless steel screen slot pipe for oil filtrationstainless steel screen slot pipe for oil filtrationstainless steel screen slot pipe for oil filtration

stainless steel screen slot pipe for oil filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water filtration,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel screen slot pipe for oil filtration

Stainless steel screen slot pipe is the wedge wire screen in panel type. The panels offer a perfectly flat and smooth surface with rectangular openings. They are made from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range.

Feature of stainless steel screen slot pipe for oil filtration

1.Up to 60% or more free open entry area
2.Installation possible to depths of 2000 m
3.Smaller diameters can be drilled as gravel packing is not necessarily required
4.The slogs can't be clogged due to wedgeshaped surface wires
5.high quality , lower price , fastest delivery

Application of stainless steel screen slot pipe for oil filtration

stainless steel screen slot pipe is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.

stainless steel screen slot pipe for oil filtration

Specifications of stainless steel screen slot pipe for oil filtration:

stainless steel screen slot pipe for oil filtration

SIZE
(inch)
O.D
(mm)
SLOT
(inch)
LENGTH
(m)
Collapse
Strength
(psi)
Tensile
Weight
(ton)
Wire size
(mm)
RODS (mm)
4 117 0.040 3 395 6 2.2*3.0 3.8mm/22
4 114.3 0.040 3 395 6 2.3*3.0 3.8mm/22
6 168.3 0.040 3 252 8 2.3*3.5 3.8mm/32
8 219.1 0.010 3 399 10.5 3.0*5.0 3.8mm/48
8 219.1 0.020 3 370 10.5 3.0*5.0 3.8mm/48
8 219.1 0.040 3 323 10.5 3.0*5.0 3.8mm/48
10 273.1 0.010 3 206 11 3.0*5.0 3.8mm/50
10 273.1 0.020 3 191 11 3.0*5.0 3.8mm/50
10 273.1 0.040 3 167 11 3.0*5.0 3.8mm/50

Packaging and Transportation of stainless steel screen slot pipe for oil filtration:

stainless steel screen slot pipe for oil filtration
