stainless steel pressure screen plate for filtration

More Views

stainless steel pressure screen plate for filtrationstainless steel pressure screen plate for filtrationstainless steel pressure screen plate for filtration

stainless steel pressure screen plate for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel pressure screen plate for filtration

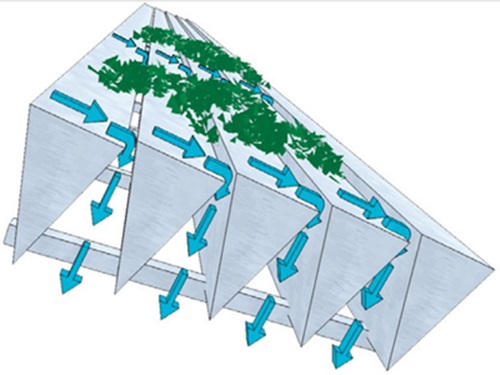

The stainless steel pressure screen plate, also called wedge wire flat screens, wedge wire panels, are manufactured with stainless steel surface profiles and support profiles. The surface profile are welded onto support profiles at each intersection in a 90 degree.

Advantages of stainless steel pressure screen plate for filtration

-- Flat surface.

-- Excellent filtering performance.

-- Accurate distance between supporting profile.

-- Welded production process for solid and strong structure.

-- Good mechanical properties.

-- High strength.

-- High load capacity.

-- Corrosion and rust resistance.

-- Temperature resistance

-- Chemical stability.

Applications of stainless steel pressure screen plate for filtration

Wedge wire screen panels have a wide range of applications, the main applications are sieving and filtration. It can also be used as decorative materials in some buildings. The detailed application fields are as follows:

-- Vibrating screen decking.

-- Surface water intake screens.

-- Fish diversion screen panels.

-- Hatchery screens.

-- Grain drying screen.

-- Malt kin or germination floors.

-- Decorative materials.

stainless steel pressure screen plate for filtration

Specifications of stainless steel pressure screen plate for filtration:

Specifications of stainless steel pressure screen plate for filtration
Material: stainless steel.
Surface profile type: triangle wire.
Support profile type: round bar, rectangular bar, wedge wire, triangle wire.

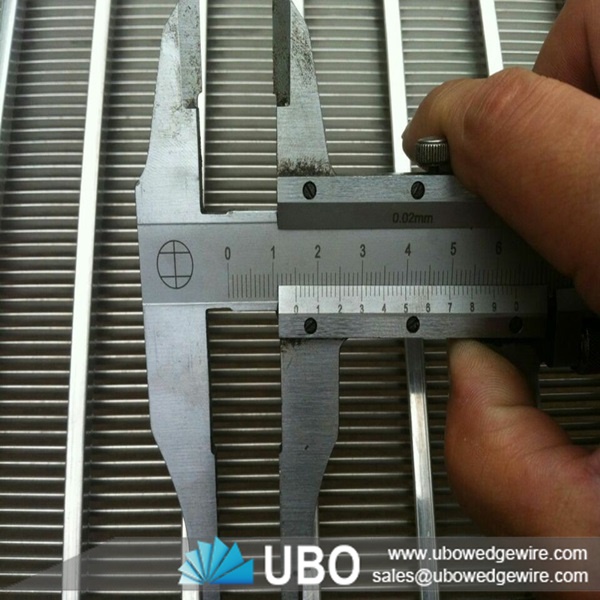

Slot size: 0.05 mm - 10 mm.
Pitch: 10 mm - 35 mm.
Panel width: 500 mm - 2000 mm.
Panel length: 500 mm - 3000 mm.

stainless steel pressure screen plate for filtration

Packaging and Transportation of stainless steel pressure screen plate for filtration:

transportation
