stainless steel liquid filter screen tube for industry
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 302,304,304L,316,316L |
Properties: | wedge wire screen |
Application: | water filtration,liquid filtration,industry filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of stainless steel liquid filter screen tube for industry

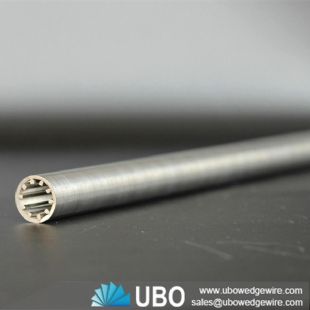

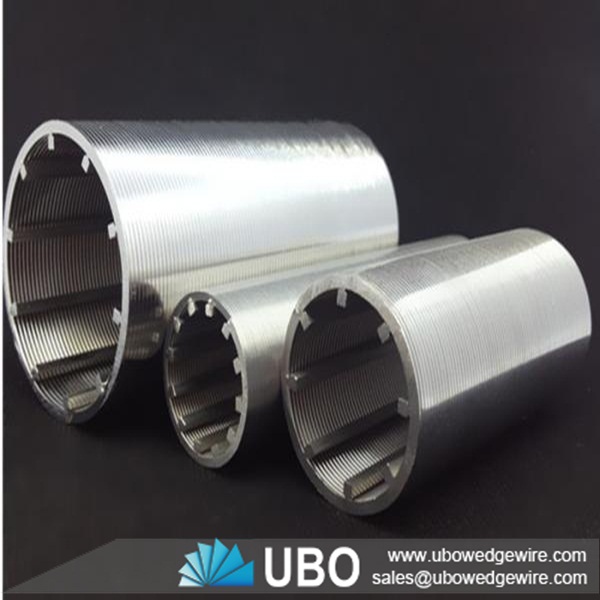

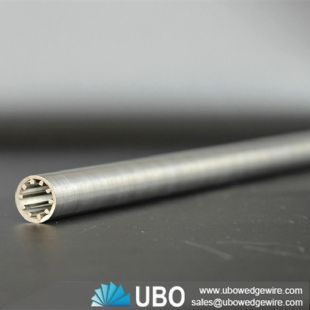

The stainless steel liquid filter screen tube is created by wrapping a profile wire cylindrical around longitudinal placed support rods. All wires and rods are resistance welded at each point of contact.

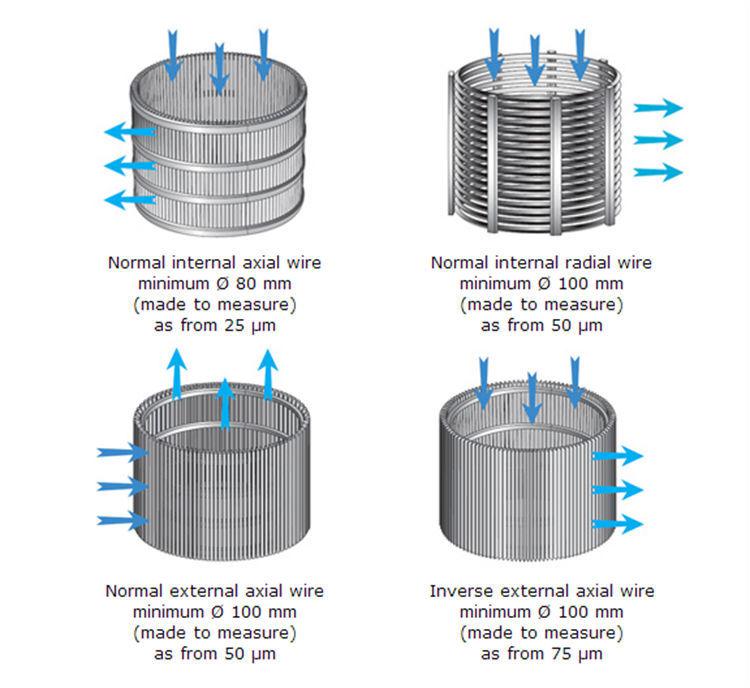

The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods (fixed or variable) allow us to design a screen according your technical or cosmetic specification.
Features of stainless steel liquid filter screen tube for industry

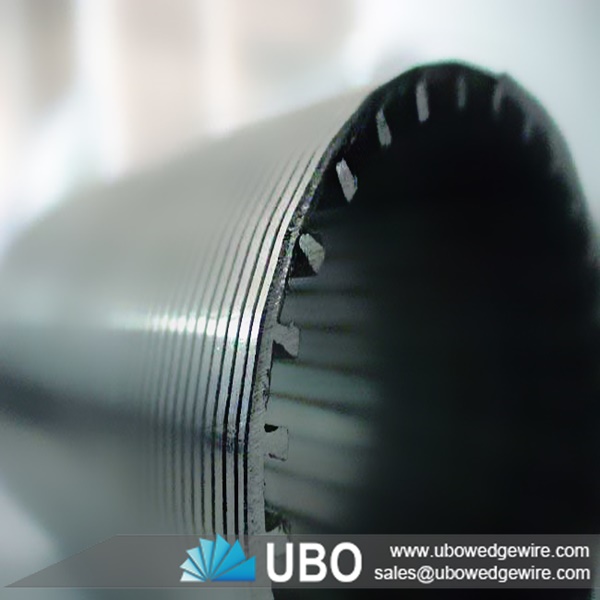

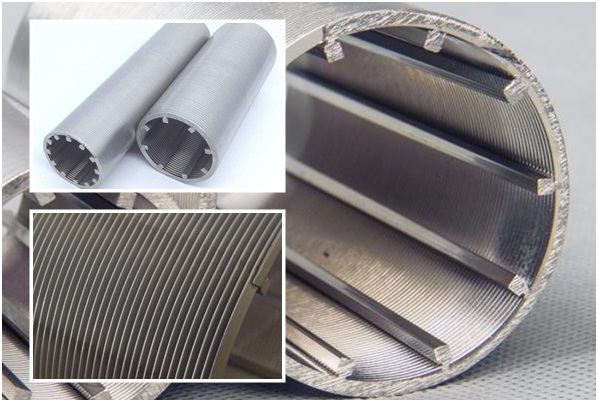

The stainless steel liquid filter screen tube for industry is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Applications of stainless steel liquid filter screen tube for industry
Wedge wire products are used for solid / liquid and solid / gas separation, sizing, dewatering and media retention in Oil & Gas wells, Water Wells, monitoring & soil sanitation, the (petro) chemical industry, food and process industry and architecture.
Specifications of stainless steel liquid filter screen tube for industry:
PIPE BASE
|
SCREEN
|
|||||||
Size (mm) |
Outside diameter (mm) |
Inside diameter (mm) |
Weight lbs/ft |
Number of holes/m |
Holes diameter (mm) |
Outer screen O.D (mm) |
Annulus (mm) |
Inner screen I.D. |
2 3/8 | 60 | 50.6 | 4.6 | 314 | 10 | 86 | 6 | 64 |
2 7/8 | 73 | 62 | 6.4 | 354 | 10 | 100 | 6 | 77 |
3 1/2 | 89 | 76 | 9.2 | 354 | 12 | 106 | 6 | 93 |
4 | 102 | 90 | 9.5 | 394 | 12 | 129 | 6 | 106 |
4 1/2 | 114 | 102 | 11.5 | 472 | 12 | 140 | 6 | 118 |
5 | 127 | 114 | 13 | 512 | 12 | 154 | 6 | 131 |
5 1/2 | 140 | 126 | 15.5 | 552 | 12 | 167 | 6 | 144 |
6 5/8 | 168 | 150 | 24 | 590 | 12 | 195 | 6 | 172 |
