Quality Wedge Wire Screen Manufacturer in China

stainless steel johnon welded water well screen pipe for liquid filtration

More Views

stainless steel johnon welded water well screen pipe for liquid filtrationstainless steel johnon welded water well screen pipe for liquid filtrationstainless steel johnon welded water well screen pipe for liquid filtration

stainless steel johnon welded water well screen pipe for liquid filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel johnon welded water well screen pipe for liquid filtration

stainless steel johnon welded water well screen pipe is made up of rods and profile wire.The rod can be round wire,triangular wire or(wedge) trapezoid wire.The profile wire is triangular wire (V-shaped wire).Water well screens have a structure and high open area,as well as accurate slot dimension.At the same time,water well screen have heat-resisting,anti-corrosive,good machine capability,last long,safety and reliability and so on characteristics.It can be used in many kinds of medium filtering.

stainless steel johnon welded water well screen pipe for liquid filtration

Characteristics of stainless steel johnon welded water well screen pipe for liquid filtration

The benefit of wedge wire screen is more open area, have very precise openings ,maximum design flexibility, stronger and more durable, economical ,easier installation and long-term operating etc.

Features of stainless steel johnon welded water well screen pipe for liquid filtration

1.Special continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.
2. V-type profile of the structure to avoid clogging and ensure smooth flow.
3. Continuous long-term effective use of the pore.
4. Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.
5. Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.

Uses of stainless steel johnon welded water well screen pipe for liquid filtration

The screen is a kind of filtered water tubing with the perforation.It can be used with the deep well pump,dive the water pump,also may be used in the water-treating equipment,the environmental protection,the sea water transforms into the industrial water and life use water desalination treatment,running water treatment,water softening treatment,the petroleum industry,The petroleum product terminal filters and the chemical acid,the alkali liquid filters,the ethyl alcohol and so on the organic solution recycling filters.

stainless steel johnon welded water well screen pipe for liquid filtration

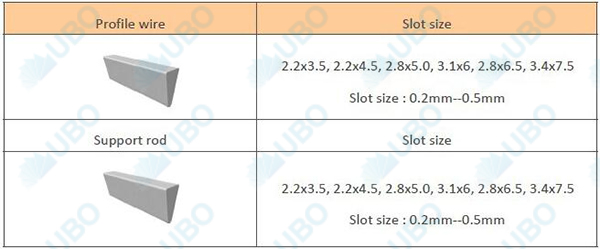

Specifications of stainless steel johnon welded water well screen pipe for liquid filtration:

Materials: 302, 304, 304L, 316, 316L stainless steel wire and low carbon wire(galvanized iron,can be design according to the customers' request.

Min slot: 0.05mm-35mm(error:±0.03mm)

Filter: From outside to inside

Styles of connection: by welding or by threaded male/female coupling.

Standard length: 1m/5.85m

stainless steel johnon welded water well screen pipe for liquid filtration



stainless steel johnon welded water well screen pipe for liquid filtration

Packaging and Transportation of stainless steel johnon welded water well screen pipe for liquid filtration:

transportation
