Quality Wedge Wire Screen Manufacturer in China

stainless steel intake screen for water filter

More Views

stainless steel intake screen for water filter

Category:Wedge Wire Application
Material:stainless steel 304,316,316L
Properties:wedge wire
Application:Liquid Filter,water filter,industry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

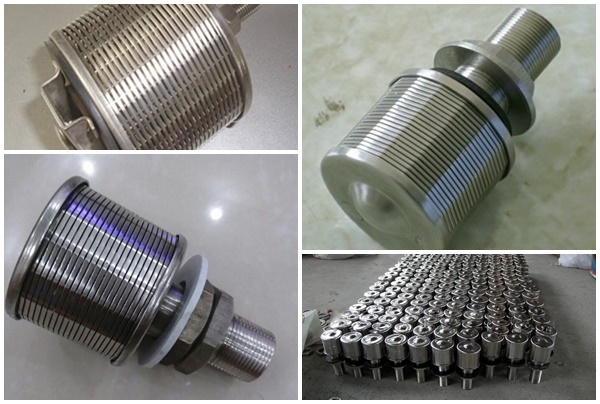

Details of stainless steel intake screen for water filter

stainless steel intake screen  (filter nozzle)can filter a liquid or gas and retain a filtering medium (sand, catalyst, resin, zeolite, activated carbon, etc). The principle consists of distributing nozzles over a vessel floor so as to control the flow during collection or distribution.

Filter nozzles provide an excellent economic compromise in combining the benefits of a completely welded structure to withstand very high stress, provide an anti-clogging surface and excellent corrosion resistance.

Advantages of stainless steel intake screens for water filter

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Application of stainless steel intake screens for water filter

The filter wedge wire screen nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Small systems may be built moduarly from off-the-shelf components requiring minimal customization.

        Pump Intake Screens.

Specifications of stainless steel intake screen for water filter:

Material:stainless steel

Type:filter nozzle

No.



Type



Ton



Slot

Opening



Size

0.2-0.25mm slot opening Area of through-flow mm2 (reference)

D

L1

L

M

1

TYS45-1-C

0.5

0.2-0.5

45

45

95

24

500

2

TYS53-2-B

1

0.2-0.5

53

45

100

24

570

3

TYS53-2-C

1.5

0.2-0.5

53

50

110

32

700

4

TYS57-3-B

2

0.2-0.5

57

45

110

32

600

5

TYS70-4-B

3

0.2-0.5

70

55

120

32

1000

Pump Intake Screens

Packaging and Transportation of stainless steel intake screen for water filter:

screen nozzle
