Quality Wedge Wire Screen Manufacturer in China

stainless steel high pressure filter in rotary turbo nozzle

More Views

stainless steel high pressure filter in rotary turbo nozzlestainless steel high pressure filter in rotary turbo nozzlestainless steel high pressure filter in rotary turbo nozzle

stainless steel high pressure filter in rotary turbo nozzle

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:stainless steel wire mesh
Application:power plant, petroleum, chemical, pharmaceutical, food industries such as water treatment equipment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel high pressure filter in rotary turbo nozzle

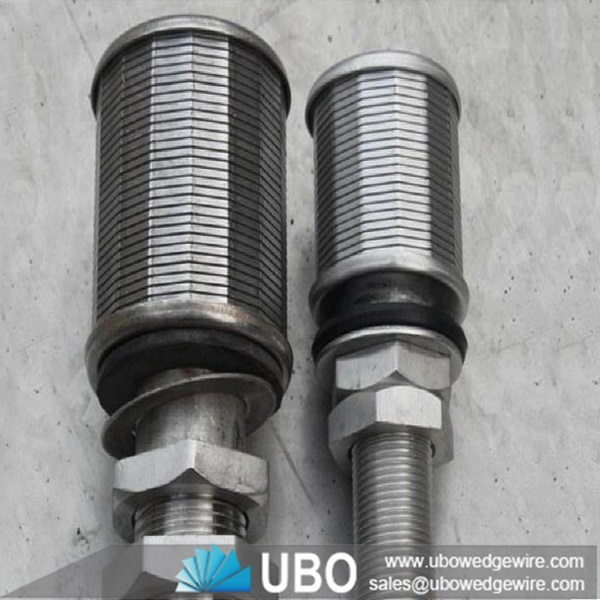

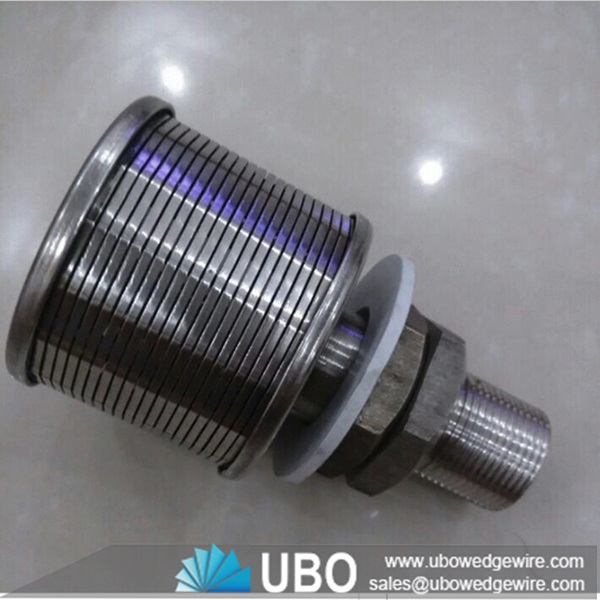

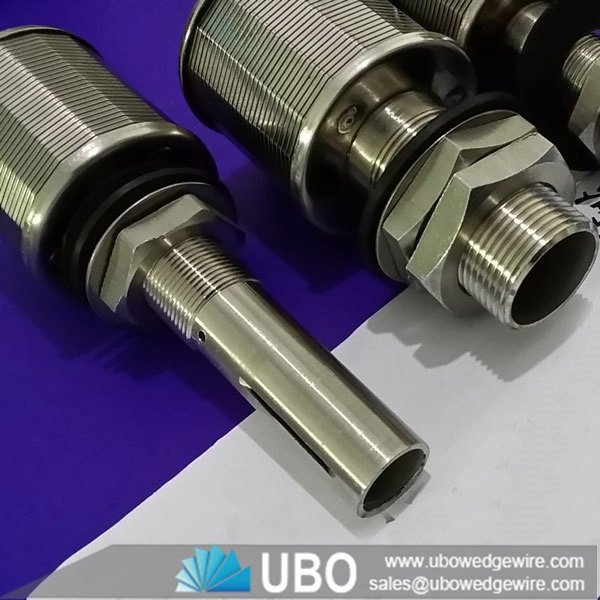

Stainless steel Water treatment system filter nozzle are widely used in various industries, especially suitable for water treatment or liquid filtration. The main part of the nozzle is stainless steel wedge wire screen . It’s a new type filter component.


Stainless steel Water treatment system filter nozzle has a long life. The precise filter ratings are from 20 microns. It is made by welding with profile wire on every connection spots.

Applications for stainless steel high pressure filter in rotary turbo nozzle:

Stainless steel filter nozzle are widely used in power plant, petroleum, chemical, pharmaceutical, food industries such as water treatment equipment. The filter nozzle is the key components of the water distribution and water device in water treatment equipment . The stainless steel filter nozzle applies to the ion exchanger, ion exchange resin, etc.

Advantages for stainless steel high pressure filter in rotary turbo nozzle:

1) Strength: as fourth and fifth layers do support, with high mechanical strength and compressive strength.

2) Easy to clean: As a result of surface of the filter material, having means for cleaning characteristics, especially suitable for backwashing.

3) Easy processing: suitable for cutting, bending, stamping, drawing, welding and other processes.

4) High temperature: 480 °C can withstand high temperatures.

5) Corrosion resistance: As a result of SUS316L, 304 materials, the corrosion resistance.

6) Filtration: Filtration range of 1μm-200μm, has a reliable filter performance.

7) Stability: Because there are two layers to do to protect the screen, plus solid melting diffusion sintering process which make filters is not easily to deform.



stainless steel high pressure filter in rotary turbo nozzle

Specifications of stainless steel high pressure filter in rotary turbo nozzle:

stainless steel high pressure filter in rotary turbo nozzle

No.
Slot
Dimension
Flow area/mm2
(Slot:0.2mm)
D
H
L
M
L1
1
0.2-0.5
45
30
180
25
According to custom’s request
330
2
45
40
190
25
450
3
53
40
190
30
500
4
53
50
200
30
630
5
53
40
235
32
500
6
57
40
190
32
605
7
57
50
200
32
750

Packaging and Transportation of stainless steel high pressure filter in rotary turbo nozzle:

1) Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)

2) We have a very trust forwarding company cooperate for long time and establish a solid partnership,of course,you can also arrange forward to take products from our factory.
