stainless steel continuous slot wire wrap well screens

More Views

stainless steel continuous slot wire wrap well screensstainless steel continuous slot wire wrap well screensstainless steel continuous slot wire wrap well screens

stainless steel continuous slot wire wrap well screens

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel continuous slot wire wrap well screens

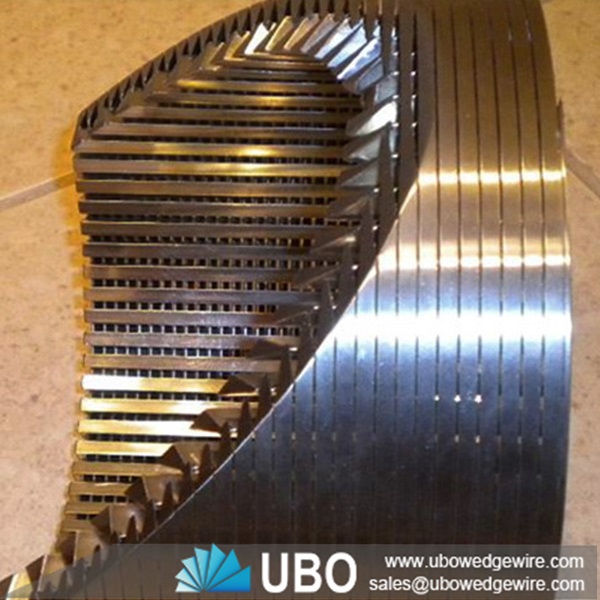

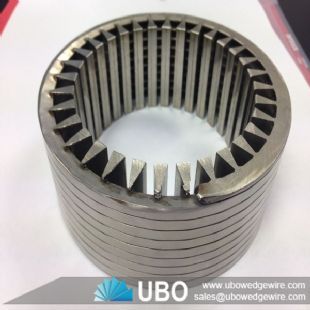

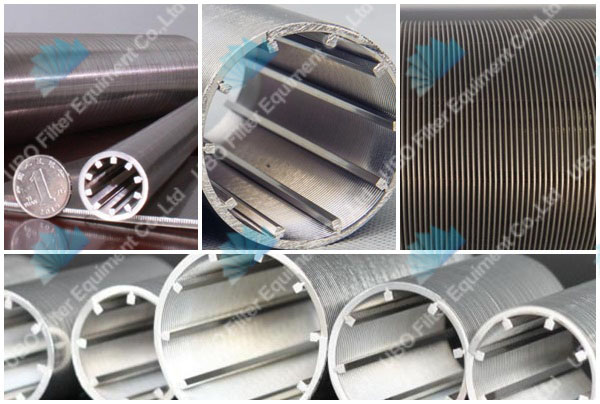

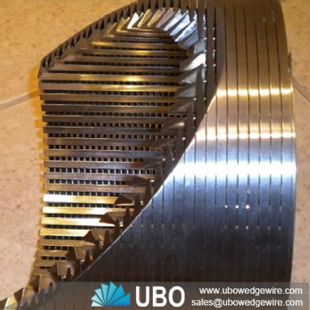

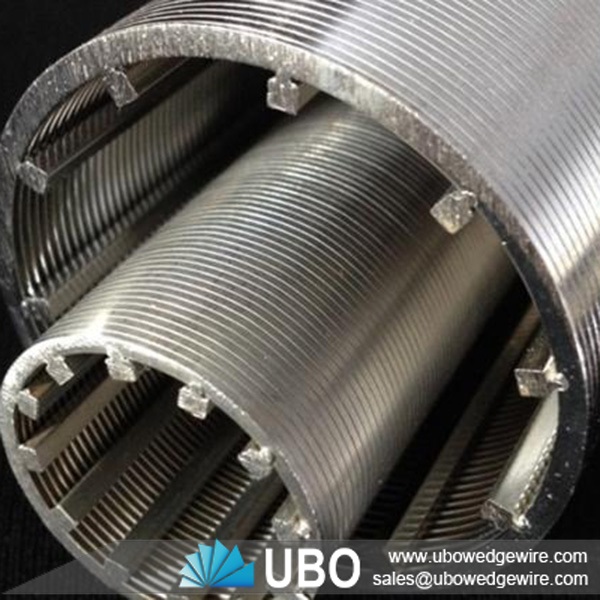

    The welded wire wrapped continuous slot water well screens are made up of rods and wire.The rod can be round wire, triangular wire or trapezoid wire.
    The wire is triangular wire (V-shaped wire).Water well screens have a structure and high open area, as well as accurate slot dimension.
    The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

stainless steel continuous slot wire wrap well screens

Uses for stainless steel continuous slot wire wrap well screens:

The strainer is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Advantage for stainless steel continuous slot wire wrap well screens:

•A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
•A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
•A uniform and efficient well development due to the continuous slot opening.
•Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
•5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Characteristics for stainless steel continuous slot wire wrap well screens:

The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Specifications of stainless steel continuous slot wire wrap well screens:

stainless steel continuous slot wire wrap well screens



size

inner diameter

outer diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324

Packaging and Transportation of stainless steel continuous slot wire wrap well screens:

stainless steel continuous slot wire wrap well screens



stainless steel continuous slot wire wrap well screens
