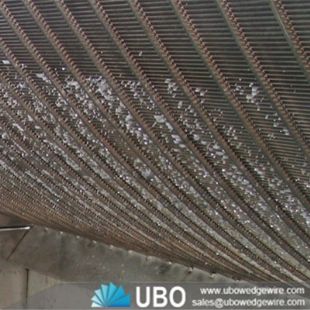

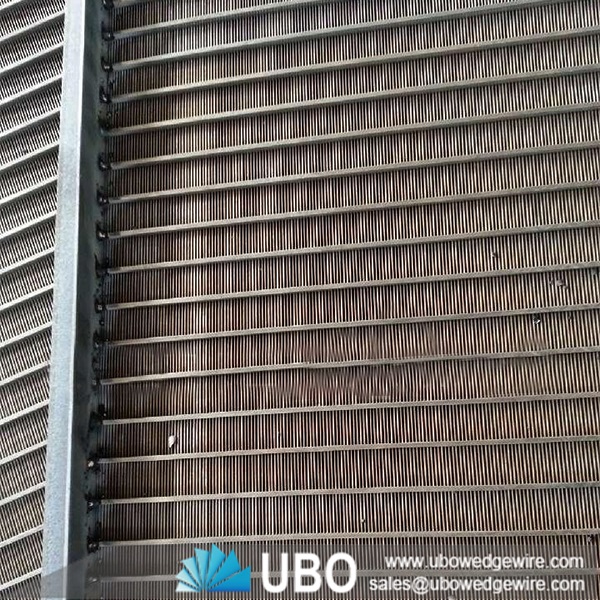

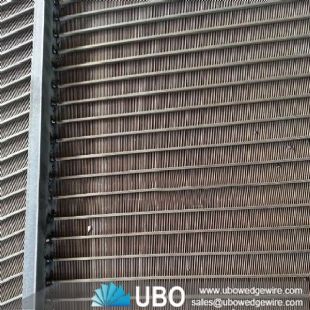

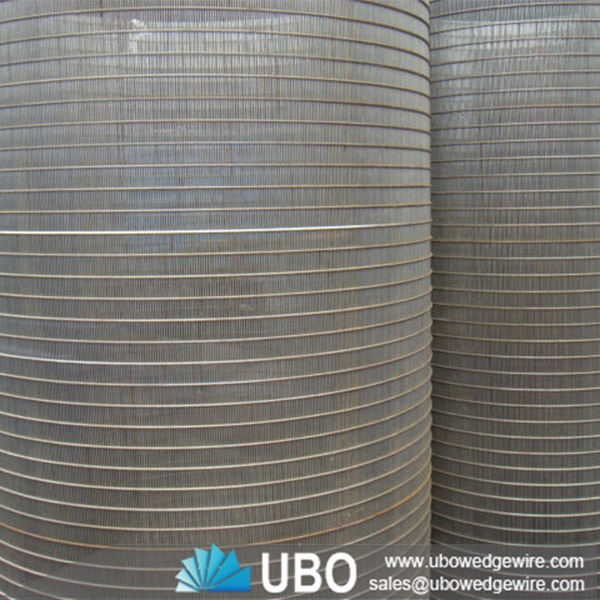

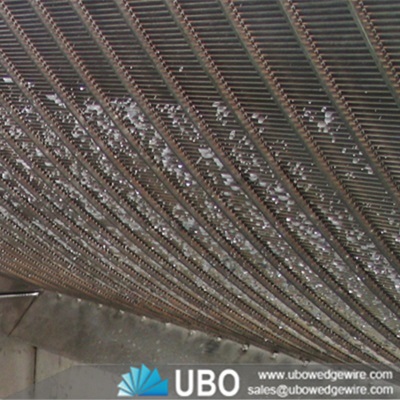

stainless steel anti-corrosive inverted drum screen basket

More Views

stainless steel anti-corrosive inverted drum screen basketstainless steel anti-corrosive inverted drum screen basketstainless steel anti-corrosive inverted drum screen basket

stainless steel anti-corrosive inverted drum screen basket

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:drum screen basket
Application:wine-making, malting, paper-making, mining, crement-producing, food-processing, oil-refining

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel anti-corrosive inverted drum screen basket

drum screen baskets is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).

Applications for stainless steel anti-corrosive inverted drum screen basket:

Our products are widely used for wine-making, malting, paper-making, mining, crement-producing, food-processing, oil-refining, painting as well as the industries of cigarette, sugar, foodstuff, noise-sliencer, environmental protection, agricultural machine, chemical industry and pharmacy industry.

Features for stainless steel anti-corrosive inverted drum screen basket:

1) Characteristics:high iltering accuracy,high strengh and durability.

2) V-WIRE is not easy to be blocked

3) by the different pressure between inside from outside, timely elimination of pipeline plugging material

Advantages for stainless steel anti-corrosive inverted drum screen basket:

1) This type screen can be successfully applied for gravel packing and sand prevention. It enables the oil well to offer large output. And this product is not limited to the length of well section, bottom hole temperature or pressure.

2) The utilization of trapezoid wrapping wire contributes to the formation of V-shaped openings between the seams. This design pattern makes the water to be filtered smoothly, thus improving the efficiency.

3) The wrapping wire is connected to all the supporting wires by welding. It can be used for a long time. In addition, both dense and uniform seams will be formed after this trapezoid wrapping wire has been wrapped onto the circumferentially arranged supporting wires. Those seams offer a large flow area while ensuring the excellent anti-blocking performance. Also, they will effectively help avoid sediment accumulation. Consequently, high production efficiency of the water well can be significantly improved, and the lifespan can be prolonged as well.

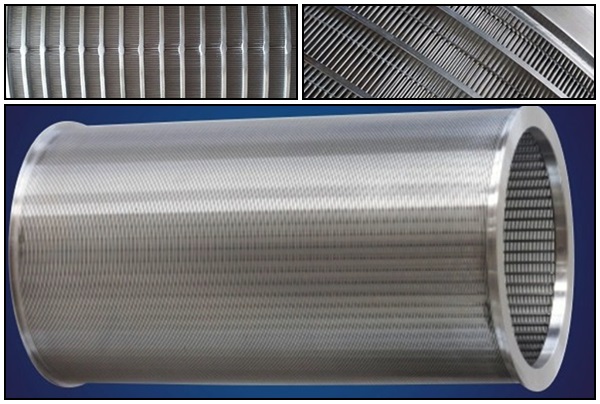

stainless steel anti-corrosive inverted drum screen basket

Specifications of stainless steel anti-corrosive inverted drum screen basket:

stainless steel anti-corrosive inverted drum screen basket

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of stainless steel anti-corrosive inverted drum screen basket:

stainless steel anti-corrosive inverted drum screen basket
