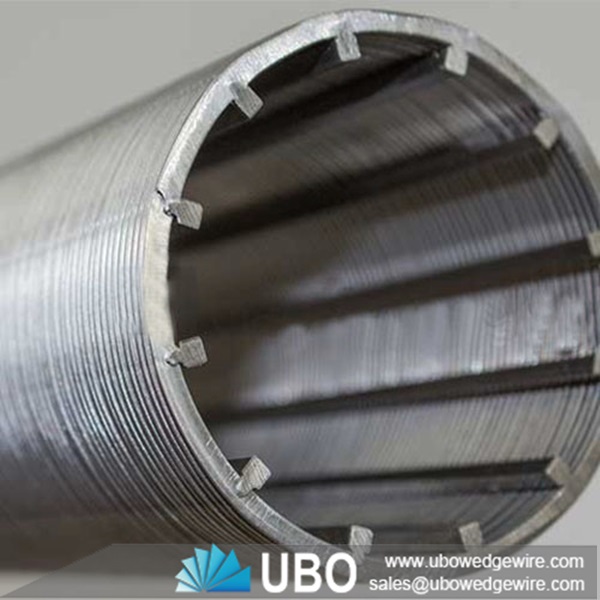

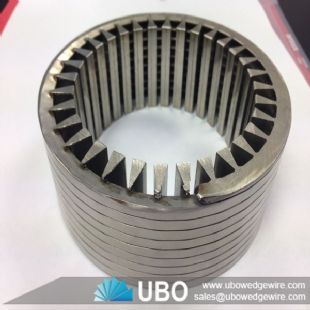

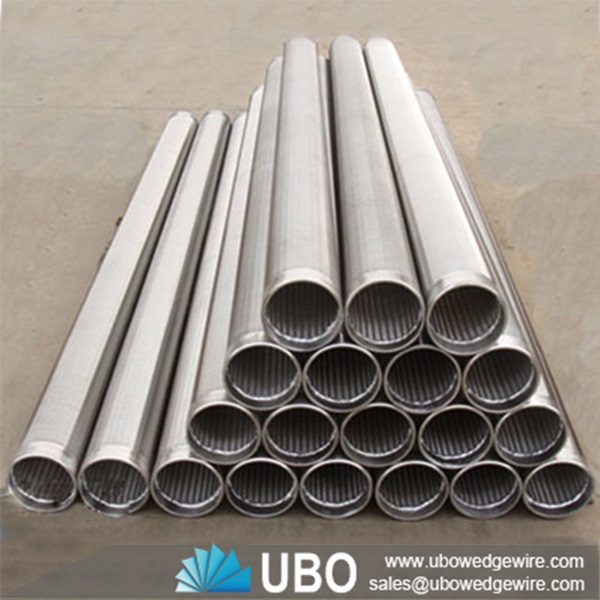

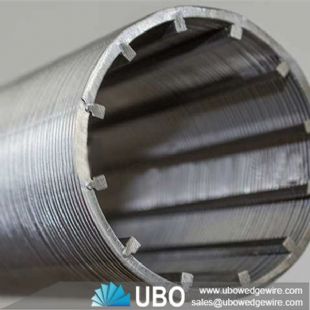

stainless steel Water treatment products water pipe filters

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Pipe
Application:the deep well pump, submersible pump systems, they can also be used in water treatment equipment, environmental protection

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel Water treatment products water pipe filters

Wedge wire screen are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize friction head loss. Most continuous wire wrap screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often leads to accelerated corrosion.

Applications for stainless steel Water treatment products water pipe filters:

Filter tube or wedge wire pipes are usually used as the water filter equipment. They are used in the deep well pump, submersible pump systems, they can also be used in water treatment equipment, environmental protection, the water of the sea into the industrial water and domestic water desalination treatment, water treatment, water softening treatment, oil chemical industry: the terminal filtration of oil products and chemical acid, alkali liquid filtration, alcohol and other organic solution of recycling.

Features and Benefits for stainless steel water treatment products water pipe filters:

• Each filter constructed of 316 stainless steel and features a permanent handle for easy installation, removal and cleaning

• Manfre basket filter designed for maximum operating pressures of up to 150 psi (9.0 bar) and high flow rates

• Cleanable permanent media

• Optional ratings available down to 550 mesh (25 micron)

• Five standard ratings available from 20 to 100 mesh

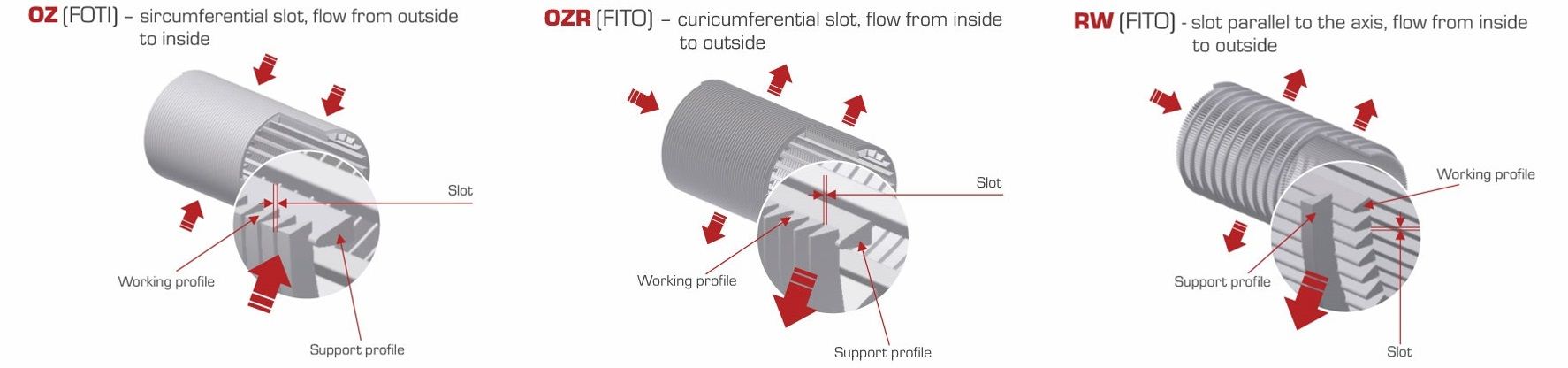

Filtrations Direction for stainless steel water treatment products water pipe filters:

The direction of the flow is determined by the position of the surface profiles in relation to the support profiles. Wedge wire screens are either flow-out-to-in (FOTI) or flow-in-to-out (FITO)

stainless steel Water treatment products water pipe filters

Specifications of stainless steel Water treatment products water pipe filters:

stainless steel Water treatment products water pipe filters

stainless steel Water treatment products water pipe filters


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of stainless steel Water treatment products water pipe filters:

Package: in wood case

Delivery: 10-20 days.


stainless steel Water treatment products water pipe filters

stainless steel Water treatment products water pipe filters
