stainless steel Water treatment products water filters

More Views

stainless steel Water treatment products water filtersstainless steel Water treatment products water filtersstainless steel Water treatment products water filters

stainless steel Water treatment products water filters

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel Water treatment products water filters

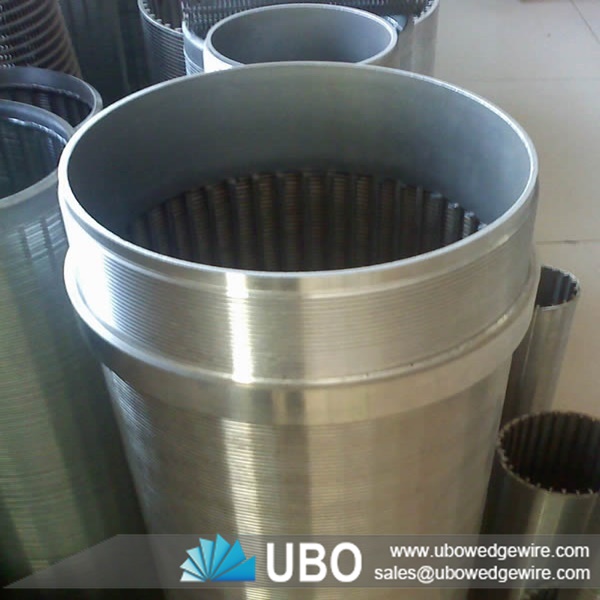

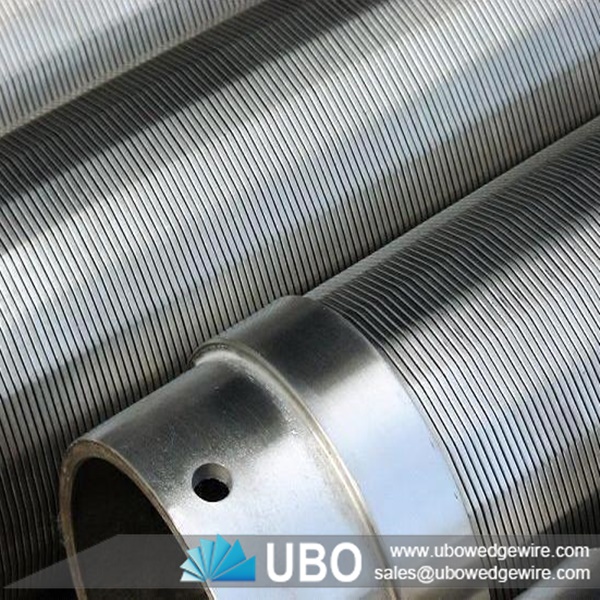

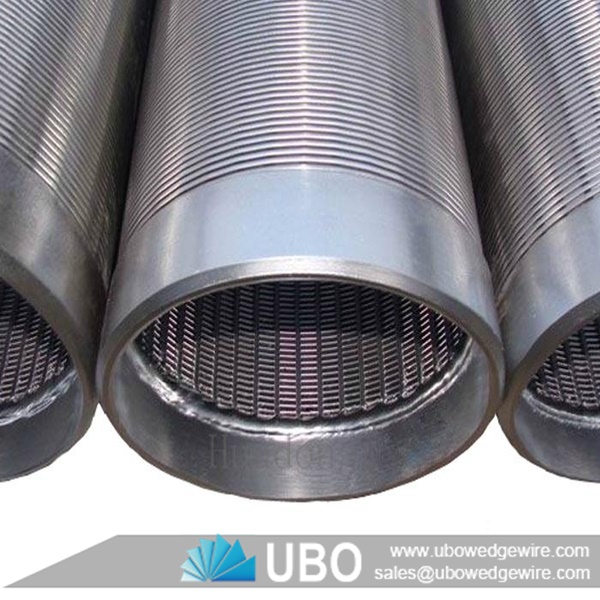

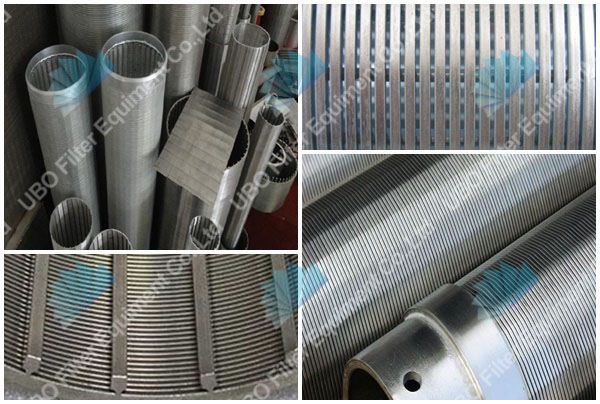

stainless steel Water treatment products water filters is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). It has a structure and high open area, as well as accurate slot dimension.

Features of stainless steel Water treatment products water filters

• each filter constructed of 316 stainless steel and features a permanent handle for easy installation, removal and cleaning
• Manfre basket filter designed for maximum operating pressures of up to 150 psi (9.0 bar) and high flow rates
• cleanable permanent media
• optional ratings available down to 550 mesh (25 micron)
• Five standard ratings available from 20 to 100 mesh

Applications of stainless steel Water treatment products water filters

• discharge water
• Process water
• coolants
• cutting oils
• Inks
• Lubricants
• Paints
• resins
• Solvents
• Bulk chemicals
• Parts washing Systems
• Adhesives

stainless steel Water treatment products water filters

Specifications of stainless steel Water treatment products water filters:

Size

(inch)

O.D

(mm)

Slot

(inch)

Collapse Strength

(Psi)

Tensile Weight

(Ton)

Wrap(thick*deep)

(mm)

Rods

(mm)

4

117

0.04

395

6

2.2*3.0

3.8mm/22

4

114.3

0.04

395

6

2.3*3.0

3.8mm/22

6

168.3

0.04

252

8

2.3*3.5

3.8mm/32

8

219.1

0.01

399

10.5

3.0*5.0

3.8mm/48

8

219.1

0.02

370

10.5

3.0*5.0

3.8mm/48

8

219.1

0.04

323

10.5

3.0*5.0

3.8mm/48

10

273.1

0.01

206

11

3.0*5.0

3.8mm/50

10

273.1

0.02

191

11

3.0*5.0

3.8mm/50

10

273.1

0.04

167

11

3.0*5.0

3.8mm/50

Packaging and Transportation of stainless steel Water treatment products water filters:

transportation
