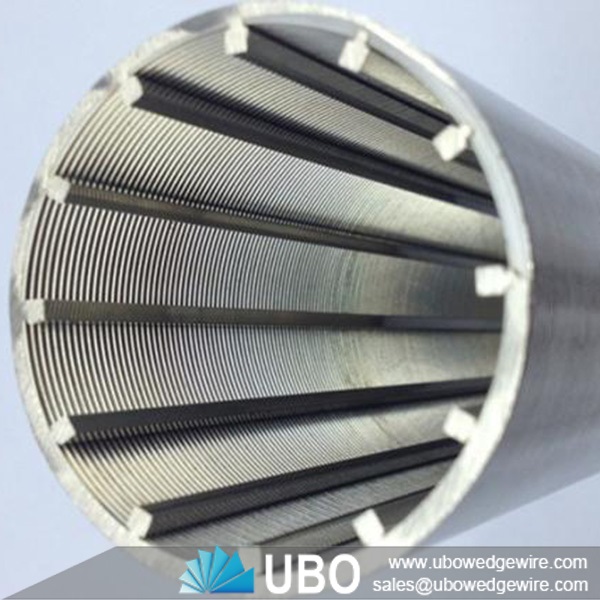

stainless steel Pre-packed sand control screen with base pipe

More Views

stainless steel Pre-packed sand control screen with base pipestainless steel Pre-packed sand control screen with base pipestainless steel Pre-packed sand control screen with base pipe

stainless steel Pre-packed sand control screen with base pipe

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Pipe
Application:the water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel Pre-packed sand control screen with base pipe

pre-packed Johnson screen control sand pipe provide effective sand control for nominal gravel packing application. The slot is designed to stop the gravel and the sand from the earth is then stopped by the holes formed by the gravel.

stainless steel Pre-packed sand control screen with base pipe

Applications for stainless steel Pre-packed sand control screen with base pipe:

SS304 v wire wrapped screens is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,many other liquids, solids separation applications.

Features for stainless steel Pre-packed sand control screen with base pipe:

a) V-shaped wire creates keystone geometry and self-cleaning performances for lower possibility of clogging.

b) External forces are directly transferred to base pipe.

c) Many ribs are designed for collapse resistance.

d) Wire wrapped screens produces ten times of open area as the size of slotted liners. This significantly improves well life and filtration capacity

stainless steel Pre-packed sand control screen with base pipe

Specifications of stainless steel Pre-packed sand control screen with base pipe:

stainless steel Pre-packed sand control screen with base pipe


Outside Diameter
Profile wire
Rod wire
Rod quantity
Slot size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25

45~3000

25
1
33.7
1.5*2
2*3
14
0.1~0.25

45~3000

32
1-1/4
42.4
1.5*2
2*3
16
0.1~0.25

45~3000

40
1-1/2
48.3
1.5*2
2*3
16
0.1~0.25

45~3000

50
2
60.3
1.5*2
2*3
18
0.1~0.5

45~3000

65
2-1/23
76.1
1.5*2
2*3
20
0.1~0.5

45~3000

80
3
88.9
1.8*2.5
2*3
24
0.1~0.5

1000~6000

100
4
114.3
1.8*2.5
2*3
30
0.5~2

1000~6000

125
5
139.7
2.3*2.7
2*3
36
0.5~2

1000~6000

150
6
168.3
2.3*2.7
3*5
44
0.5~2

1000~6000

200
8
219.1
3.3*3.5
3*4.7
56
0.5~2

1000~6000

250
10
273
3.3*3.5
4*6
66
0.5~2

1000~6000

300
12
323.9
3.3*4.7
4*6
72
0.5~2

1000~6000

350
14
355.6
3.7*5
4*6
80
0.5~2

1000~6000

400
16
406.4
1.5*2
2*3
94
0.1*2

1000~6000

450
18
457
2*3
4*5
112
0.1*2

500~400

500
20
508
2*3
4*5
124
0.1*2

500~400

550
22
559
2*3
4*5
140
0.1*2

500~400

600
24
610
2*3
4*5
156
0.1*2

500~400

Siot:0.1mm~2mm    Tolerance:0.05
