stainless steel 316 wedge wire screen cylinder basket

More Views

stainless steel 316 wedge wire screen cylinder basketstainless steel 316 wedge wire screen cylinder basketstainless steel 316 wedge wire screen cylinder basket

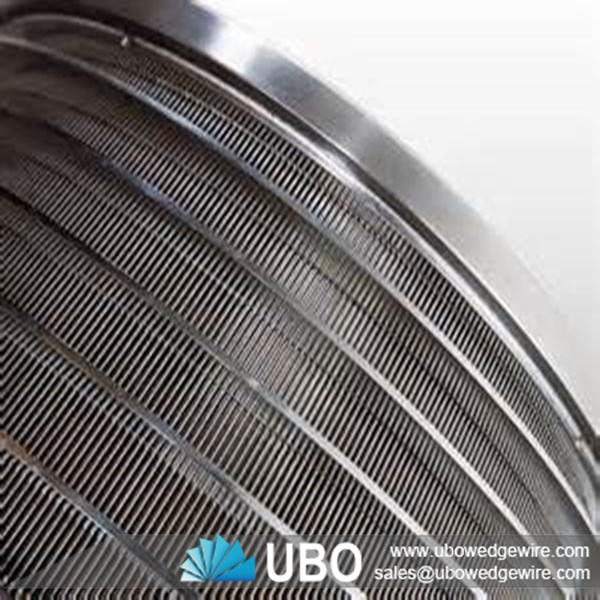

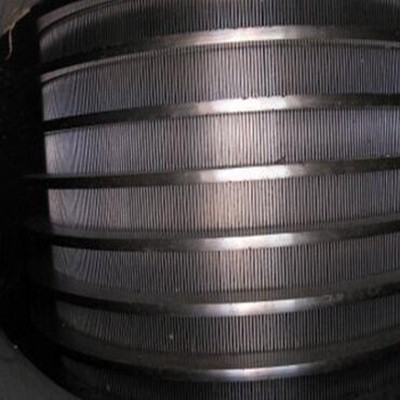

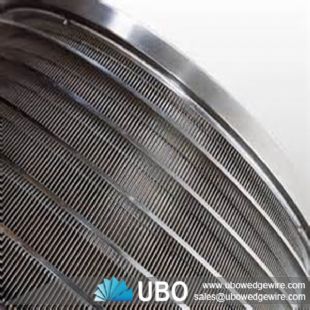

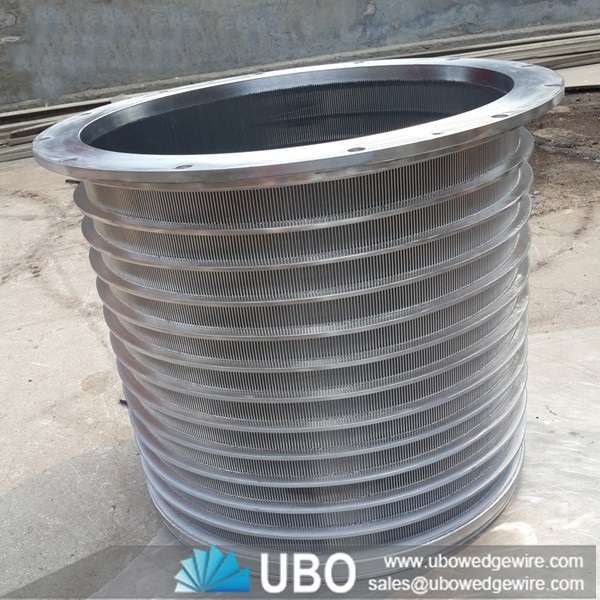

stainless steel 316 wedge wire screen cylinder basket

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Details of stainless steel 316 wedge wire screen cylinder basket

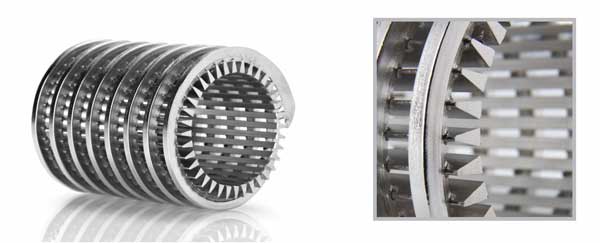

Stainless steel 316 wedge wire screen cylinder basket can be designed with slot openings and wires running on the outside surface of the screen cylinder or they can be positioned axially on the inside of the cylinder.

Cylinders diameters are from 1/2" pipe size to 35". It can be fabricated into larger diameters. Each intersection of wedge wire and support rod is welded for strength and durability. Various combinations of wire and rod can be used to produce the best screening cylinders and tubes.

Applications of stainless steel 316 wedge wire screen cylinder basket

The wedge wire screen cylinders can be used as rotary screens.
Wedge wire screen cylinders are widely used in the mine, coal, mineral and other applications for heavy duty and high load filtering, sizing and screening.

Features of stainless steel 316 wedge wire screen cylinder basket

It is a common screen basket. Its main feature is that high mechanical strength, smoothness and tolerance sccuracy. It is suitable for the high consistency pulp screen and before the head box.

stainless steel 316 wedge wire screen cylinder basket is SS316L after mechanical polishing. Good processing technology
ensures fit precision of wedge bar and reinforce ring and make sure the evenness of screen cut.

stainless steel 316 wedge wire screen cylinder basket

Specifications of stainless steel 316 wedge wire screen cylinder basket:

stainless steel 316 wedge wire screen cylinder basket


Outside Diameter
Profile wire
Rod wire
Rod quantity
Slot size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25

45~3000

25
1
33.7
1.5*2
2*3
14
0.1~0.25

45~3000

32
1-1/4
42.4
1.5*2
2*3
16
0.1~0.25

45~3000

40
1-1/2
48.3
1.5*2
2*3
16
0.1~0.25

45~3000

50
2
60.3
1.5*2
2*3
18
0.1~0.5

45~3000

65
2-1/23
76.1
1.5*2
2*3
20
0.1~0.5

45~3000

80
3
88.9
1.8*2.5
2*3
24
0.1~0.5

1000~6000

100
4
114.3
1.8*2.5
2*3
30
0.5~2

1000~6000

125
5
139.7
2.3*2.7
2*3
36
0.5~2

1000~6000

150
6
168.3
2.3*2.7
3*5
44
0.5~2

1000~6000

200
8
219.1
3.3*3.5
3*4.7
56
0.5~2

1000~6000

250
10
273
3.3*3.5
4*6
66
0.5~2

1000~6000

300
12
323.9
3.3*4.7
4*6
72
0.5~2

1000~6000

350
14
355.6
3.7*5
4*6
80
0.5~2

1000~6000

400
16
406.4
1.5*2
2*3
94
0.1*2

1000~6000

450
18
457
2*3
4*5
112
0.1*2

500~400

500
20
508
2*3
4*5
124
0.1*2

500~400

550
22
559
2*3
4*5
140
0.1*2

500~400

600
24
610
2*3
4*5
156
0.1*2

500~400

Siot:0.1mm~2mm    Tolerance:0.05
