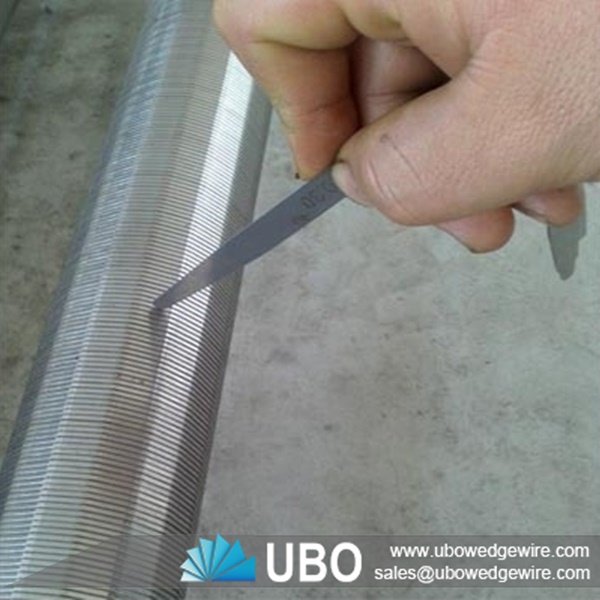

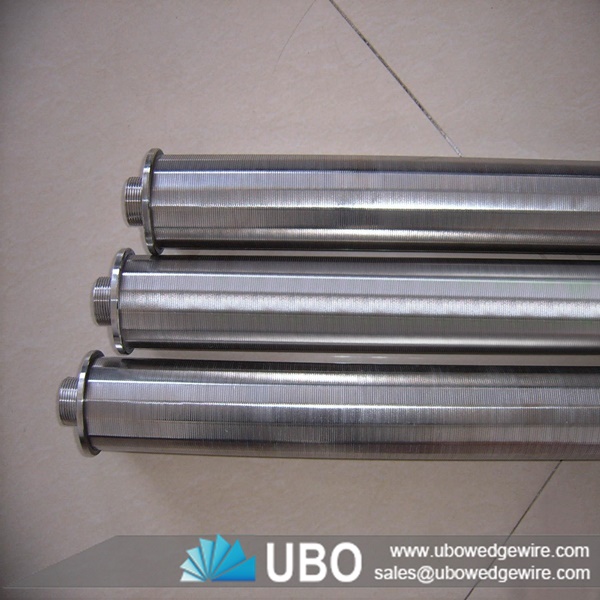

resin trap wedge wire filters for filtration

More Views

resin trap wedge wire filters for filtrationresin trap wedge wire filters for filtrationresin trap wedge wire filters for filtration

resin trap wedge wire filters for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of resin trap wedge wire filters for filtration

Resin trap wedge wire filters,The food industry has a wide variety of applications for which wedge wire has been used over many years. This includes flat panels, vibrating screen panels, sieve bend screen panels, centrifuges and static or rotating screens & cylinders.

Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are just barely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screen and clog it.

resin trap wedge wire filters for filtration

Advantages of resin trap wedge wire filters for filtration

-- High open area

-- Quick filtration

-- Economical solution, also for refurbishing of existing lauter tuns

-- Accurate filter rating

-- Longer service life

-- Low maintenance costs

-- Possible to build-in in existing equipment(custom made)

Application of resin trap wedge wire filters for filtration

Pressure Screens are manufactured to suit a wide range of industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry.

resin trap wedge wire filters for filtration

Specifications of resin trap wedge wire filters for filtration:

Material:stainless steel

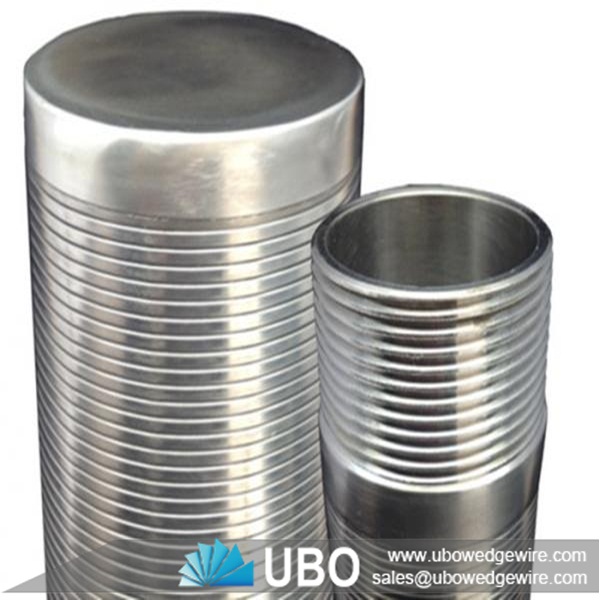

Type:resin trap pipe, one end of the pipe is closed

Connection:female or male thread type,as your request

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

resin trap wedge wire filters for filtration

Packaging and Transportation of resin trap wedge wire filters for filtration:

Packaging Details: waterproof film in wooden case then into the container waterproof film in bulk in the container; as per customer's requirements

Delivery Detail: 15-20days when receiving the bargain money
