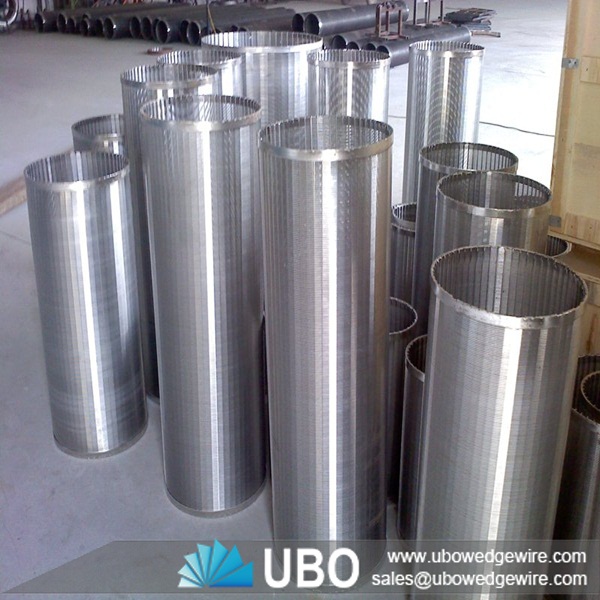

oil for SS 304 liquid wedge screen tube

More Views

oil for SS 304 liquid wedge screen tubeoil for SS 304 liquid wedge screen tubeoil for SS 304 liquid wedge screen tube

oil for SS 304 liquid wedge screen tube

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of oil for SS 304 liquid wedge screen tube

The oil and gas industry is one of the most lucrative but also the riskiest as the deeper the dig is, the greater the risk for the company.UBO understands these risks and knows that safety is important. Our high quality wedge wire screens product line for the oil and gas application is made of high quality materials ensuring safety and well-being of our customers and their employees.

Wedge screen tube is manufactured with V-shaped profile wire, which is spirally wound around a cage of longitudinal support rods.

Each intersecting point of these wires if fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire.
This spacing gives passage for water to enter.
The entire process is completed on fully computerized machines.

Advantages of oil for SS 304 liquid wedge screen tube

1.Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.
2.Low cost operation.
3.Reduce the abrasion of the pump.
4. Extend the life span of wells, low-carbon, Galvanized or stainless steel construction.

Application of oil for SS 304 liquid wedge screen tube

wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,many other liquids, solids separation applications.

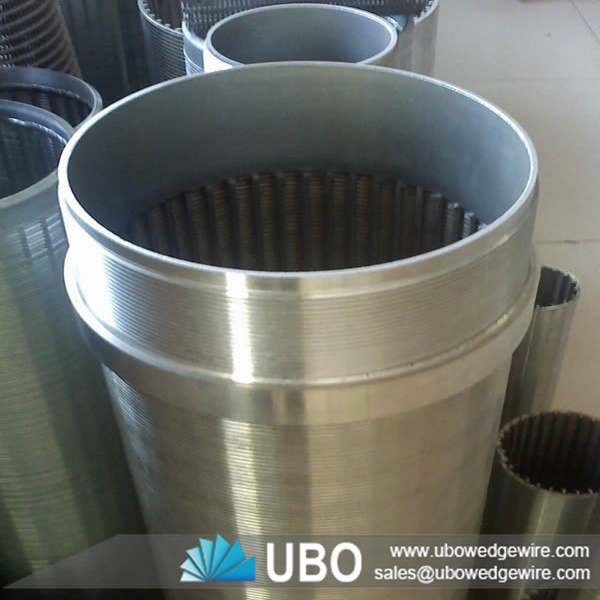

oil for SS 304 liquid wedge screen tube

Specifications of oil for SS 304 liquid wedge screen tube:

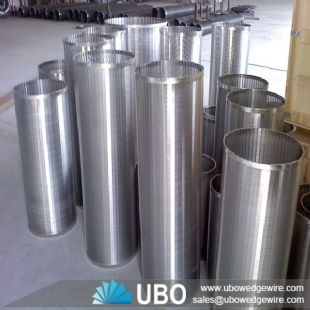

oil for SS 304 liquid wedge screen tube

SS 304 liquid wedge screen tube

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Diameter ranging

from 1 inch -----45 inch.

Length:

lengths up to 6 meters.

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Note: Other specifications can be customized according to your requirement

Packaging and Transportation of oil for SS 304 liquid wedge screen tube:

transportation
