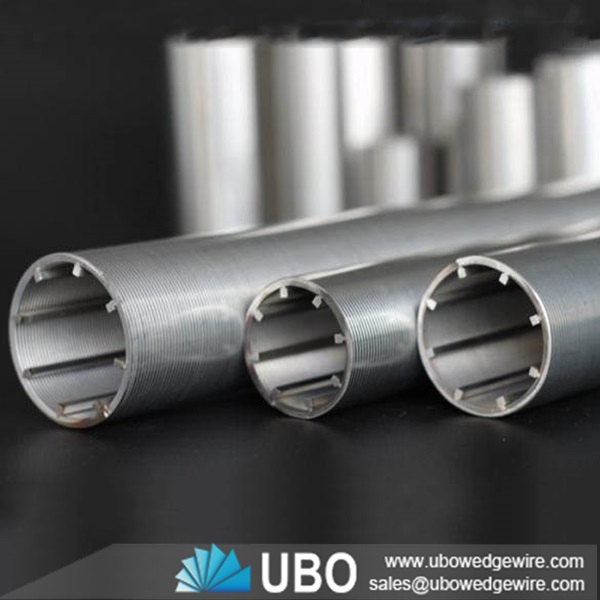

metal wedge mesh strainer for water filter

More Views

metal wedge mesh strainer for water filtermetal wedge mesh strainer for water filtermetal wedge mesh strainer for water filter

metal wedge mesh strainer for water filter

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:various plants such as electric power, petroleum, chemical industry, metallurgy industry, machinery industry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of metal wedge mesh strainer for water filter

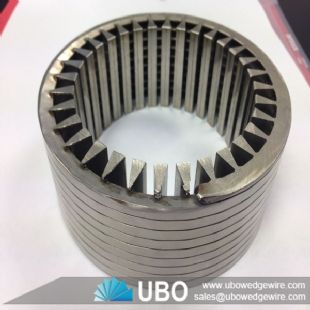

    wedge wire screen are made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the tube. This technology allows the production of wedge wire screens when very high gap precision and screen resistance are required. Due to using the newest welding technology we can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer’s particular requirements.

Application for metal wedge mesh strainer for water filter:

With solid structure, high temperature resistance, corrosion resistance, good mechanical performance, long service life, safe and reliable, etc. Can be used in many kinds of medium filtering. high filtering accuracy, high strength and durability

Advantages for metal wedge mesh strainer for water filter:

•A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
•A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
•A uniform and efficient well development due to the continuous slot opening.
•Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
•5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

metal wedge mesh strainer for water filter

Specifications of metal wedge mesh strainer for water filter:

metal wedge mesh strainer for water filter



Outside Diameter
Profile wire
Rod wire
Rod quantity
Slot size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25

45~3000

25
1
33.7
1.5*2
2*3
14
0.1~0.25

45~3000

32
1-1/4
42.4
1.5*2
2*3
16
0.1~0.25

45~3000

40
1-1/2
48.3
1.5*2
2*3
16
0.1~0.25

45~3000

50
2
60.3
1.5*2
2*3
18
0.1~0.5

45~3000

65
2-1/23
76.1
1.5*2
2*3
20
0.1~0.5

45~3000

80
3
88.9
1.8*2.5
2*3
24
0.1~0.5

1000~6000

100
4
114.3
1.8*2.5
2*3
30
0.5~2

1000~6000

125
5
139.7
2.3*2.7
2*3
36
0.5~2

1000~6000

150
6
168.3
2.3*2.7
3*5
44
0.5~2

1000~6000

200
8
219.1
3.3*3.5
3*4.7
56
0.5~2

1000~6000

250
10
273
3.3*3.5
4*6
66
0.5~2

1000~6000

300
12
323.9
3.3*4.7
4*6
72
0.5~2

1000~6000

350
14
355.6
3.7*5
4*6
80
0.5~2

1000~6000

400
16
406.4
1.5*2
2*3
94
0.1*2

1000~6000

450
18
457
2*3
4*5
112
0.1*2

500~400

500
20
508
2*3
4*5
124
0.1*2

500~400

550
22
559
2*3
4*5
140
0.1*2

500~400

600
24
610
2*3
4*5
156
0.1*2

500~400

Siot:0.1mm~2mm    Tolerance:0.05

Packaging and Transportation of metal wedge mesh strainer for water filter:

metal wedge mesh strainer for water filter

metal wedge mesh strainer for water filter

metal wedge mesh strainer for water filter
