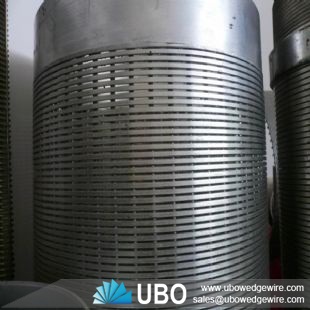

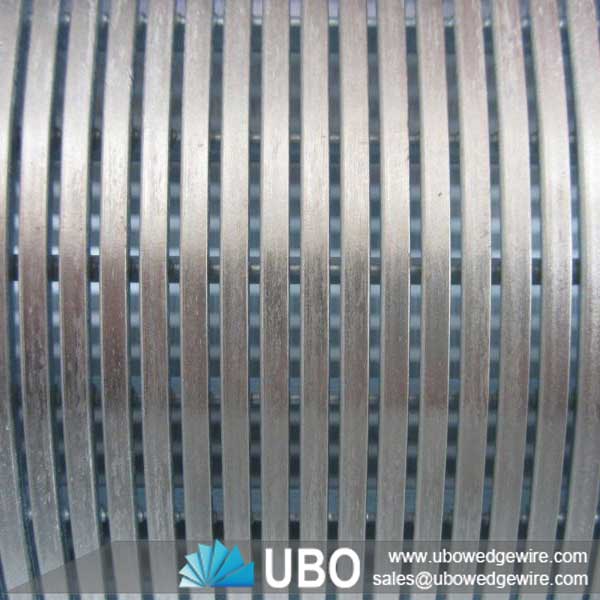

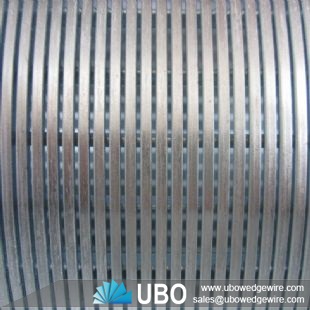

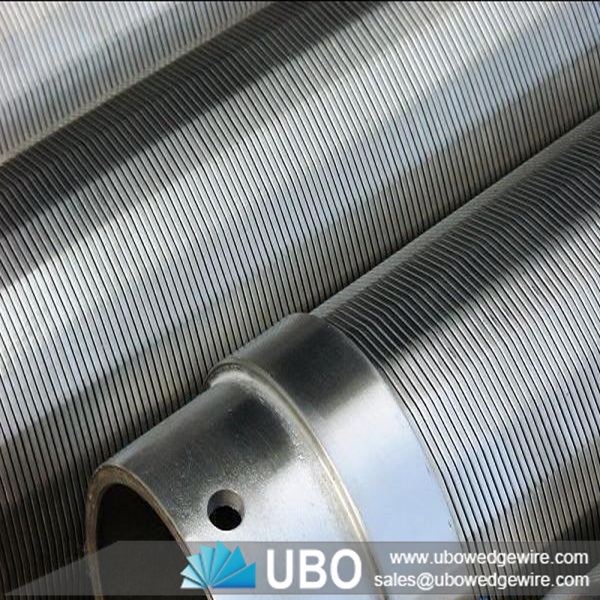

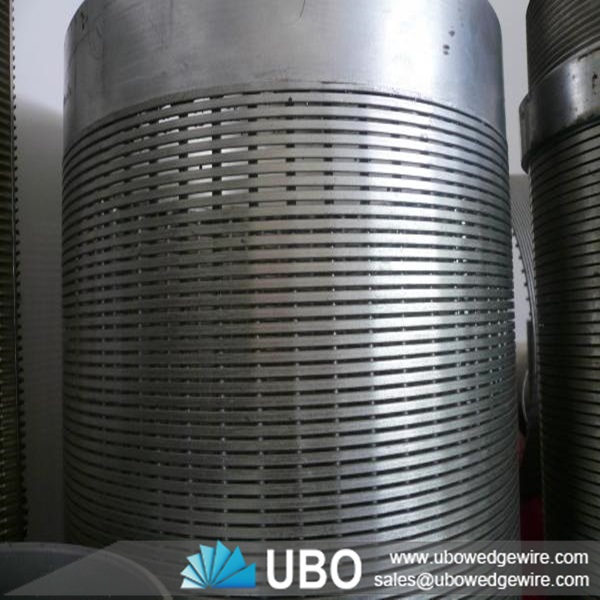

looped type wedge wire screens for industry filtration

More Views

looped type wedge wire screens for industry filtrationlooped type wedge wire screens for industry filtrationlooped type wedge wire screens for industry filtration

looped type wedge wire screens for industry filtration

Category:Wedge Wire Application
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:filtration/industry,water filtration,liquid filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of looped type wedge wire screens for industry filtration

The v wire or looped type wedge wire screens around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water(oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well. The slots can be changed according to different strata.characteristics of looped type wedge wire screens.

The looped type wedge wire screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Usags of looped type wedge wire screens for industry filtration

The strainer is a kind of filtered water tubing with the perforation. It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Advantage of looped type wedge wire screens for industry filtration

1) A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

2) A Vshaped profile wire which avoids clogging and ensures an uninterrupted flow.

3) A uniform and efficient well development due to the continuous slot opening.

4) Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

5) Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

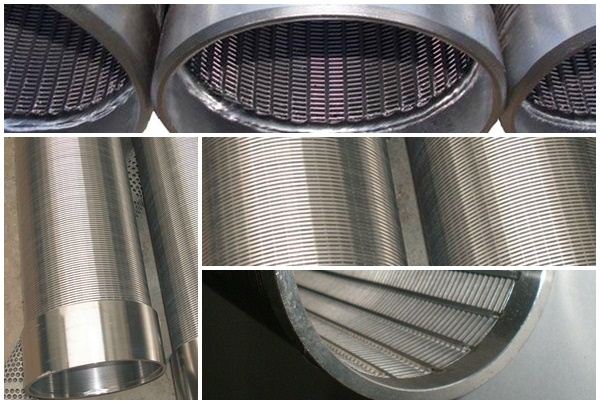

looped type wedge wire screens

Specifications of looped type wedge wire screens for industry filtration:

Material: stainless steel

Usage: liquid filter

Type: filter element

Width: 25mm-1500mm

Length: 6m(as your requirement)

      looped type wedge wire screens for industry filtration

Outside diameter





Profile wire

Rod wire

Rod quantity

Slot size

Length

DN

Inch

mm

mm

mm



mm

mm

20

3/4

26.9

1.5*2

2*3

12

0.1-0.25

45-3000

25

1

33.7

1.5*2

2*3

14

0.1-0.25

45-3000

32

1-1/4

42.4

1.5*2

2*3

16

0.1-0.25

45-3000

40

1-1/2

48.3

1.5*2

2*3

16

0.1-0.25

45-3000

50

2

60.3

1.5*2

2*3

18

0.1-0.5

45-3000

65

2-1/2

76.1

1.2*2

2*3

20

0.1-0.5

45-3000

80

3

88.9

1.8*2.5

2*3

24

0.1-0.5

45-3000

100

4

114.3

1.8*2.5

2*3

30

0.5-2

1000-6000

125

5

139.7

2.3*2.7

2*3

36

0.5-2

1000-6000

150

6

168.3

2.3*2.7

3*5

44

0.5-2

1000-6000

200

8

219.1

3.3*4.5

3*4.7

56

0.5-2

1000-6000

250

10

273

3.3*4.5

4*6

66

0.5-2

1000-6000

300

12

323.9

3.3*4.7

4*6

72

0.5-2

1000-6000

350

14

355.6

3.7*5

4*6

80

0.5-2

1000-6000

400

16

406.4

1.5*2

2*3

94

0.5-2

1000-6000

450

18

457

2*3

4*5

112

0.5-2

500-4000

500

20

508

2*3

4*5

124

0.5-2

500-4000

550

22

559

2*3

4*5

140

0.5-2

500-4000

600

24

610

2*3

4*5

156

0.5-2

500-4000

Slot:0.1-2mm,Tolerance:0.05mm

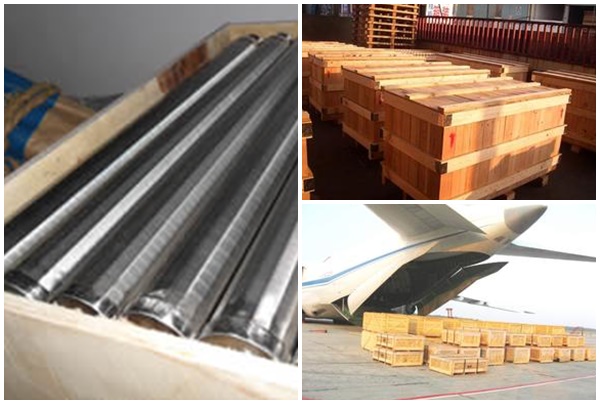

Packaging and Transportation of looped type wedge wire screens for industry filtration:

packing
