Wedge v wire flat grids screen panel used for industry filtration

More Views

Wedge v wire flat grids screen panel used for industry filtrationWedge v wire flat grids screen panel used for industry filtrationWedge v wire flat grids screen panel used for industry filtration

Wedge v wire flat grids screen panel used for industry filtration

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:flat wedge wire screen panel
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge v wire flat grids screen panel used for industry filtration

Wedge v wire flat grids screen panel can also be called Wedge Wire screen flat panel, wedge wire sieve bend screen,stainless steel screen plate.

The wedge v wire flat grids screen panel is primarily influenced by the screen width, the slot opening, and the wire size (width). Installation angle, feed velocity and uniform distribution across the screen are also very important.

Wedge v wire flat grids screen panels are composed of surface profile and support profile. The surface profile is commonly triangle wire, and the support profile can be triangle wire, wedge wire, round bar and rectangular bar. They can suit different machines and can be used in various applications.

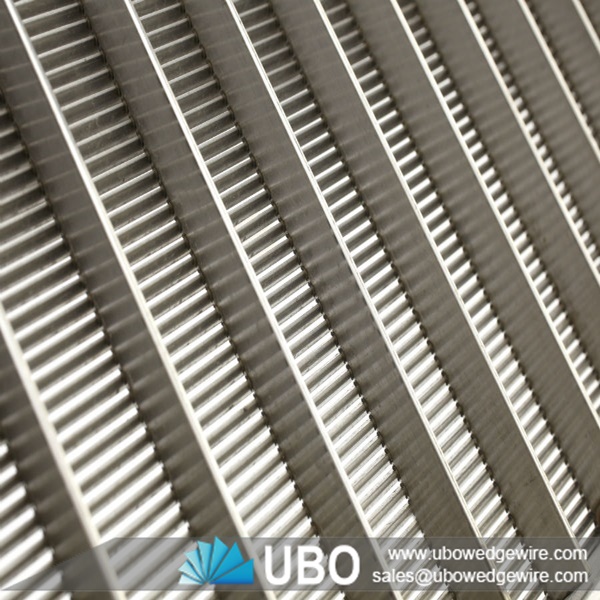

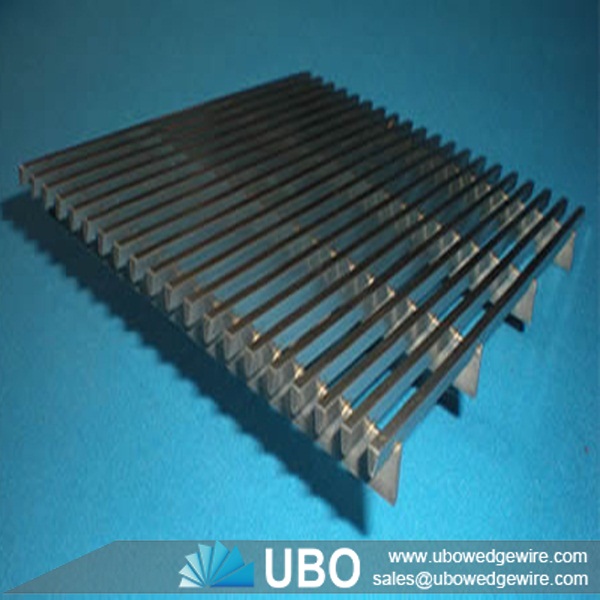

Wedge v wire flat grids screen panel used for industry filtration

Wedge v wire flat grids screen panel used for industry filtration

Feature of Wedge v wire flat grids screen panel used for industry filtration

Flat grids have their filtering effect from the outside to the inside.
The grids can, according to the wishes of the customer, be made in different shapes and sizes.
Flat grids consist of profiles that are welded on support bars.
The outside of the work surface is smooth.
Grids can be made with frames and supports in all sizes and shapes.

Usages of Wedge v wire flat grids screen panel used for industry filtration

1.) Widely used in vairous kinds of medium filtering
2.) As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3.) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4.) The organic solution recycling filter

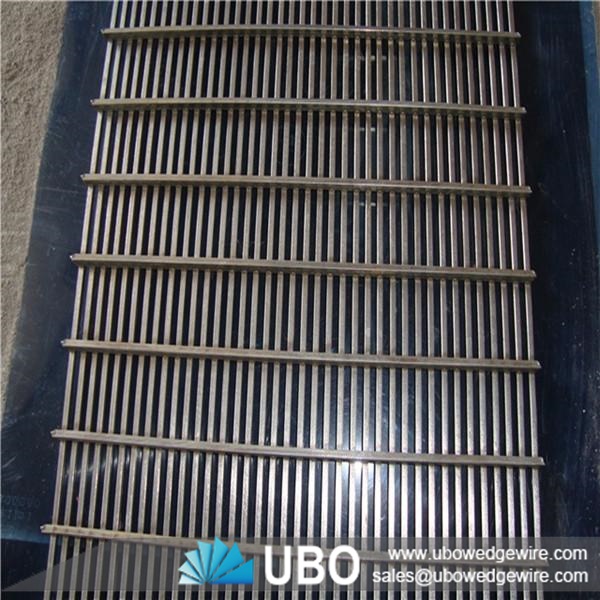

Wedge v wire flat grids screen panel used for industry filtration

Specifications of Wedge v wire flat grids screen panel used for industry filtration:

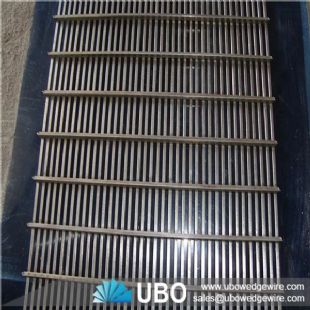

Wedge v wire flat grids screen panel used for industry filtration

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

Length Range

Up to 6000mm

Width Range

Up to 6000mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Other Shapes

Could cut to any shape according to requirement, such as round, semicircle, sector, and so on.

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5x2

2x3

2x4

3x5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8x2.5

2x3

2x3

2x4

3x5

3x6

3x10

4x7

2x4

3x5

3x6

3x10

4x7

5x6

3x5

3x6

3x10

4x7

5x6

5x8

End Finishing

With the frame, without any frame, according to request.

Note

Customized According To Requirement

Packaging and Transportation of Wedge v wire flat grids screen panel used for industry filtration:

Wedge v wire flat grids screen panel used for industry filtration
