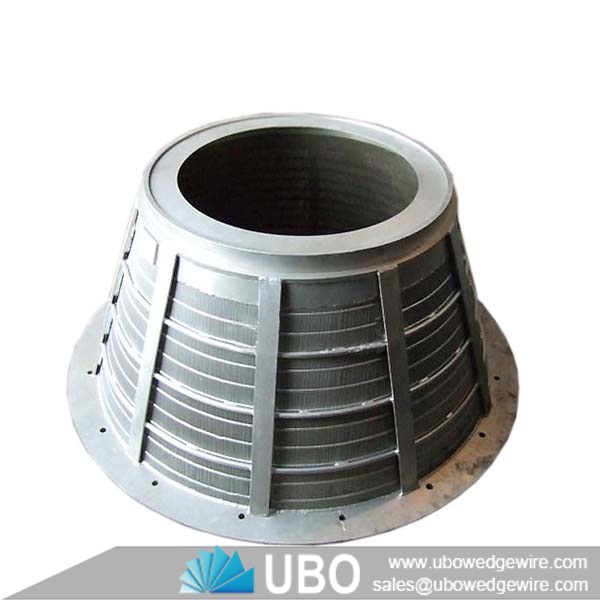

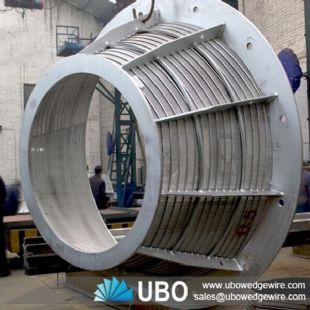

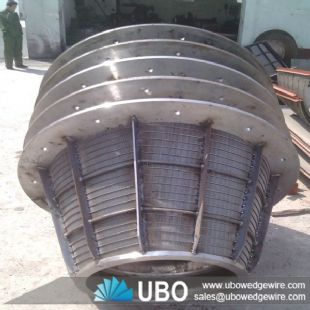

hot sale good quality sand filter continuous slot wedge wire screen basket

More Views

hot sale good quality sand filter continuous slot wedge wire screen baskethot sale good quality sand filter continuous slot wedge wire screen baskethot sale good quality sand filter continuous slot wedge wire screen basket

hot sale good quality sand filter continuous slot wedge wire screen basket

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:wedge wire screen basket
Application: waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of hot sale good quality sand filter continuous slot wedge wire screen basket

support bar and profile wire(wrap wire),the support bar can be circle and wedge triangle wire or trapezoidal wire (v type silk), the profile wire are wedge wire, It’s gap precision, demedium performance is good and durable, Has the durable structure, high efficiency, high ventilation cooling effect, high temperature resistant, corrosion resistance, mechanical capacity is good, long service life, safe and reliable.

Applications for hot sale sand filter continuous slot wedge wire screen basket:

This product can be widely used in mining, coal, petroleum, fertilizer, grain, salt industry, environment protection, etc. Sieving liquid, powder and other materials. Petroleum, chemical industry, metallurgy, mining, pharmaceutical purification, drilling liquid purification and other industries use.

Features for hot sale sand filter continuous slot wedge wire screen basket:

1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2) Low cost operation:Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water levels down, thus to save energy consumption.

3) Reduce the abrasion of the pump:Under the same condition, high open area can make the speed of groundwaters entering into the screen much slower than any other filtration apparatus, which will avoid sands entering into screen because of high pressure, thus reduce the abrasion of the pump.

4) Extend the life span of wells:Comparatively, groundwaters entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.

Technique for hot sale good quality sand filter continuous slot wedge wire screen basket:

Wedge Wire Mesh Screens provide a unique combination of the most important features required for maximum screening efficien-cy. The product is custom designed to suit the specific requirements of the customer and to enable a relatively low cost and high performance solution for the screening application. The high open area of the Wedge Wire screen provides excellent capacity. Wedge Wire screen offers continuous slot openings that widen inwardly so that particles tend to pass through the screen.

hot sale good quality sand filter continuous slot wedge wire screen basket

Specifications of hot sale good quality sand filter continuous slot wedge wire screen basket:

hot sale good quality sand filter continuous slot wedge wire screen basket


Model
diameter (mm)
angle (°)
slot (mm)
WZ-1200
1300
20
0.3,0.4,0.5
H-900
900
15
0.3,0.4,0.5
H-1000
1000
15
0.3,0.4,0.5
HSG-1100
1100
13
0.35,0.4
HSG-1200
1200
13
0.3,0.4,0.5
HSG-1300 HES1300
1300
13
0.3,0.4,0.5

HSG-1400  HSG-1500

1500
13
0.45,0.5

Packaging and Transportation of hot sale good quality sand filter continuous slot wedge wire screen basket:

hot sale good quality sand filter continuous slot wedge wire screen basket
