Wrought Stainless Steel Rod Based Wedge Wire Screens

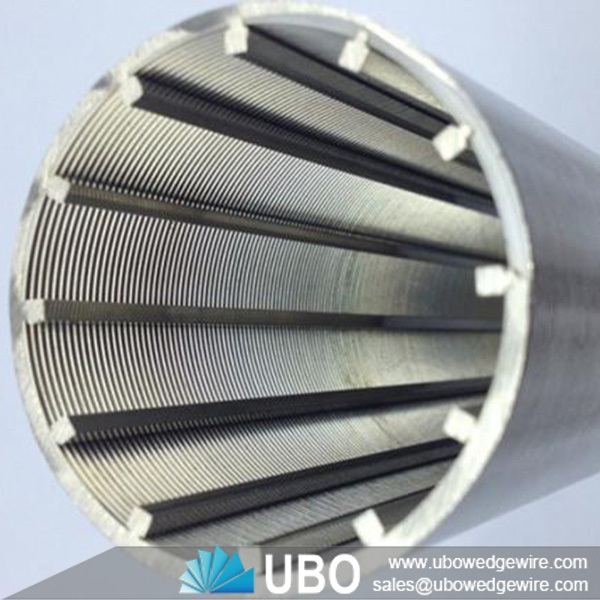

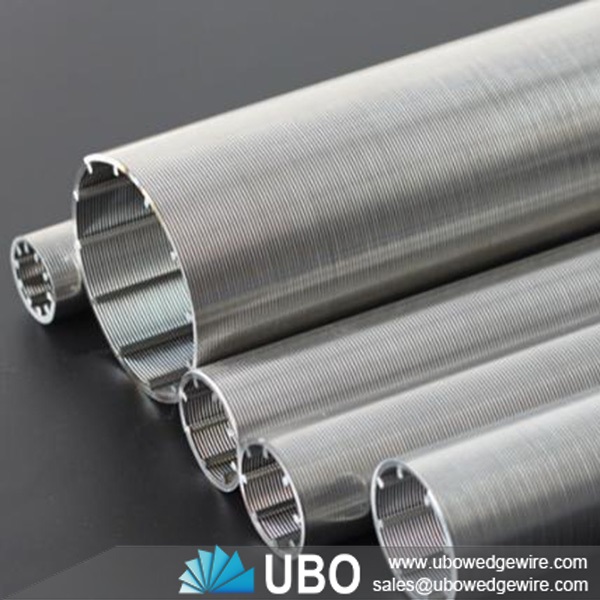

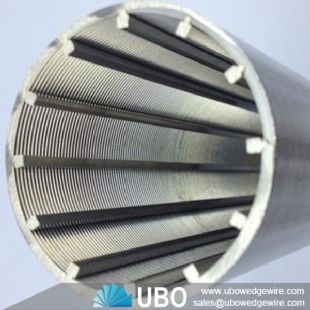

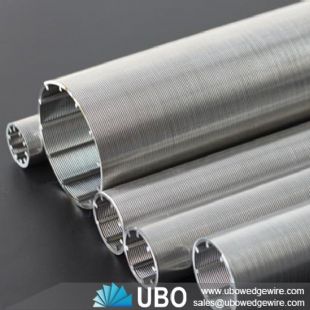

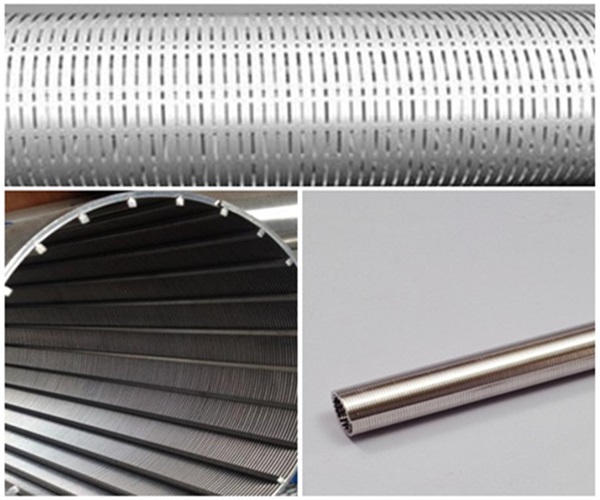

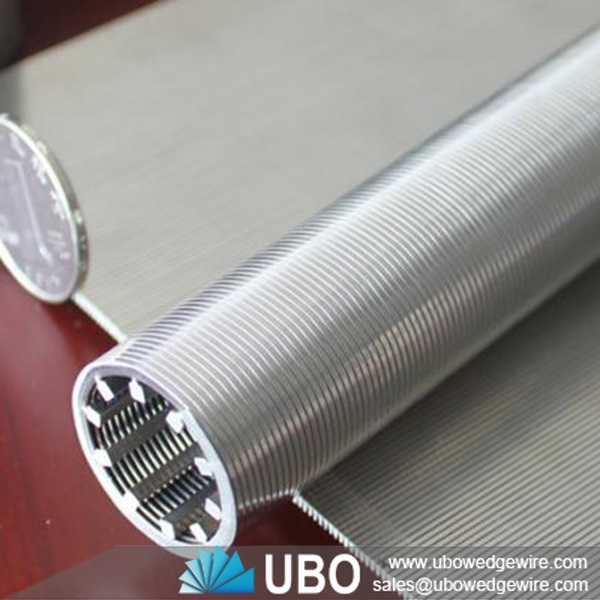

     Wrought Stainless Steel Rod Based Wedge Wire Screens is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). It has a structure and high open area, as well as accurate slot dimension.

Application Wrought Stainless Steel Rod Based Wedge Wire Screens:

Application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Features for Wrought Stainless Steel Rod Based Wedge Wire Screens:

1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.
4.Extend the life span of well.

Advantage for Wrought Stainless Steel Rod Based Wedge Wire Screens:

1. A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone
2. A V-shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3. A uniform and efficient well development due to the continuous slot opening.
4. Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5. Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
                                                  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod): Width(mm): 2.30 3.00 3.30 3.70
                                                  Height(mm): 2.70 3.60 4.70 5.60 6.30
                                                  Round: From 2.50mm to 6.0mm
Slot size: 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material: galvanized low carton (LCG), stainless steel (304,316 etc.)
Length ;up to 6 meters.
Diameter :from 25mm to 1200mm.
End connection :Plain beveled ends, flanged or threaded couplings

Note: other specifications available as per request
