Wedge wire screen Slot and V-Wire Wrap Water Well Screen

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:stainless steel wire mesh
Application:sewage treatment, laundry wash water clean-up, poultry, fish, fruit and vegetable wastewater processing

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire screen Slot and V-Wire Wrap Water Well Screen

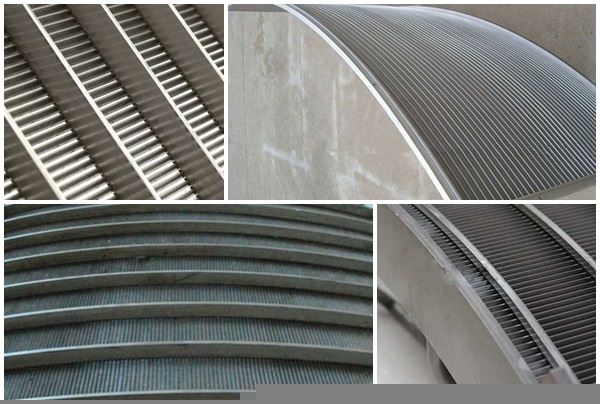

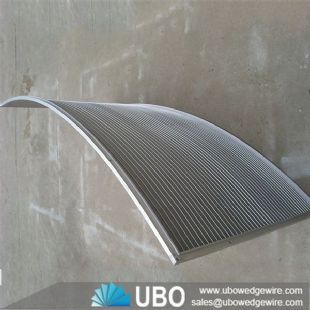

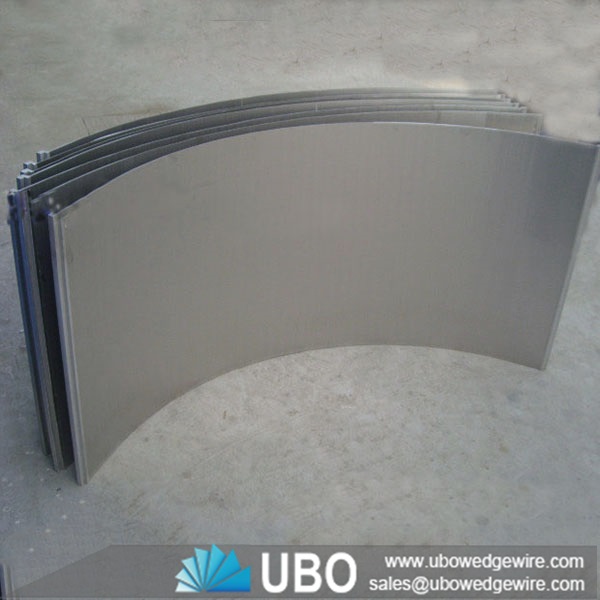

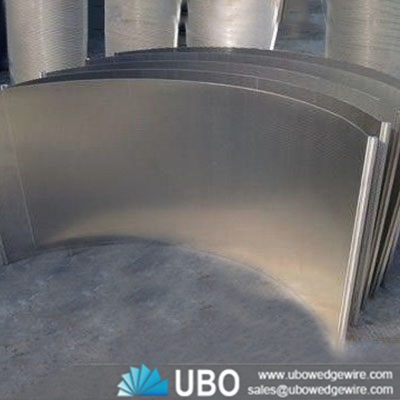

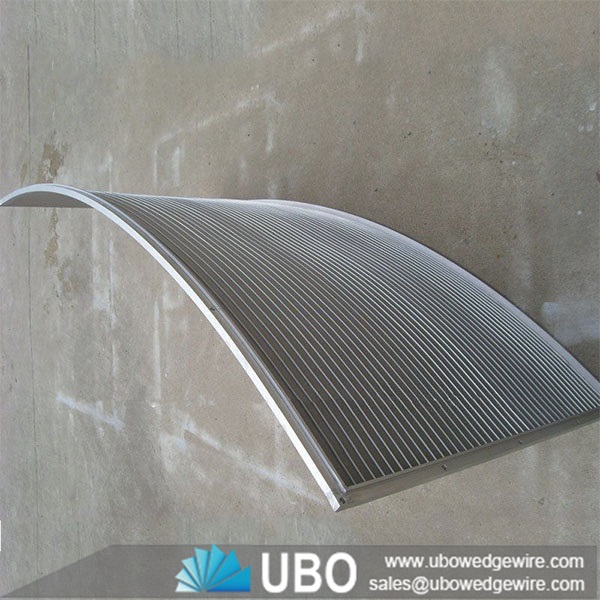

A sieve bend screen consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

Usage for V Wire Wrap Water Well Screen:

Typical uses are sewage treatment, laundry wash water clean-up, poultry, fish, fruit and vegetable wastewater processing, minerals processing, coal preparation, paper production, textile plants, and many more.

Characteristics for V Wire Wrap Water Well Screen:

The benefit of wedge wire screen is more open area, have very precise openings ,maximum design flexibility, stronger and more durable, economical ,easier installation and long-term operating etc.

Advantages for V Wire Wrap Water Well Screen:

•  Energy efficient--operate with no moving parts and with no energy input

•  Space effficient-- treats up to 122 liters per second per square meter of floor space

•  Quite operation--no moving parts mean no mechanical or electrial vibrations

•  Accurate size-- can be used for sizing solid particles down to 0.2mm

Wedge wire screen Slot and V-Wire Wrap Water Well Screen

Specifications of Wedge wire screen Slot and V-Wire Wrap Water Well Screen:

Wedge wire screen Slot and V-Wire Wrap Water Well Screen  Wedge wire screen Slot and V-Wire Wrap Water Well Screen



Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50

Packaging and Transportation of Wedge wire screen Slot and V-Wire Wrap Water Well Screen:

1) Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)

2) We have a very trust forwarding company cooperate for long time and establish a solid partnership,of course,you can also arrange forward to take products from our factory.
