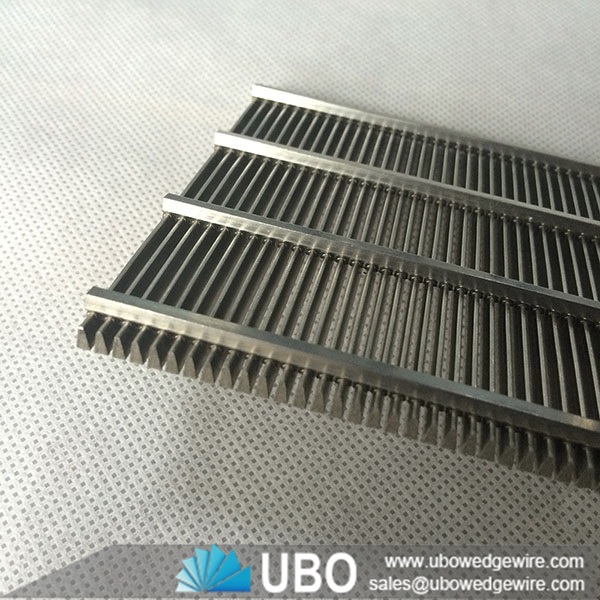

Wedge wire screen Slot and V-Wire Wrap Screen

More Views

Wedge wire screen Slot and V-Wire Wrap ScreenWedge wire screen Slot and V-Wire Wrap ScreenWedge wire screen Slot and V-Wire Wrap Screen

Wedge wire screen Slot and V-Wire Wrap Screen

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:stainless steel wire mesh
Application:Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire screen Slot and V-Wire Wrap Screen

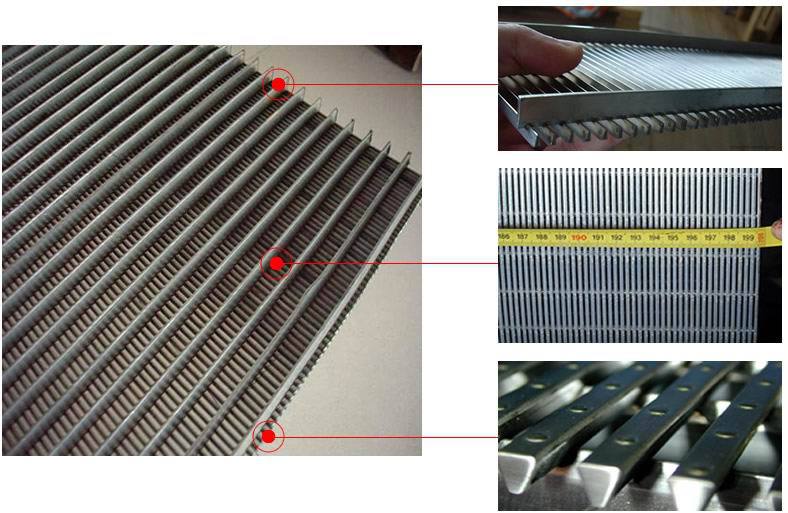

Welded V-Wire flat screen panel have a high open area by comparison with woven wire screen media. Supplied in mainly flat forms or curved panel forms. High opening screen gives lower entrance velocities and higher flow rates through the screen. In the case of pump in-taking screens, pumping costs are lower.

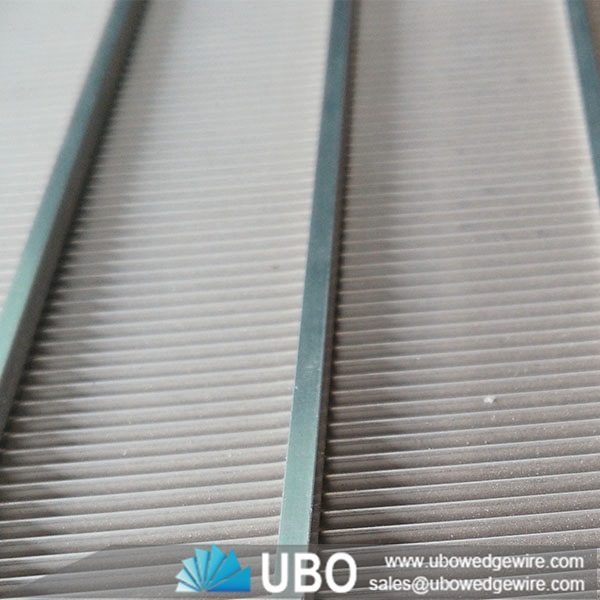

Wedge wire screen Slot and V-Wire Wrap Screen

Applications for Wedge wire screen Slot and V-Wire Wrap Screen:

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.

Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.

Used for fiber removal in Starch industry.

Features for Wedge wire screen Slot and V-Wire Wrap Screen:

1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2) Low cost operation:Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water levels down, thus to save energy consumption.

3) Reduce the abrasion of the pump:Under the same condition, high open area can make the speed of groundwaters entering into the screen much slower than any other filtration apparatus, which will avoid sands entering into screen because of high pressure, thus reduce the abrasion of the pump.

4) Extend the life span of wells: Comparatively, groundwaters entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.

Flat Welded Screens Standard constructions:

-- A combination of different support profiles and pitches within one flat screen is possible

-- Variable spacing between support wires in one screen

-- Curved screens; curve direction and filtration direction are to be determined by the customer

-- Frames and reinforcements can be designed and calculated on request, provided that we know the temperature, supports and differential pressure

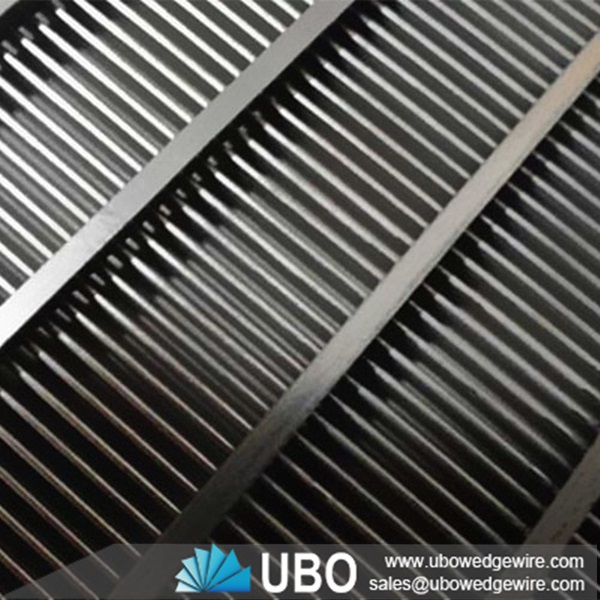

Wedge wire screen Slot and V-Wire Wrap Screen

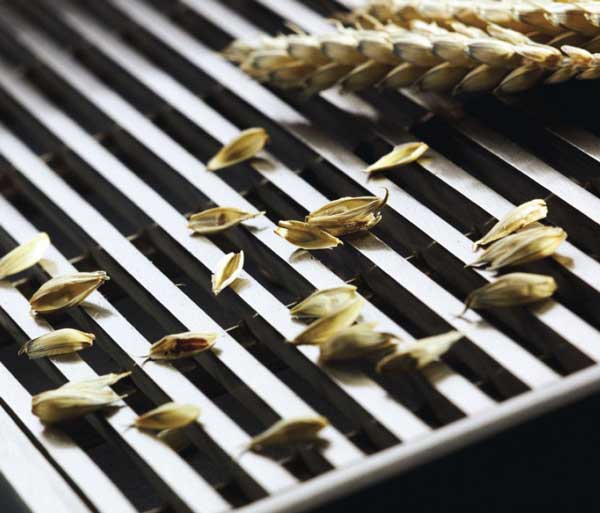

Wedge wire screen Slot and V-Wire Wrap Screen

Specifications of Wedge wire screen Slot and V-Wire Wrap Screen:

Wedge wire screen Slot and V-Wire Wrap Screen



Surface Profile
W
H
Material
10S
0.75
1.425
S304,S316L Hastelloy, Monel alloy of nickel
 and titanium, and other stainless steel
11SL
10.75
1.8
22S
1.8
3.7
4S
0.45
1.2
50SL
3.4
7.5

Packaging and Transportation of Wedge wire screen Slot and V-Wire Wrap Screen:

1) Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
