Wedge Wire Side Hill Screens for Filtration

More Views

Wedge Wire Side Hill Screens for FiltrationWedge Wire Side Hill Screens for FiltrationWedge Wire Side Hill Screens for Filtration

Wedge Wire Side Hill Screens for Filtration

Category:Wedge Wire Application
Material:stainless steel screen
Properties:wedge wire screen
Application: Sugar, Coal Mining & Quarrying, Mineral Processing

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Side Hill Screens for Filtration

wedge wire side hill screens are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.

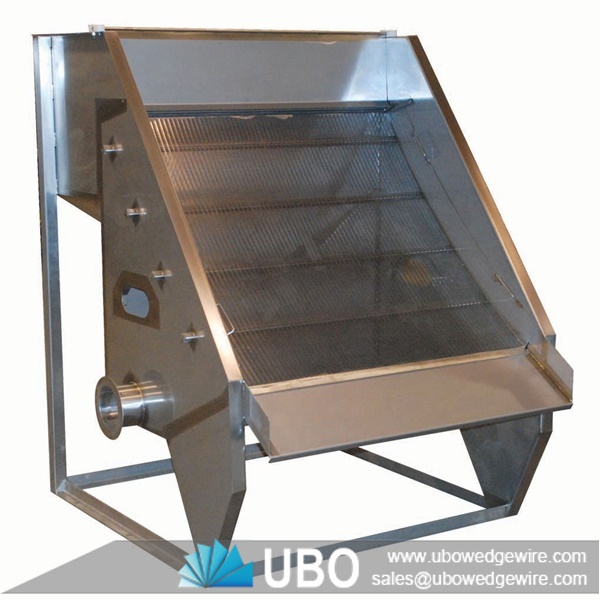

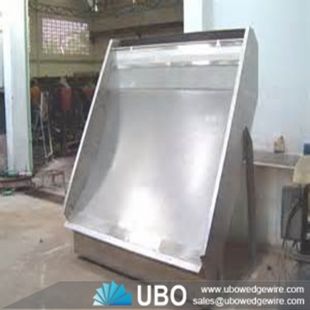

wedge wire side hill screen  consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

Features of Wedge Wire Side Hill Screens for Filtration

Low Headroom - only 1.1 metres (44") tall for the 900mm arc length unit.
Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.

Application of Wedge Wire Side Hill Screens for Filtration

They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry.

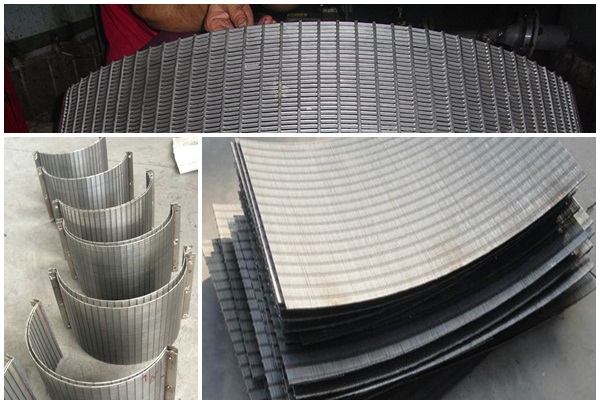

           wedge wire side hill screens for filtration

Specifications of Wedge Wire Side Hill Screens for Filtration:

Mterial"stainless steel

Type:curve screen

Profile Wire Width Relief Angle Typical Support Rod
1/16”  (.063”) 13 degrees Small round rod
3/32”  (.093”) 13 degrees Round or Rectangular bar
1/8” (.125”) 13 or 5 degrees Round or Rectangular bar

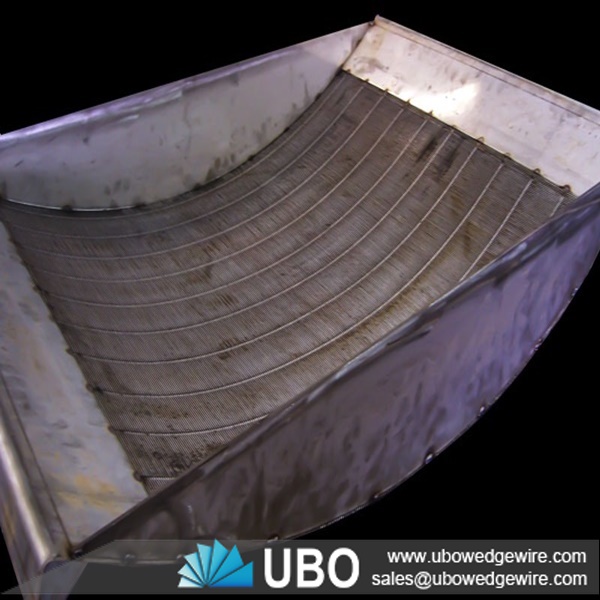

wedge wire side hill screens for filtration

Packaging and Transportation of Wedge Wire Side Hill Screens for Filtration:

Package: in wood case

Delivery Time: 5-25 days
