Wedge Wire Screen Lateral Distributor

More Views

Wedge Wire Screen Lateral DistributorWedge Wire Screen Lateral DistributorWedge Wire Screen Lateral Distributor

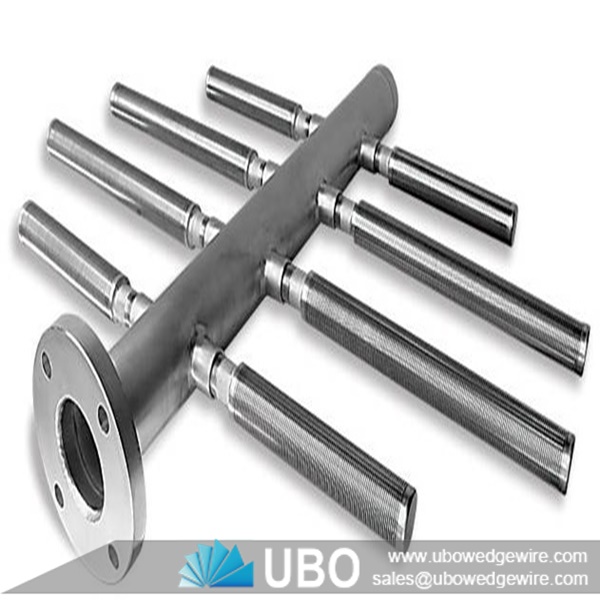

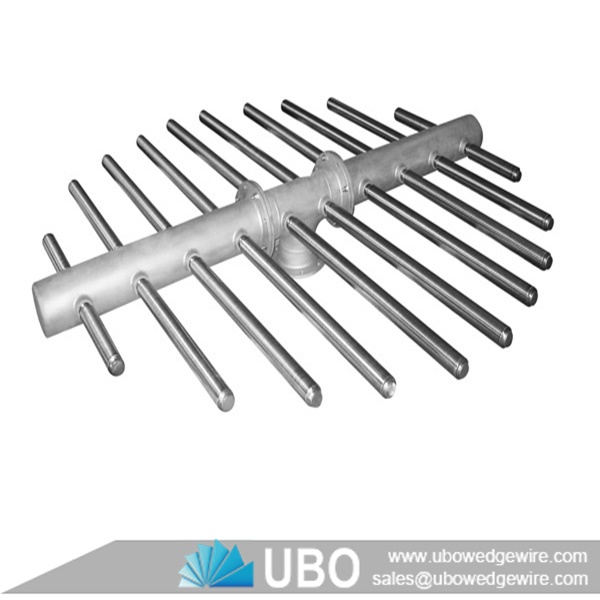

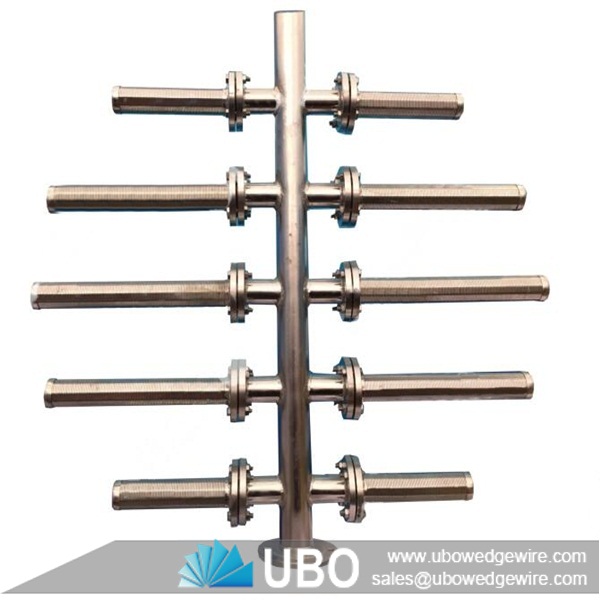

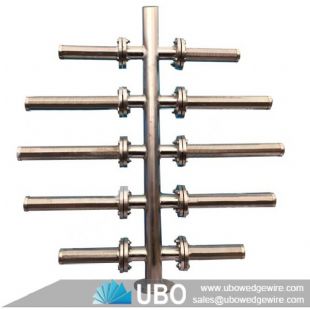

Wedge Wire Screen Lateral Distributor

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen Lateral Distributor

Wedge wire screen lateral distributor can be designed for disc head vessels enabling the system to collect completely to the bottom of the vessel. Wedge wire screen lateral distributor  design is also available for flat bottom vessel distributor or collector applications.


All systems are designed for effective liquid or solid retention in a wide range of applications including ion exchangers, clay and sand filtration applications, carbon towers and power plants with water systems.

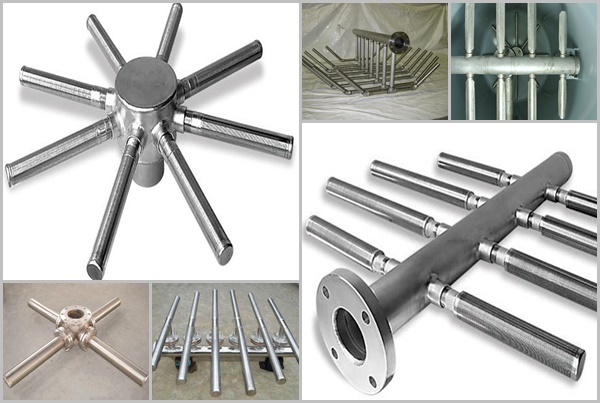

Available as both Header Lateral and Hub lateral assemblies, UBO company  wedge wire screen laterals and pipe based laterals can be connected to headers or hubs by the following methods:

- standard NPT threaded connections

- flanged connections.

- welded as one assembly Laterals are available in all standard pipe and tube outside diameters.

Features of Wedge Wire Screen Lateral Distributor

-- High mechanical strength

-- Freestanding structure

-- Absolute filtration threshold

-- Continuous slots having openings down to 15 μm

-- Increased open surface

-- Anti-clogging surface

Applications of  Wedge Wire Screen Lateral Distributor

-- Industrial softeners and demineralisers

-- Ion exchange for food processing

-- Chemical and pharmaceutical catalytic exchanges

-- Petrochemical processes such as sand and clay filters, MEROX, MTBE etc.

Wedge Wire Screen Lateral Distributor

Specifications of Wedge Wire Screen Lateral Distributor:

The I.D
(mm)
(D)
d
L1
slot
The Qty
of the branch
Protopipe
PNI.ODN
Branch connection size
Flange
Thread
1500
32-89
650-1200
0.2-0.25
6-8
80-125
DN40
G1 1/2
2000
32-89
950-1700
0.2-0.25
6-8
80-125
DN40
G1 1/2
2500
32-89
1150-2200
0.2-0.25
6-8
80-125
DN50
G1 1/2
3000
57-89
1450-2700
0.2-0.25
6-8
100-150
DN80
G2
3200
57-89
1800-3000
0.2-0.25
8-12
100-150
DN80
G2


Material:stainless steel

Conector type:Flange or thread specification

Wedge Wire Screen Lateral Distributor

Packaging and Transportation of Wedge Wire Screen Lateral Distributor:

transportation
