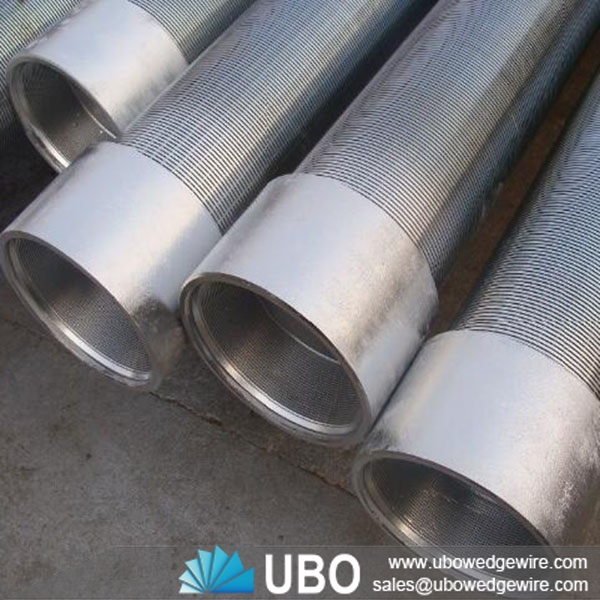

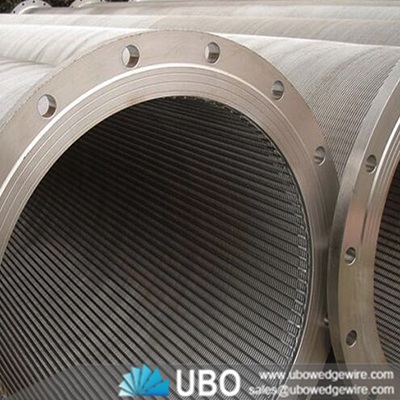

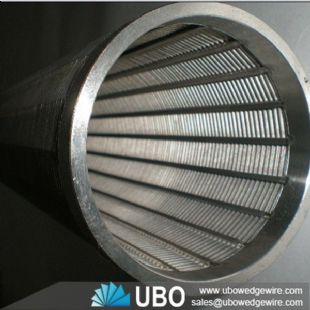

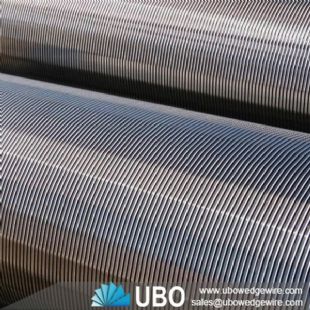

Wedge Wire Filtering Tube for Well Drilling

More Views

Wedge Wire Filtering Tube for Well DrillingWedge Wire Filtering Tube for Well DrillingWedge Wire Filtering Tube for Well Drilling

Wedge Wire Filtering Tube for Well Drilling

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Cylinder
Application: chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Filtering Tube for Well Drilling

Weld wedge wire screen filter tube is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time,water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

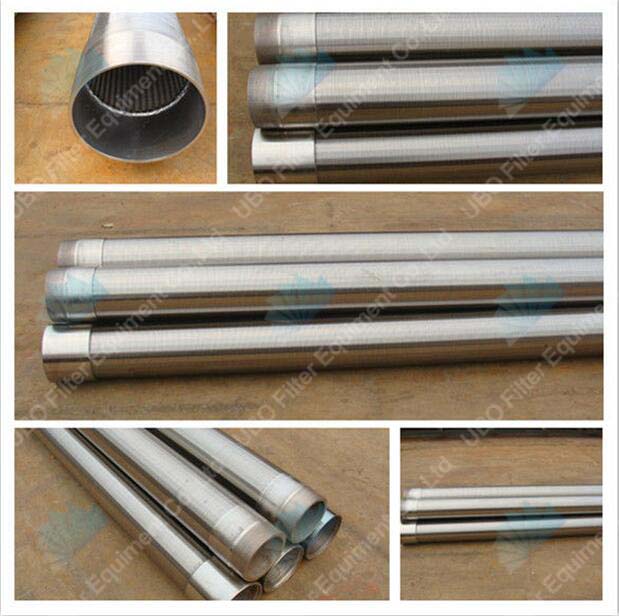

ASTM 304L Wedge wire filtering tube for well drilling

Applications for Wedge Wire Filtering Tube for Well Drilling:

Wedge wire filter cylinder are used in chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage, also can be used in filtration of water treatment. Wedge wire filter cylinder are the most popular mining screen due to its strength.

Features for Wedge Wire Filtering Tube for Well Drilling:

1) contunuous welded integirty at every point of welding.

2) Tight slot control for consistent flow rates.

3) Stringent quantity control measures ensure a qulity product .

4) Welding rings or threaded fittings as per custimer requirements.

5) Multiple wire profile options to suit applications and specification.

Advantage for Wedge Wire Filtering Tube for Well Drilling:

The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

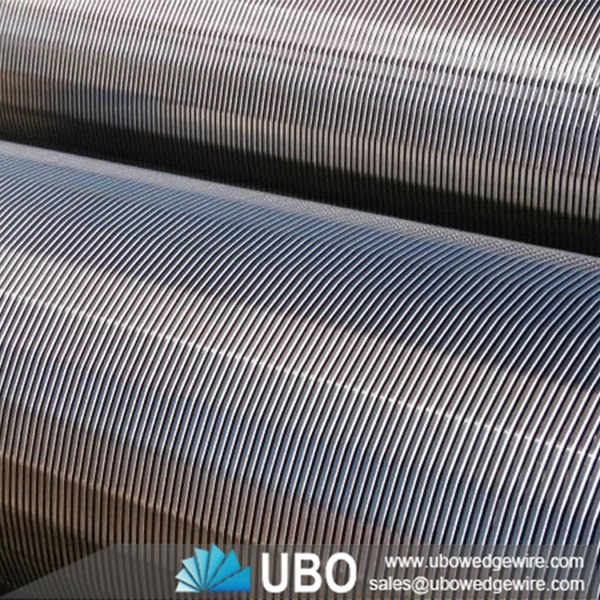

ASTM 304L Wedge wire filtering tube for well drilling

Specifications of Wedge Wire Filtering Tube for Well Drilling:

ASTM 304L Wedge wire filtering tube for well drilling



No.

(mm)TYPE

OD

(mm)

ID

(mm)

Support wire Number

Filter direction

1

SRD 40

40

31

8/10

FOTI/FITO

2

SRD 45

45

36

10/12

FOTI/FITO

3

SRD 48

48

38

12

FOTI/FITO

4

SRD 60

60

51

12

FOTI/FITO

5

SRD 70

70

61

12/18

FOTI/FITO

6

SRD 85

85

76

18

FOTI/FITO

7

SRD 110

110

101

24

FOTI/FITO

8

SRD120

120

111

24

FOTI/FITO



Remarks:
1.   Make high precision wedge wire screen with different material according to user requirements.
2.   high precision wedge wire screen' should be bigger than 0.020mm slot and less that 2500mm long.

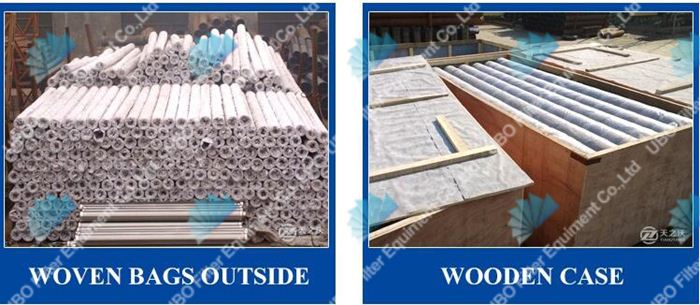

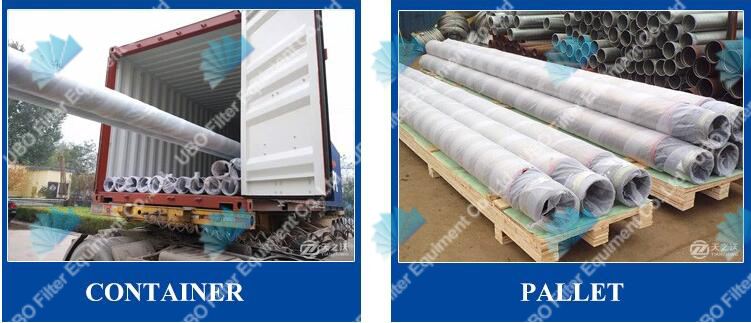

Packaging and Transportation of Wedge Wire Filtering Tube for Well Drilling:



ASTM 304L Wedge wire filtering tube for well drilling



ASTM 304L Wedge wire filtering tube for well drilling
